TTP-246M/344M Bar Code Printer
Service Manual
2. There is a notch near by the platen roller bearing.
3. Insert the peel off roller left side bush to the notch at the middle plate and insert the peel
off roller right side bush to the notch at the right frame. Please refer to the magnified left
and right side bush location for installation.

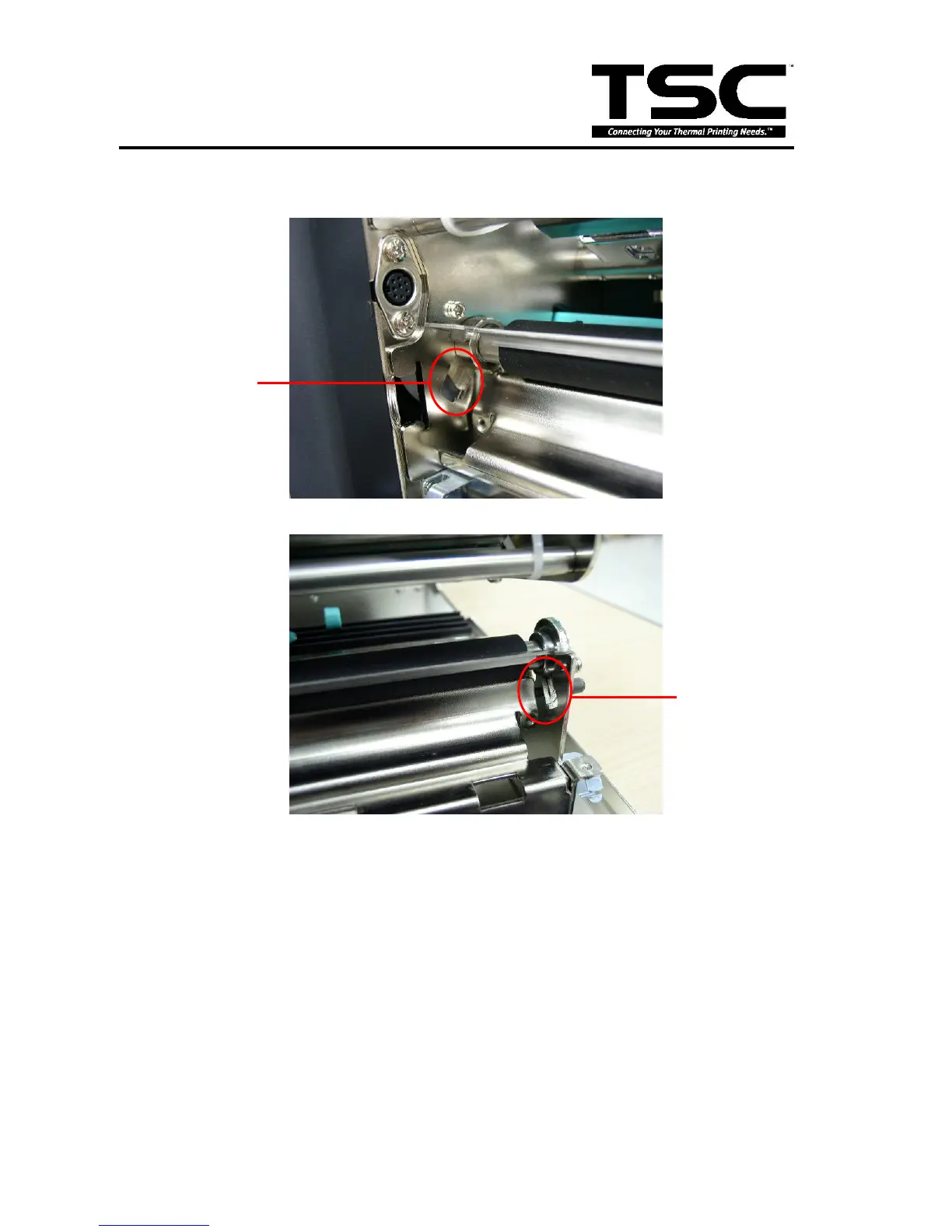

Notch for peel off
roller left side bush
Notch for peel off roller
right side bush
