TSC TTP-247 User Manual

11

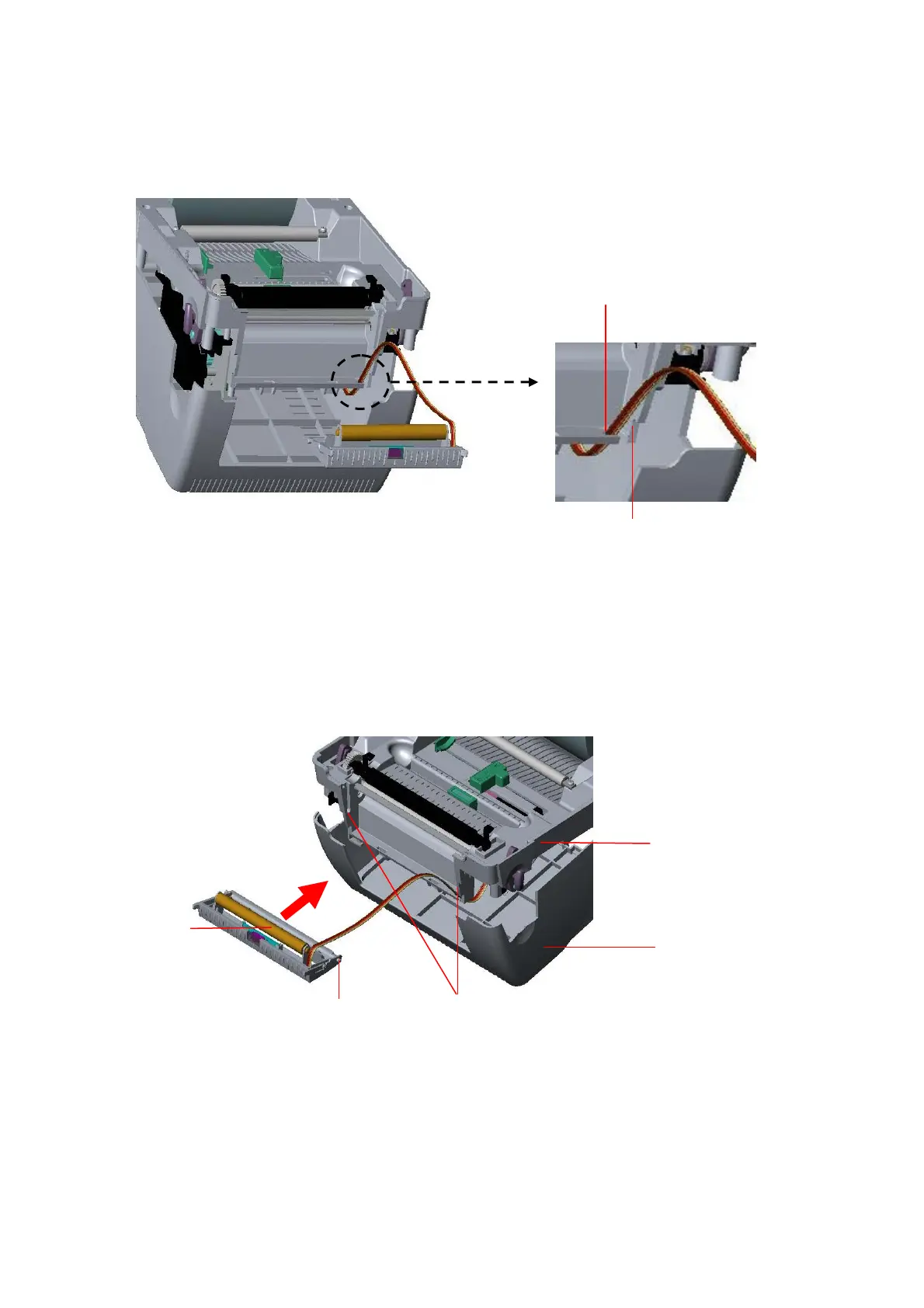

Fig. 14 Connect peel-off sensor cable to main board
Fig. 15 Peel-off sensor cable installation
7. Insert the peel-off tenons into the lower inner cover mortises until tenons snap
into places.
Fig. 16 Peel-off panel installation (I)
8. Arrange the lower inner cover back to the lower cover.
Roller
Tenon
Mortise
Lower Inner Cover
Lower Cover
Bezel
Mortise

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
