TSC TTP-247 User Manual

13
4. Open the peel-off panel by pulling it out.

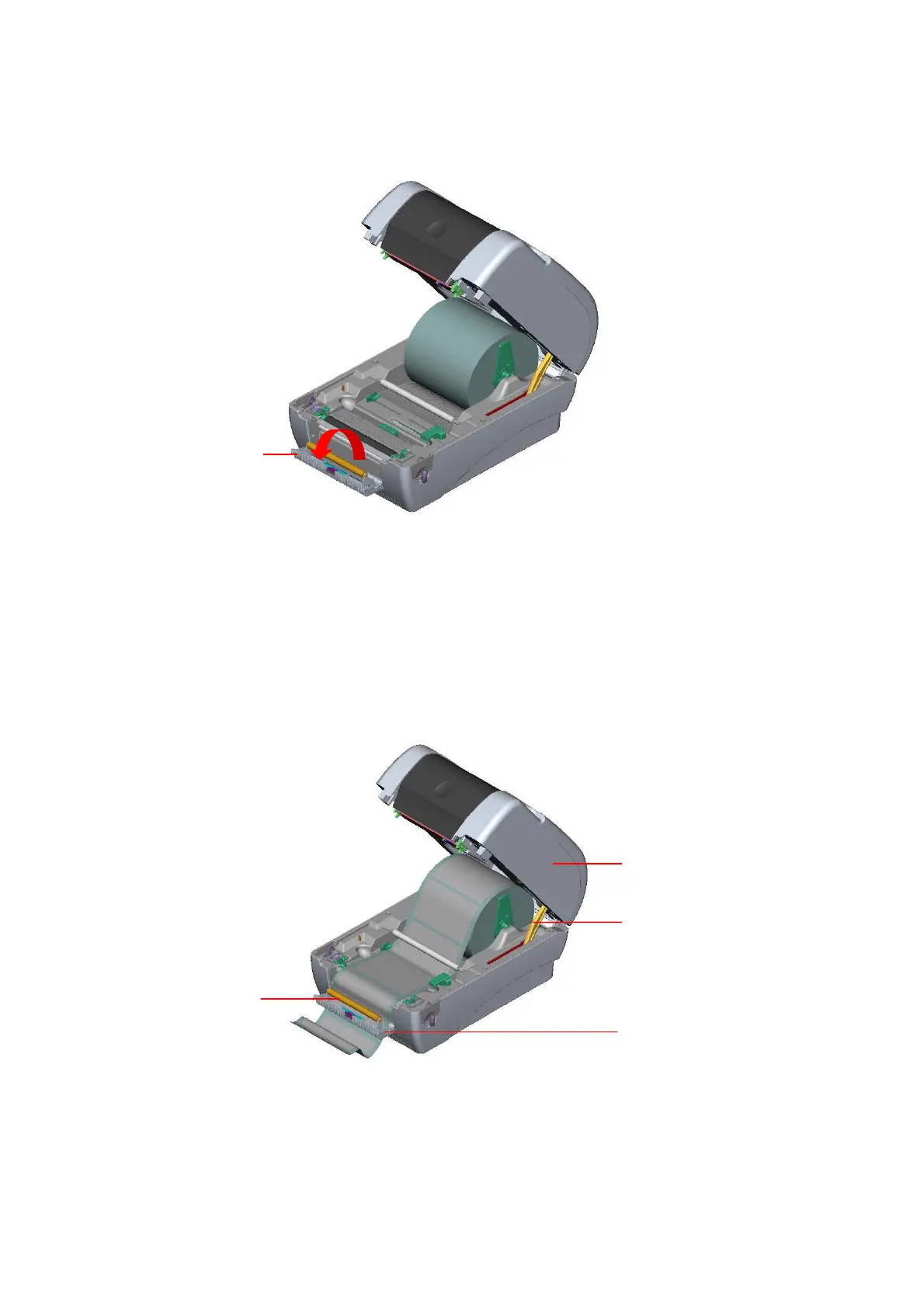

Fig. 19 Open the peel-off panel
5. Feed the paper, printing side facing up, through the paper guide and pass over
the platen.
6. Lead the paper through the backing paper opening, beneath the roller, and tear
off one piece of the label.
7. Adjust the paper guide by removing left or right to fit the paper width.
Fig. 20 Lead the paper through the backing paper opening, beneath the
roller
8. Push the peel-off panel back to the printer.
Peel-off
panel
Roller
Top Cover
Top Cover Support
Peel-off panel

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
