TSC TTP-286MT Series Service Manual

19
19

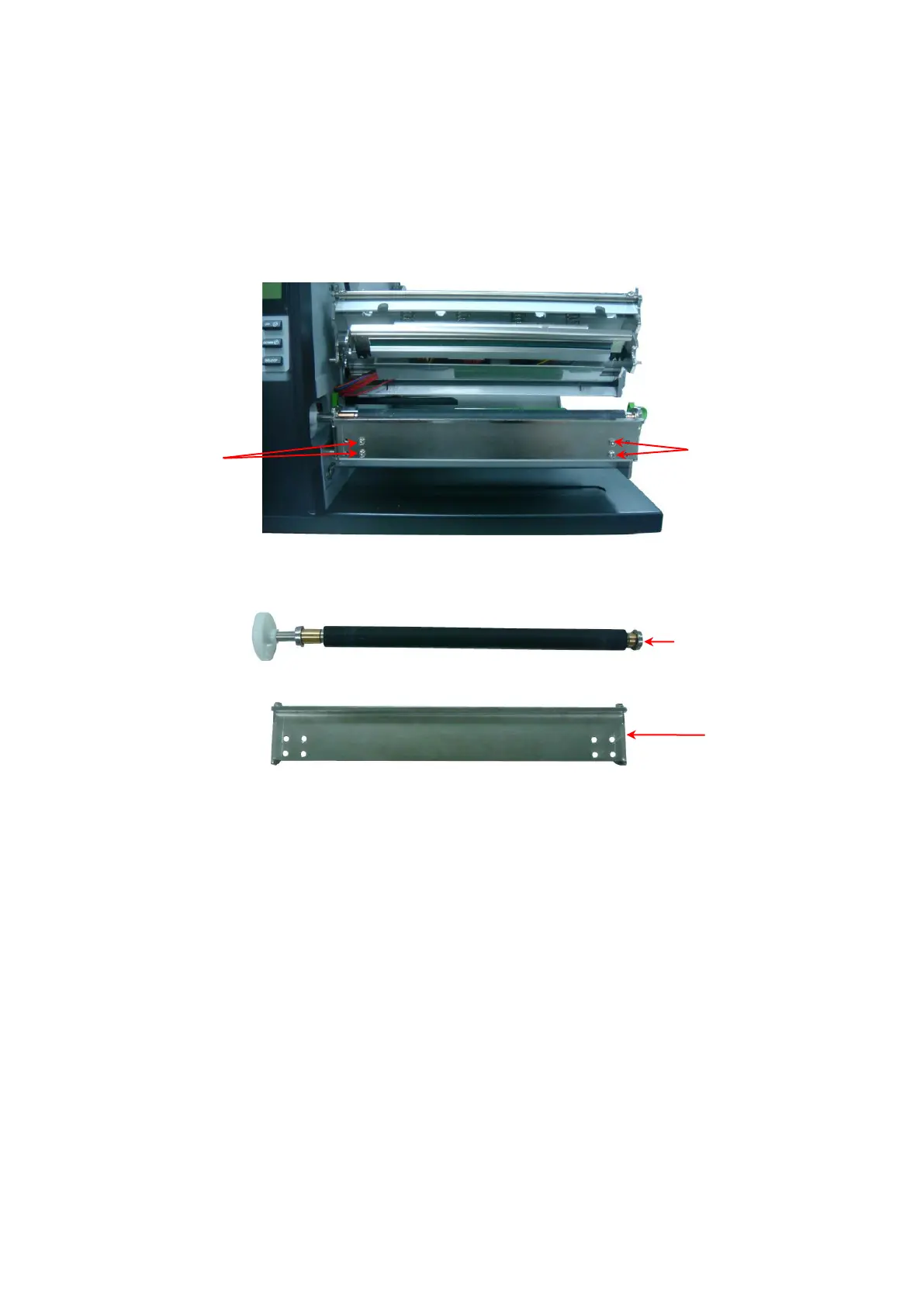

3.6 Replacing the Platen Roller Assembly
1. Open printer right side cover.
2. Disengage print head lift lever.
3. Remove the cutter module or lower front panel.
4. Remove 4 screws from the platen holder.
5. Take out the platen holder, platen roller assembly and replace a new platen roller
assembly.
6. Reassemble the parts in the reverse procedures.
Screws
Platen roller assembly
Holder
Screws
