20
20

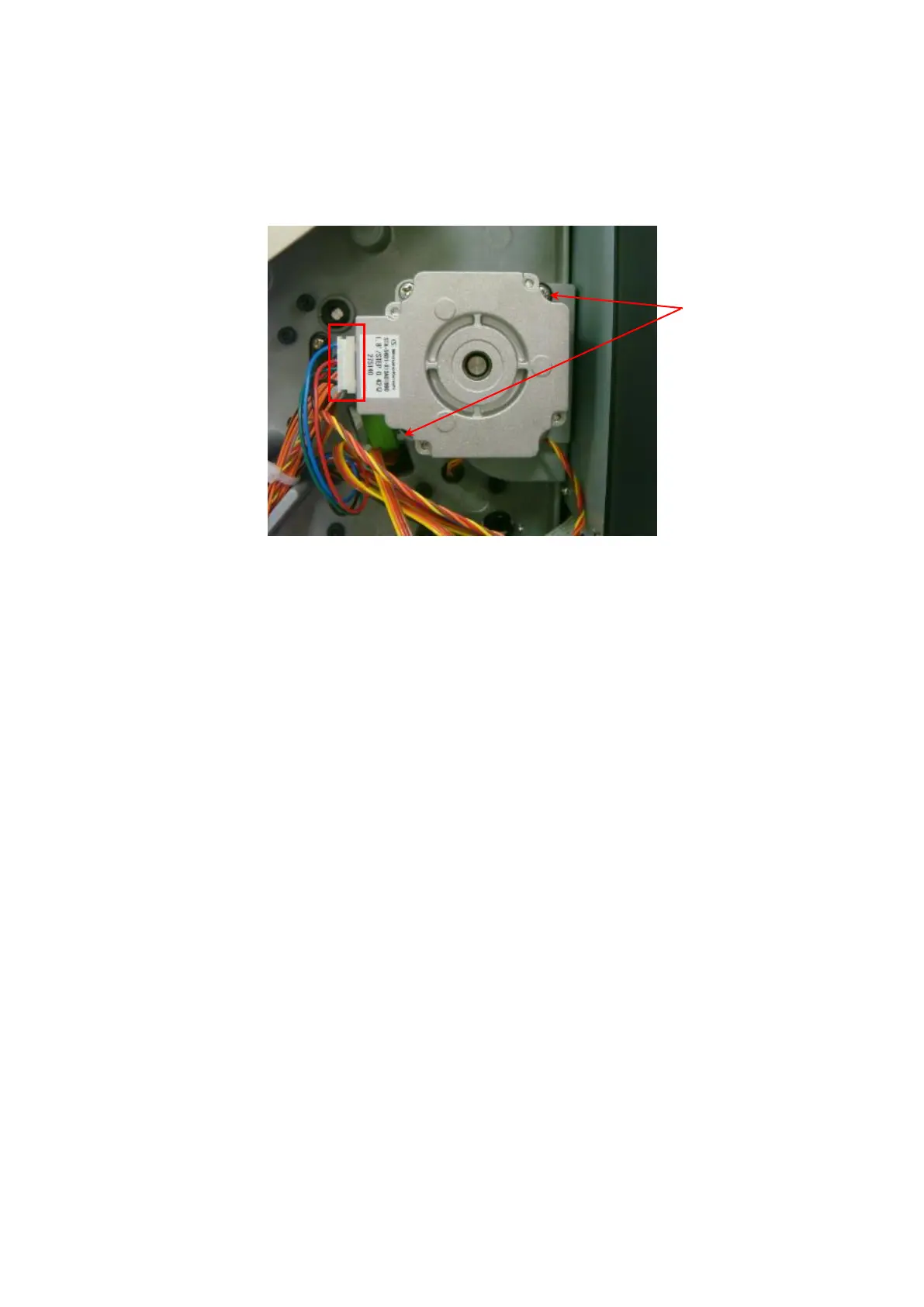

3.7 Replacing the Stepping Motor
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect the stepping motor connector. Remove 2 screws on the stepping motor.
3. Replace the stepping motor.
4. Reassemble the parts in the reverse procedures.
Screws
