22
22

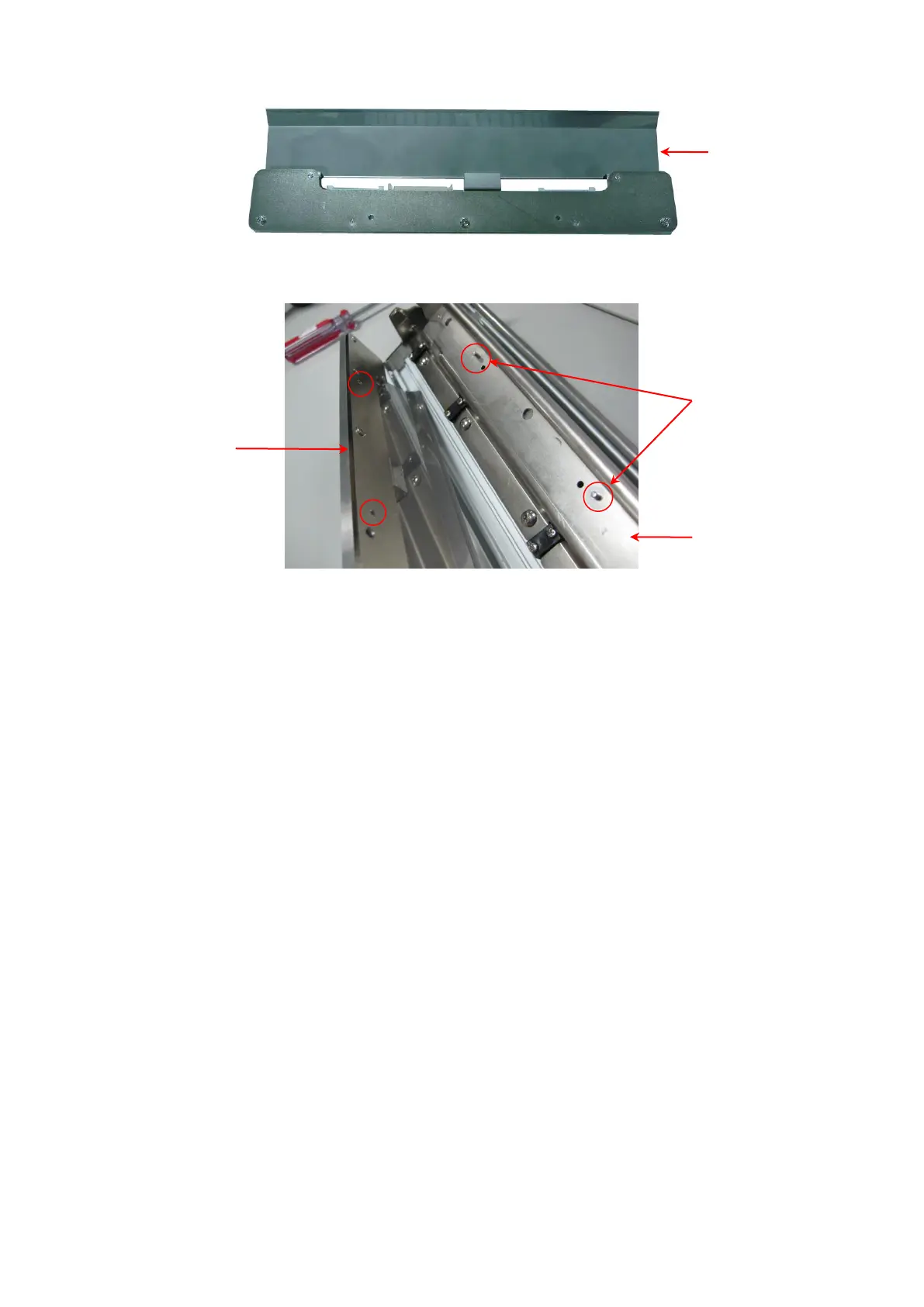

6. Connect the printhead cable and carefully slide assembly into the print mechanism. The
holes of printhead assembly must align and then insert the tenons of print mechanism.
7. Reassemble the parts in the reverse procedures.
Printhead
ASS'Y
Printhead
ASS'Y
Tenons
Print mechanism
