TSC TTP-368MT Series User Manual

- 25 -
4. Adjustment Knob

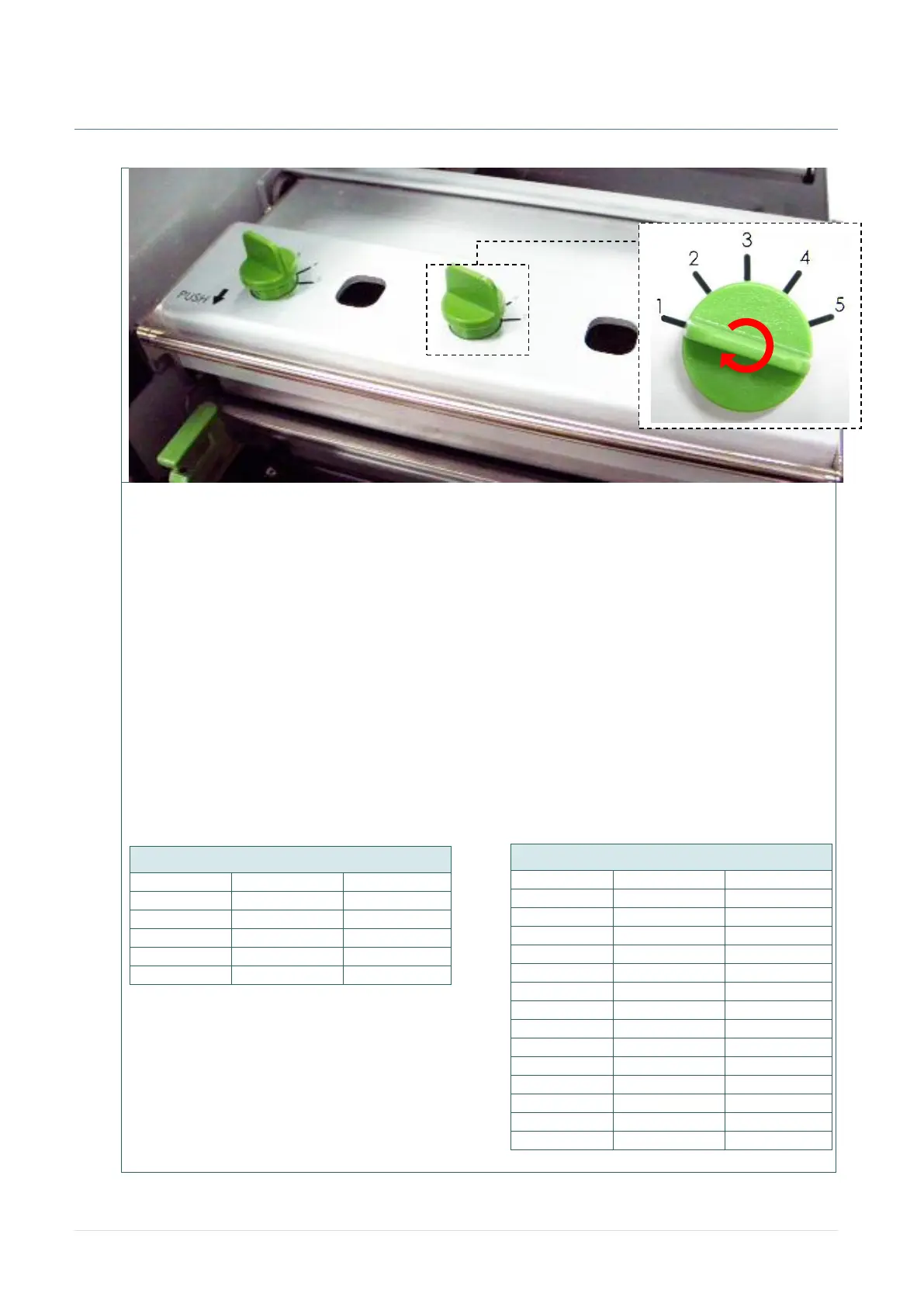

4.1 Print Head Pressure Adjustment knob
There are two conditions that will need to adjust the print head pressure.
1. Print with thick media
If media thickness is larger than 0.19 mm, the larger pressure is required to get good quality
printout.
2. Edge alignment media
The media alignment is designed at the left edge of mechanism to keep the pressure
balance between print head, media and ribbon.
There are 5 levels of pressure for adjustment. Level 1 is the minimum pressure and level 5 is the
maximum pressure.
For example, if the label width is 6”, adjust both print head pressure adjustment knobs to the same
level. If the label is less than 2” wide, increase the left side print head pressure by rotating the
adjustment knob clockwise and decrease the right side pressure by rotating the adjustment knob
counter-clockwise to level 1. If the left side print head adjustment knob setting has been set to 5 (the
highest pressure index) than increase the middle print head pressure.
Please refer to the following pressure knob adjustment recommendation.
6” width label
Left index
Middle index
Right index
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
2” width label
Left index
Middle index
Right index
2
1
1
3
1
1
4
1
1
5
1
1
2
2
1
3
2
1
3
3
1
4
2
1
4
3
1
4
4
1
5
2
1
5
3
1
5
4
1
5
5
1
