Adjust the print head pressure adjustment knob
The print head pressure adjustment knob has 5
levels of settings. Clockwise direction adjustment
is to increase the print head pressure. Counter
Clockwise adjustment can decrease the print
head pressure.
If the wrinkle on the label starts from the lower
left side to upper right side, please do following
adjustment.
1. Decrease the right side print head pressure
adjustment knob setting 1 level per each
adjustment then print the label again to check
if wrinkle is gone.
2. If the right side print head adjustment knob
setting has been set to index 1 (the lowest
pressure index), please increase the left side
print head pressure.
3. If the left side print head adjustment knob
setting has been set to 5 (the highest pressure
index) the wrinkle can’t be avoided, please
increase the middle print head pressure knob.
4. If the wrinkle can’t be avoided, please contact
the Customer Service Department of your
purchased reseller or distributor for service.
Pressure knob adjustment reference:
 6” label
Left index
Middle index
Right index
2
1
1
3
1
1
4
1
1
5
1
1
5
2
1
5
3
1
5
4
1
5
5
1
 3” label
Left index
Middle index
Right index
2
2
1
3
3
1
4
4
1
5
5
1
Adjust the print head pressure adjustment knob
The print head pressure adjustment knob has 5
levels of settings. Clockwise direction adjustment
is to increase the print head pressure. Counter
Clockwise adjustment can decrease the print
head pressure.
If the wrinkle on the label starts from the lower
right side to upper left side, please do following
adjustment.
1. Decrease the left side print head pressure
adjustment knob setting 1 level per each
adjustment then print the label again to check
if wrinkle is gone.
2. If the left side print head adjustment knob level
has been set to index 1 (the lowest index),
please increase the right side print head
pressure.
3. If the right side print head adjustment knob
setting has been set to 5 (the highest pressure
index) the wrinkle can’t be avoid, please
increase the middle print head pressure knob.
4. If the wrinkle can’t be avoided, please contact
the Customer Service Department of your
purchased reseller or distributor for service.
Pressure knob adjustment reference:
 6” label
Left index
Middle index
Right index
1
1
2
1
1
3
1
1
4
1
1
5
1
2
5
1
3
5
1
4
5
1
5
5
 3” label
Left index
Middle index
Right index
1
2
2
1
3
3
1
4
4
1
5
5

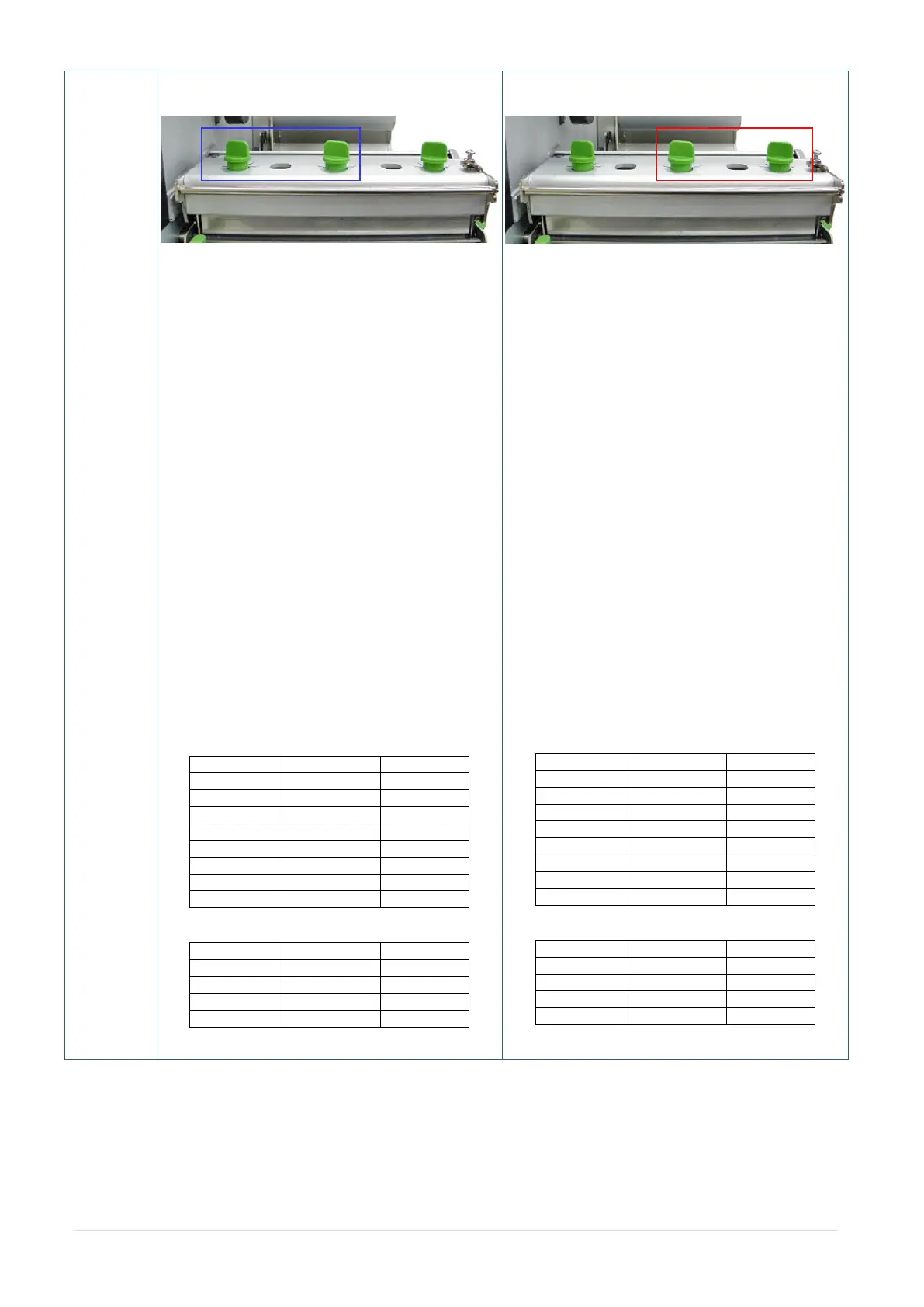

Left knob
Right knob
Middle knob
Middle knob
