APPENDIX  REPLACING OVEN COMPONENTS
A5
Figure
Reference #
Item Description Item Part Number Fastener Description
Fastener Part
Number(s)
1 Blower Motor, Bottom
i3-3209-2 (SOTA/SBK)
i3-3209-4 (STAINLESS)
Nut, 1/4 - 20, Serr Hex Flange, Plated 100906 (qty 4)
2 Blower Motor, Top
i3-3209-1 (SOTA/SBK)
i3-3209-3 (STAINLESS)
Nut, 1/4 - 20, Serr Hex Flange, Plated 100906 (qty 4)
3 Cable, Ethernet, Ext, 4’ Cat-6 100164 Screw, #4-40 x .25, PPH Sems Int Tooth, SS 101520 (qty 2)
4 Catalytic Converter i1-9066 None None
5
Cooling Fan, Sides:
- NGO/Sota x2
- Single Magnetron Sota x1
100516 Screw, #10 x 1/2, PPHD, Type F 101694 (qty 4 each)
6
Cooling Fan, Lower-Back Cover
(not shown)
100757 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 4)
7 Cooling Fan, Underneath Oven 100757 Screw, #10 x 1/2, PPHD, Type F 101694 (qty 4)
8 Cooling Fan, Upper-Back Cover (x3) 100516 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 4)
9
Cooling Fan Finger Guard (x6)
(not shown)
100087 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
10 Heater (x2) i1-9411 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2 each)
11 Heater Plate i3-9565 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 10)
12 Kit, Stirrer Shaft i1-3214 Included Included
13 RTD, Cook Cavity, 3” HHC-6517-2 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
14 Speaker CON-3003 Screw, #8-32 x 3/8, PPHD, Int Sems, SS 102921
15 Spring, Door, Replacement Kit i1-3213 Included Included
16 Stirrer Coupling Hub 104132 Set Screw (Provided) N/A
17 Stirrer Motor 100884 Screw, M4 x 0.7 x 8, PPHD, Int Tooth, SS 101672 (qty 2)
18 Stirrer Motor Bracket i1-9075 Nut, #10-32, Serr Hex Flange, Zinc 100913 (qty 3)
19 Thermostat, High-Limit, 300°C 102075 Screw, M4 x 0.7 x 8, PPHD, Int Tooth, SS 101672 (qty 2)

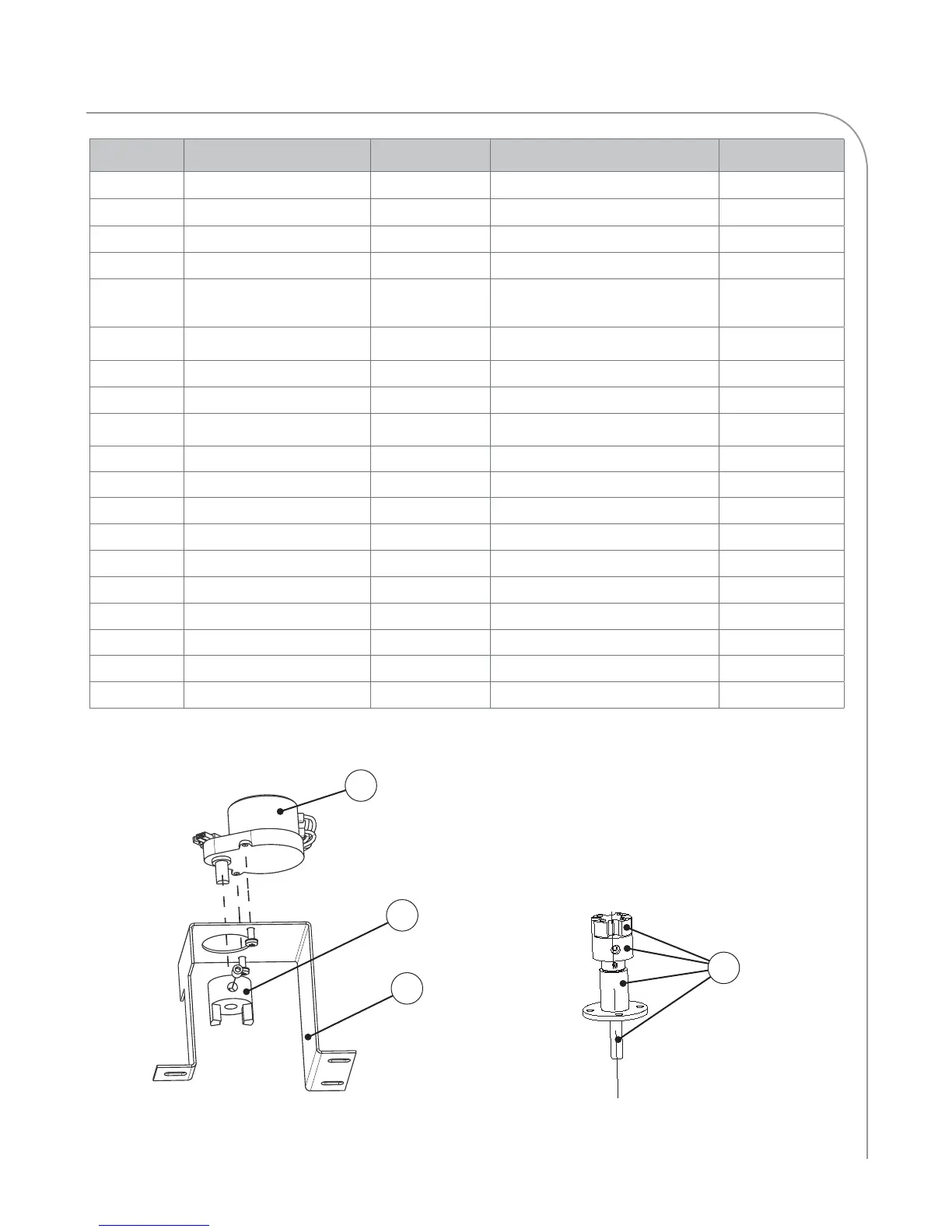

Figure A-7: Stirrer Motor Detail
18
17
16
Figure A-8: Stirrer Shaft Detail
12
