TurboChef NGO User Manual

APPENDIX  REPLACING OVEN COMPONENTSA-12
Figure
Reference #
Item Description Item Part Number Fastener Description
Fastener Part
Number(s)
1 Capacitor, High-Voltage
100216 (Japan 50 Hz)
ENC-3010-2 (Japan 60 Hz)
ENC-3010-1 (All others)
Screw, #6-32 x 3/8, Int Tooth, PPH, SS
Nut, #6-32 Keps, Ext Tooth, SS
102911
102961
2 Capacitor Clamp
104197 (Japan 60 Hz)
100134 (All others)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
3 Diode, High-Voltage 100481 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
4 Duct, Magnetron Cooling Fan, L* i1-9479 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
5 Jumper, Capacitor (Intl 50 Hz only) i5-9378 None None
6 Magnetron NGC-3015 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
7 Power Cord Contact factory None None
8 Terminal Block 102049 (1 Ph) Screw, #10-32 x 3/4 Lg, PPH Sems, Int Tooth 102937 (qty 2)
9 Thermostat, Magnetron, 270°F (x2) 104228 Screw, Sh Mtl, Drill Point, 6-32 x 3/8, PPHD, Zinc 101684 (qty 2)
10 Transformer, Filament
NGC-3061-1 (USA)
NGC-3061-2 (Intl)
NGC-3061-3 (Japan)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
11 Transformer, High-Voltage
NGC-3062-1 (USA)
NGC-3062-2 (Intl)
NGC-3062-3 (Japan)
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
12
Wire Harness, Line Voltage
(not shown)
i1-9172 (1 Ph) None None
13
Wire Harness, Cooling Fans
(not shown)
i1-9174 None None
14
Wire Harness, Heaters
(not shown)
i1-9239 None None
15
Wire Harness, Transformers
(not shown)
i1-9173 None None
Replacing Items - Removing Outer
Shell and Back Cover Required,
Single Magnetron Sota (Figure A-18)
DANGER: Before replacing any oven
component, ensure the oven is removed
from any power source. Replacing a
component while the oven is plugged
in can result in serious injury or death.
CAUTION: Be careful to not tear the
insulation when servicing components.
Always reinstall the insulation properly
before reinstalling the outer shell or
back cover.
NOTE: Fasteners listed are required for install-
ing component to oven.

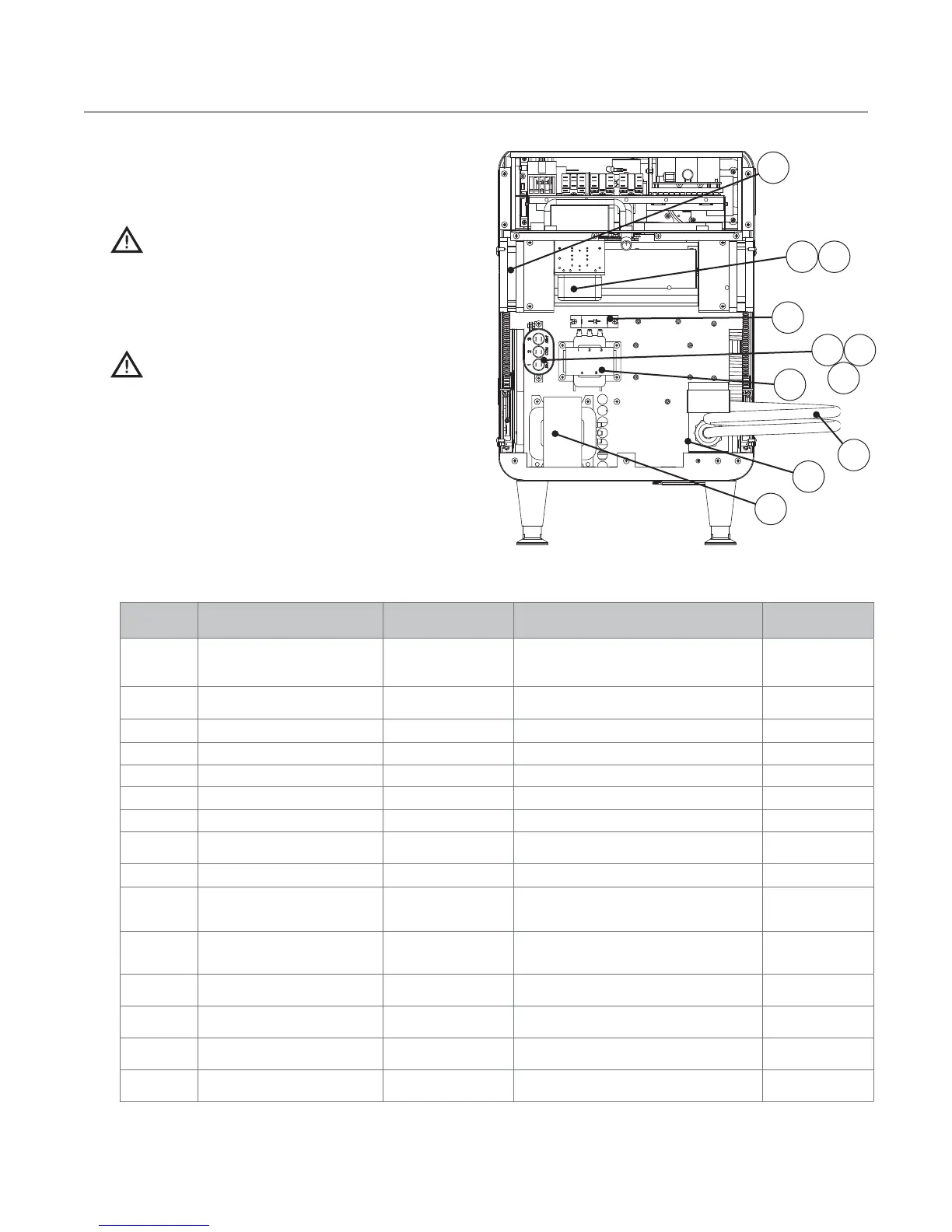

Figure A-18: Outer Shell and Back Cover Removed
Single Magnetron Sota
3
10
11
7
2
1
9
6
* NOTE: Left and right orientation based on looking at the back of the oven.
4
8
5

TurboChef NGO Specifications

General

Model	NGO
Brand	TurboChef
Category	Oven
Exterior Finish	Stainless Steel
Plug	NEMA 6-30P
Power Requirements	208/240V, 30A, 1 Phase
Controls	Touchscreen
Catalytic Converter	Included
Power Supply	Electrical
Ventilation Requirements	Ventless operation with catalytic converter
