APPENDIX REPLACING OVEN COMPONENTSA-8
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number(s)
1 Kit, Door Switch, Primary* NGC-3033* Included Included
2 Hinge, LHS i1-3220-1 Screw, #8-32 x 5/8, PFH, 100 Deg, SS 102811 (qty 3)
3 Hinge, RHS i1-3220-2 Screw, #8-32 x 5/8, PFH, 100 Deg, SS 102811 (qty 3)
4 Interlock Switch (Monitor) 102013 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)
5 Interlock Switch (Secondary) 102013 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)
6
Kit, Switch Offset, Shim and
Replacement Tab (x2)
i1-3207 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)
7 Plate, Door Switch, S/M (x2) NGC-1126
Screw, #4-40 x 3/4, Sems, PPHD, SS
Screw, #8-32 x 3/8, PPHD, Int Sems, SS
102904 (qty 2 each)
102921 (qty 1 each)
8 Stop, Paddle, Door Switch, S/M (x2) NGC-1324 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2 each)

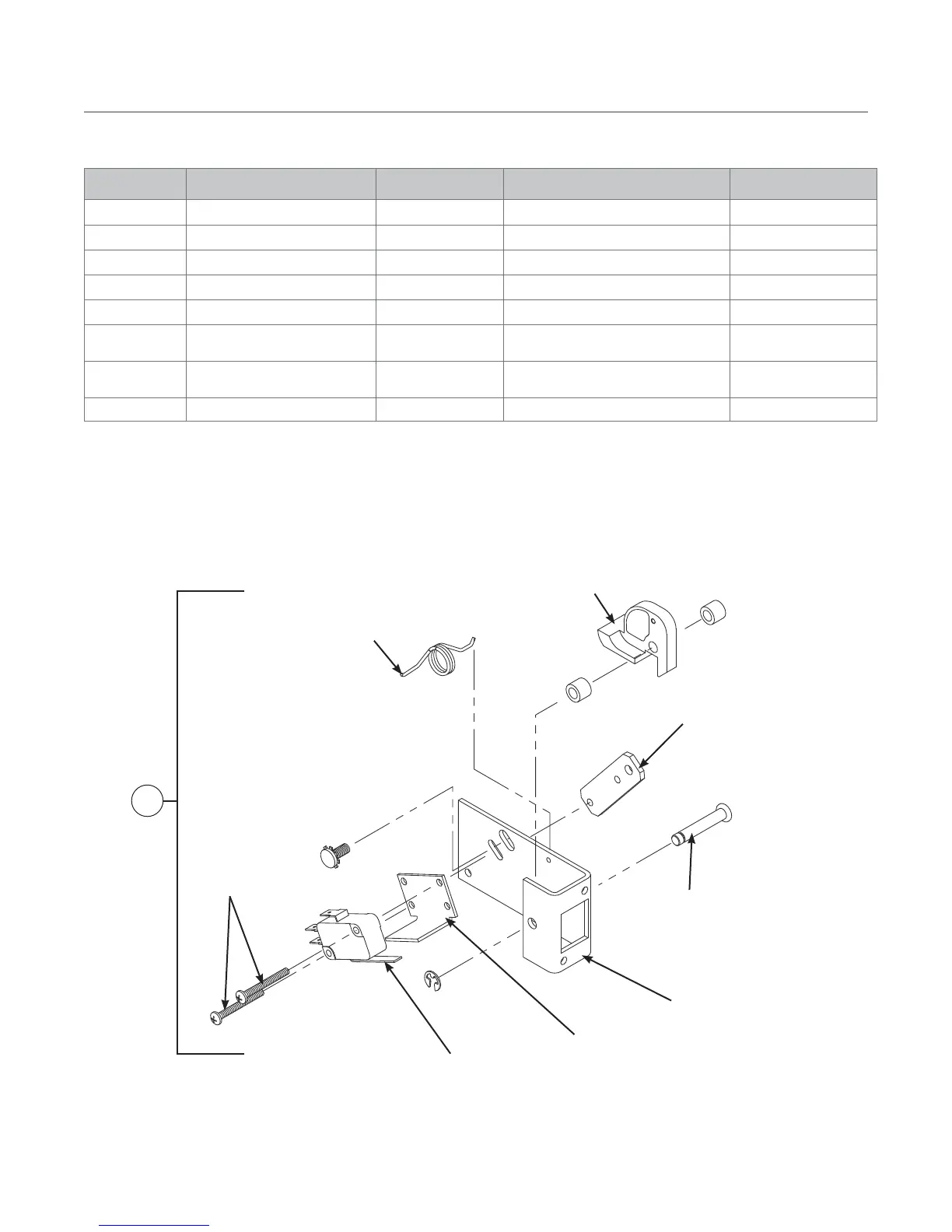

Figure A-13: Primary Switch Detail
Bracket, Latch, Primary Switch
* When replacing the primary switch:
a.) Discard one of the switches supplied with kit NGC-3033
b.) Use the shorter screws (see Figure below)
c.) Follow all instructions in the provided field service bulletins FSB-10057 and FSB-10094
d.) Discard FSB-10055
Spring, Door Latch, Primary Switch
1
Toggle, Latch, Primary Switch
Plate, Door Switch, Primary
Pin, Clevis, 3/16 Dia x 1”, P Switch
Stop, Paddle, Door Switch, Primary
Interlock Switch (Primary)*
Use shorter screws*
To Next Page
