turck DR Series User Manual

V01.00 | 2021/11
11
Voltage output
In the defined measuring range, the device supplies an analog voltage signal between ASP
(analog start point) and AEP (analog end point). The following output configurations can be set:
n 0…10 V (factory setting)
n 0…5 V
n 1…6 V
n 0.5…4.5 V
n 10…0 V
n 5…0 V
n 6…1 V

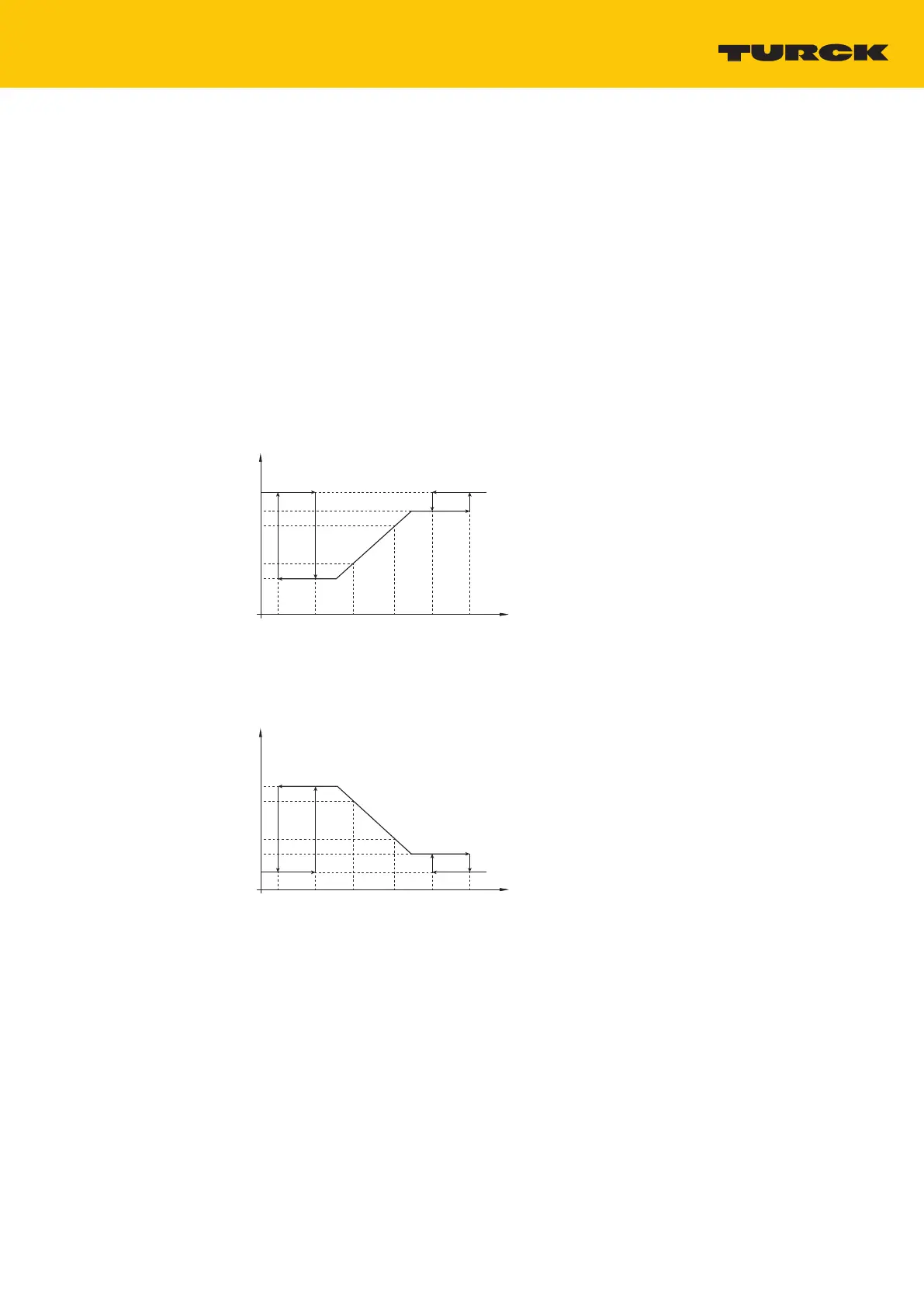

Output behavior of the analog outputs
The following figures illustrate the behavior of the analog outputs:
process
value
minur max or
ASP
AEP
analog
output
MIN
BOT
TOP
MAX
ERR
Fig.5: Rising output characteristic
process
value
minur max or
ASP
AEP
analog
output
MIN
BOT
TOP
MAX
ERR
INV
Fig.6: Falling output characteristic, MIN ≠ 0
