4 Product Description
The radar distance sensors of the DR… series are contained in a metal housing. The devices are
provided with a metal M12 plug connector for connecting the sensor cable. The device func-
tions can be set via a teach function or via IO-Link.
Devices with the following output functions are available:
n DR…-IOL8X2…: 1 switching output (PNP/NPN/Auto) as well as 1 switching output(PNP/
NPN/Auto) or 1 analog output (I/U/Auto)
n DR…-2UPN8…: 2 switching outputs (PNP/NPN/Auto)
4.1 Device overview
mm [Inch]
45.1 [1.78] 53.8 [2.12]
113.9 [4.48]
5.5 [0.22]
LED
M12 × 1M30 × 1.5Ø44.7 [1.76]
36/5
75 Nm

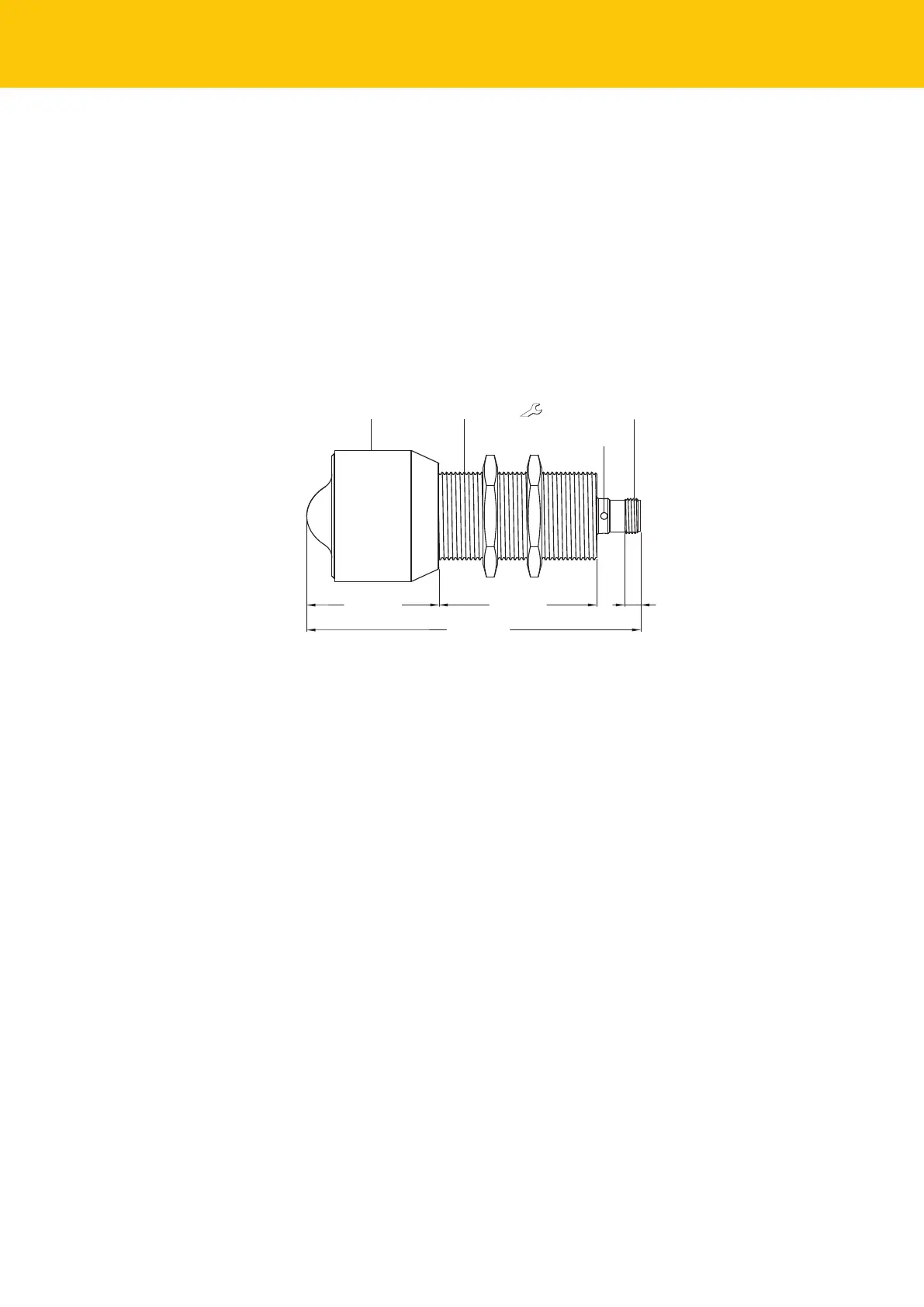

Fig.1: Dimensions
4.1.1 Indication elements
The radar distance sensors are provided with a green and a yellow LED that are visible via four
indicator points. Only one LED can be active. If an LED is active, all four indicator points are lit.
4.2 Properties and features
n Range: 15 m
n Blind zone: 35 cm
n Resolution: 1 mm
n Opening angle of the radar cone: ±7.5°
n Approved in accordance with ETSI 305550-2
n Male connector, M12×1, 4-pin
n Operating voltage 18…33VDC
n Switchable PNP/NPN switching output
n Switchable 4…20 mA/0…10 V analog output
n Automatic current and voltage detection
n IO-Link
n Cylindrical design M30
