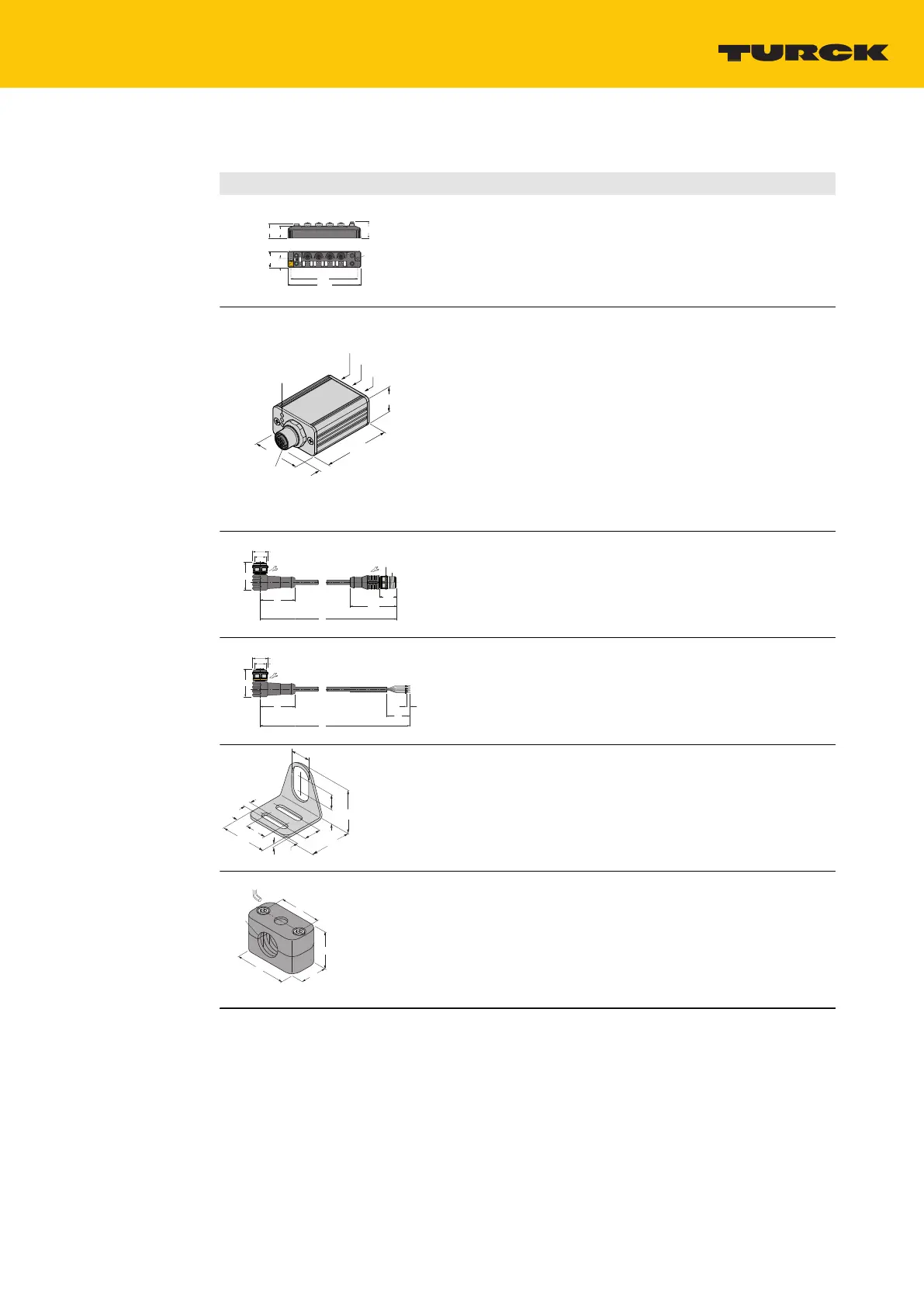

4.5 Technical accessories
Figure Type Description
132
144.3
32
32
C0C1C2C3
24
17.9
28
X2
X1
P2
P1
ø 4.6
TBEN-S2-4IOL Compact multiprotocol I/O module for
Ethernet, 4IO-Link master channels, 4 uni-
versal digital PNP channels, 0.5A, channel
diagnostics
41
24
54
M12 × 1
16
USB-Mini
IN-DC
LED:
CH1 (C/Q)
CH2 (DI/DO)
Error
LED: PWR
USB-2-IOL-0002 IO-Link adapter V1.1 with integrated USB
interface
26.5
M12 x 1
ø 15
32
14
L
14
M12 x 1
ø 15
49.5
18.2
WKC4.4T-2-
RSC4.4T/TXL
Connection cable, M12 female connector,
angled to M12 connector, straight, 4-pin,
cable length: 2 m, sheathing material: PUR,
black; cuLus approval
26.5
M12 x 1
ø 15
32
14
L
50
5
WKC4.4T-2/TXL Connection cable, M12 female connector,
angled, 4-pin, cable length: 2 m, sheathing
material: PUR, black; cuLus approval
63,5
44,5
19,1
23
20,6
2,2
5,5
30,5
11,2
57,2
34,8
10,3
MW-30 Mounting bracket, stainless steel, for M30
ø 30
41
30
57
40
5
BSS-30 Mounting clamp for smooth and threaded
barrel devices; material: polypropylene
In addition to the above connection cables, Turck also offers other cable types for specific ap-
plications with the correct terminals for the device. More information on this is available from
the Turck product database at www.turck.de/products in the Connectivity area.
