13 of 35 REF: CCU3/C-4100.DOC REV: M September 26, 2005

3.4. Cable Pinouts

3.4.1. CCU3/C-4100 to the Simplex Panel:

To connect a CCU3/C-4100 to a Simplex Panel use the following table.

4020/4100 Host Cable CCU3/C-4100

Com 1

4020 4100 Signal Signal Pin

Port A

TB1

Port B

TB1

Port A

TB1

Port B

TB2

DB25

1 6 8 1 2 TXD RXD 6

3 8 6 3 3 RXD TXD 3

2 7 7 2 4 RTS CTS 5

4 9 5 4 5 CTS * RTS 2

5 10 4 5 7 GND GND 4

Table1.

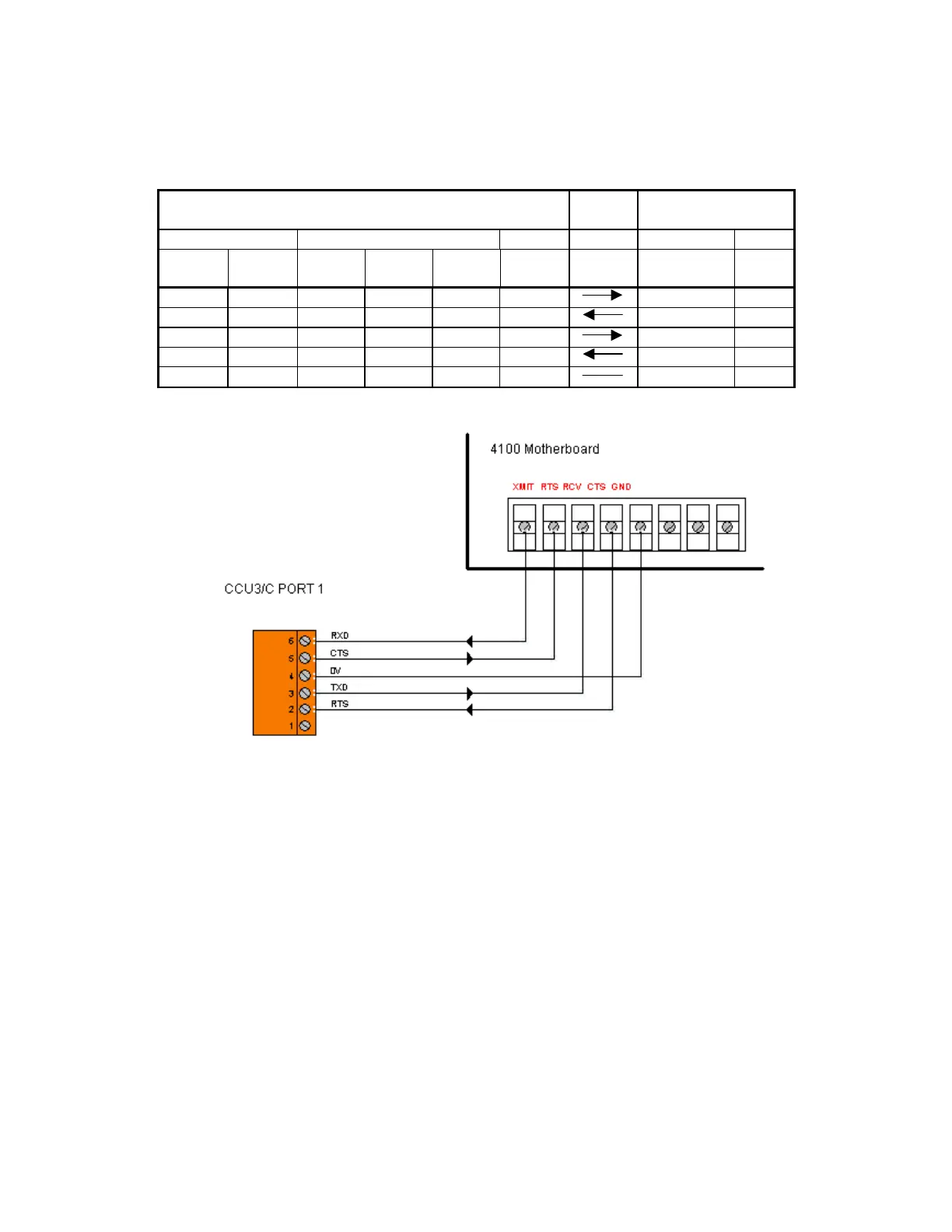

Figure 12: Connection of CCU3/C-4100 to Terminals on the 4100 Motherboard.
