Tyco CCU3/C-4100 User Manual

3 of 35 REF: CCU3/C-4100.DOC REV: M September 26, 2005
1. General
1.1. Introduction
The CCU3/C-4100 provides an interface from a network of Simplex 4100, 4100A,
4100U and 4020 Fire Indicator Panels via a CCUNet to XLG Client/Server.
The CCU3/C-4100 connects to one of the Simplex panels via the Simplex 4100
interface port. It connects to the Simplex 4100 Interface via RS232.
1.2. Ordering Configurations:
Part Number: CCU3-C4-4100. This configuration is within an aluminium box.

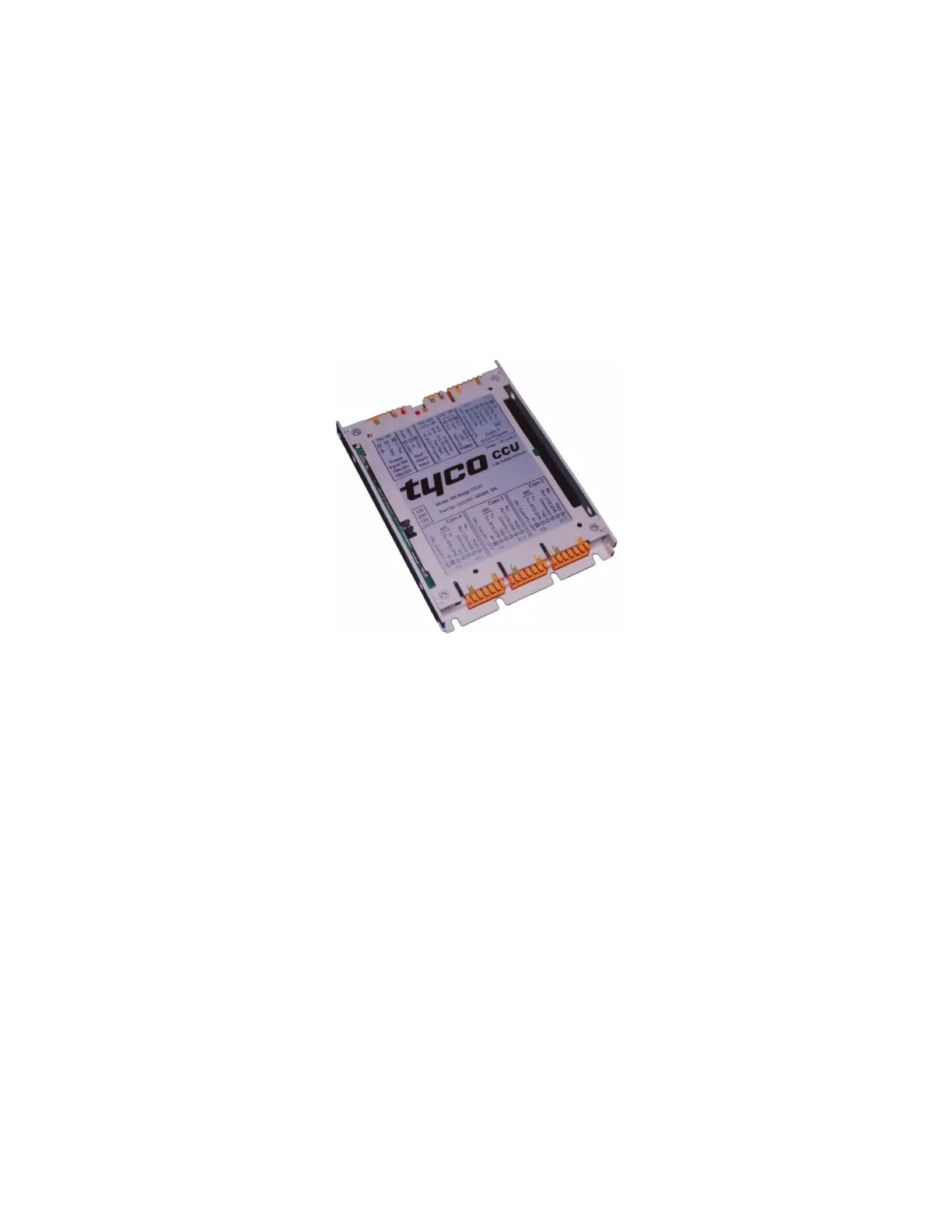

Figure 1: Model: CCU3/C-4100
