10 of 35 REF: CCU3/C-4100.DOC REV: M September 26, 2005
3.2.2.2. Windows based Programmer
For a windows programmer generate a ‘Standard’ report using ‘Job Configuration’ -
> ‘Card Detail’ and tick all of the cards shown in the window. Select the Generic –
Text Only printer you have installed and enter the file name you wish to save the
report as. For example you could use ‘A:\simplex jobs\Job Installation\xlg.txt’ if the
PC that has XLG C/S is not the same PC that has the 4100 programming software
(Hence you will need a floppy disk to transfer the file to the XLG C/S PC).

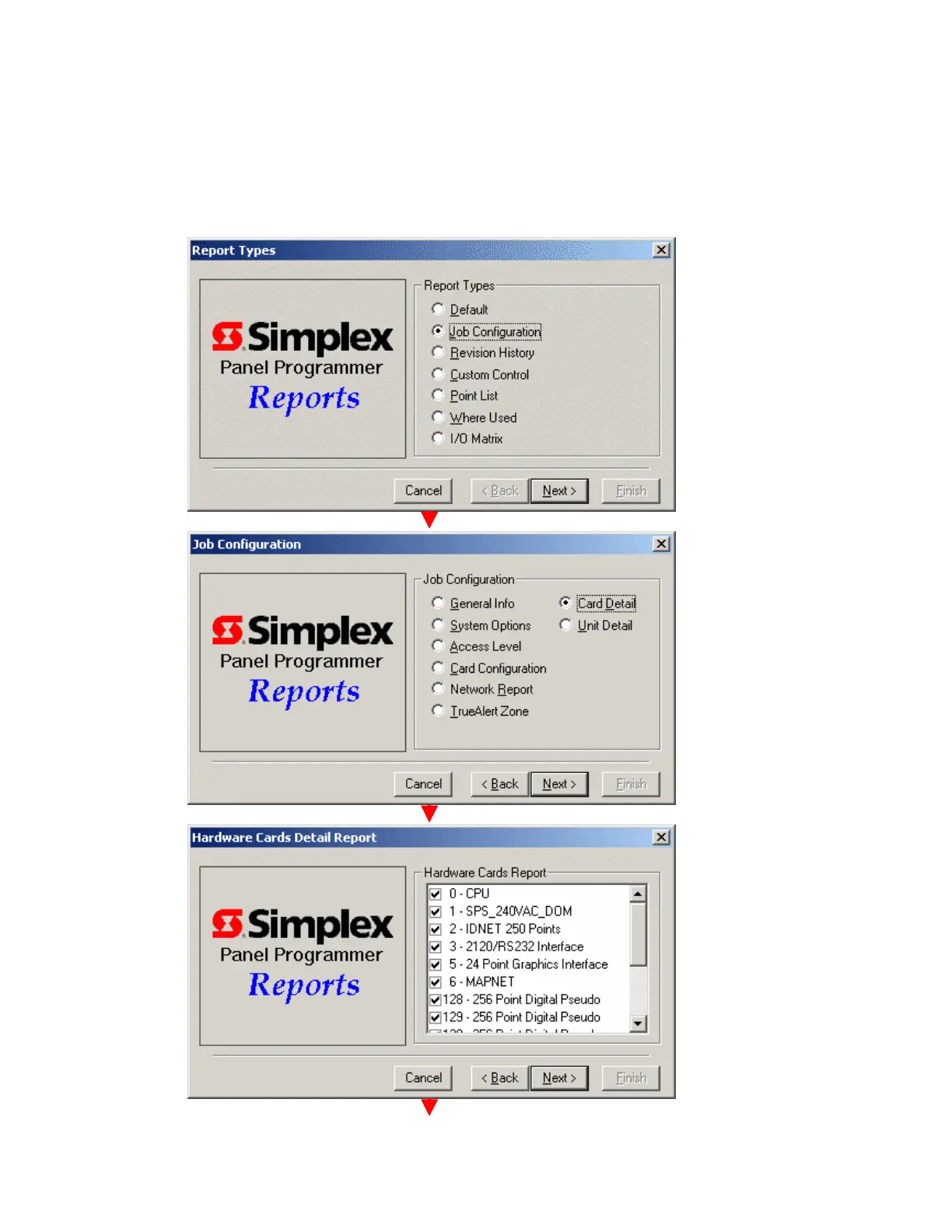

Use the figures below to guide you through the report generation procedure.
Choose the ‘Job
Configuration’ Report Type
Choose the ‘Card Details’
option from the Job
Configuration report.
Tick all cards that are in the
list
To Next Page
