3.3. Connecting the CCU3/C-4100

Com 1 on the CCU3/C-4100 connects to the 4100 Control/Display Panel on the

Simplex Panel.

Com 2 and Com 3 are CCUNet ports (RS422). They may be used together or

separately to connect to the CCUNet.

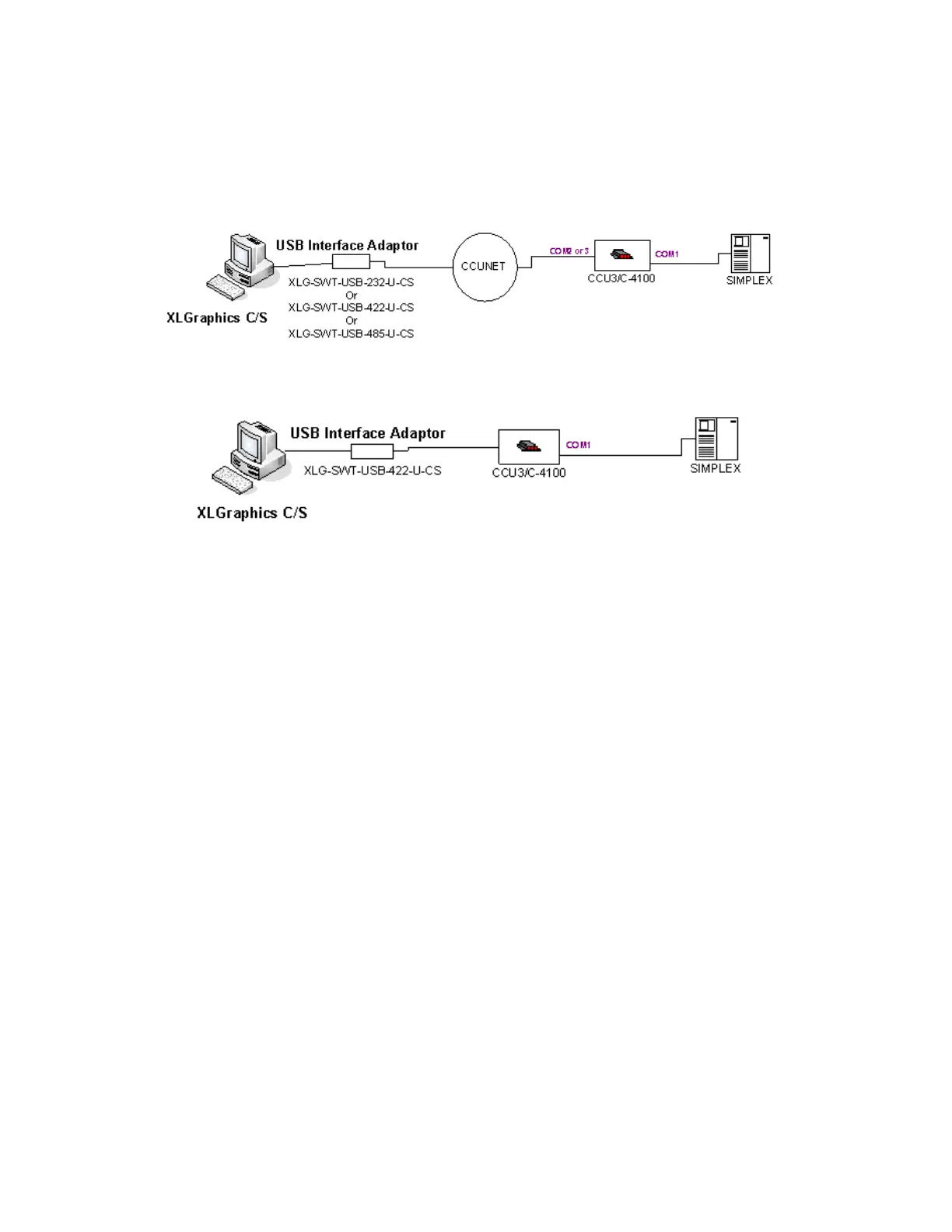

Figure 10: CCUNET Configuration

Figure 11: Direct to PC Configuration
