Tyco F4000 User Manual

Document No: LT0117 F4000 LCD Operator's Manual
Operating Instructions - Point Functions
Issue 2.38 19 April 2002 Page 8-3
OPERATING SEQUENCE - ANALOGUE STATUS (CONTINUED)

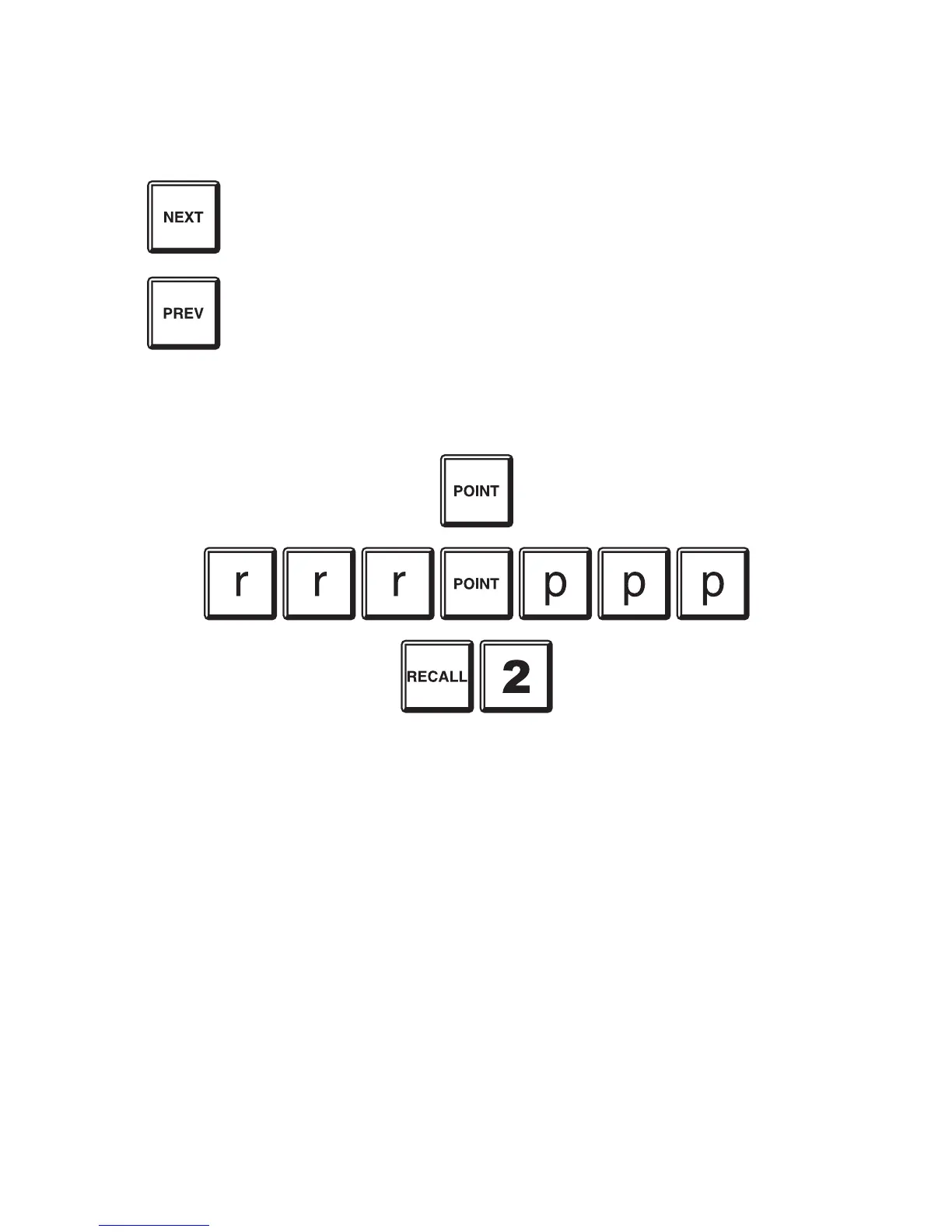

To view the status of other points, press:
to view the status of the next configured point.
to view the status of the previous configured point.
8.1.3 OPERATING SEQUENCE - SPECIFIC POINT ANALOGUE VALUES
To recall a specific point's raw analogue values, press:
where rrr is the responder number
ppp is the analogue point number
The FIP will poll an AAR or MPR for the analogue values for the point and display them.
The analogue value types are:
CV - Current Value (0-31 for EWD, 0-255 for 130 Series)
TV - Tracked Value (0-31 for EWD, 0-255 for 130 Series)
HH - History High Level (0-31 for EWD, 0-255 for 130 Series)
HL - History Low Level (0-31 for EWD, 0-255 for 130 Series)
RR - Rate of Rise (ROR) (0-255 for 130 Series Thermals)
HR - ROR History High (0-255 for 130 Series Thermals)
The LCD briefly shows an asterisk, "*" ,in the top right of the display whenever new data for
one of the analogue values is received.
If this command is entered for an ADR/ARR point, the display will show “No Recall
Information Available”.
