F4000 LCD Operator's Manual
Document No: LT0117
System Description
Page 2-20
19 April 2002
Issue 2.38
2.5.2

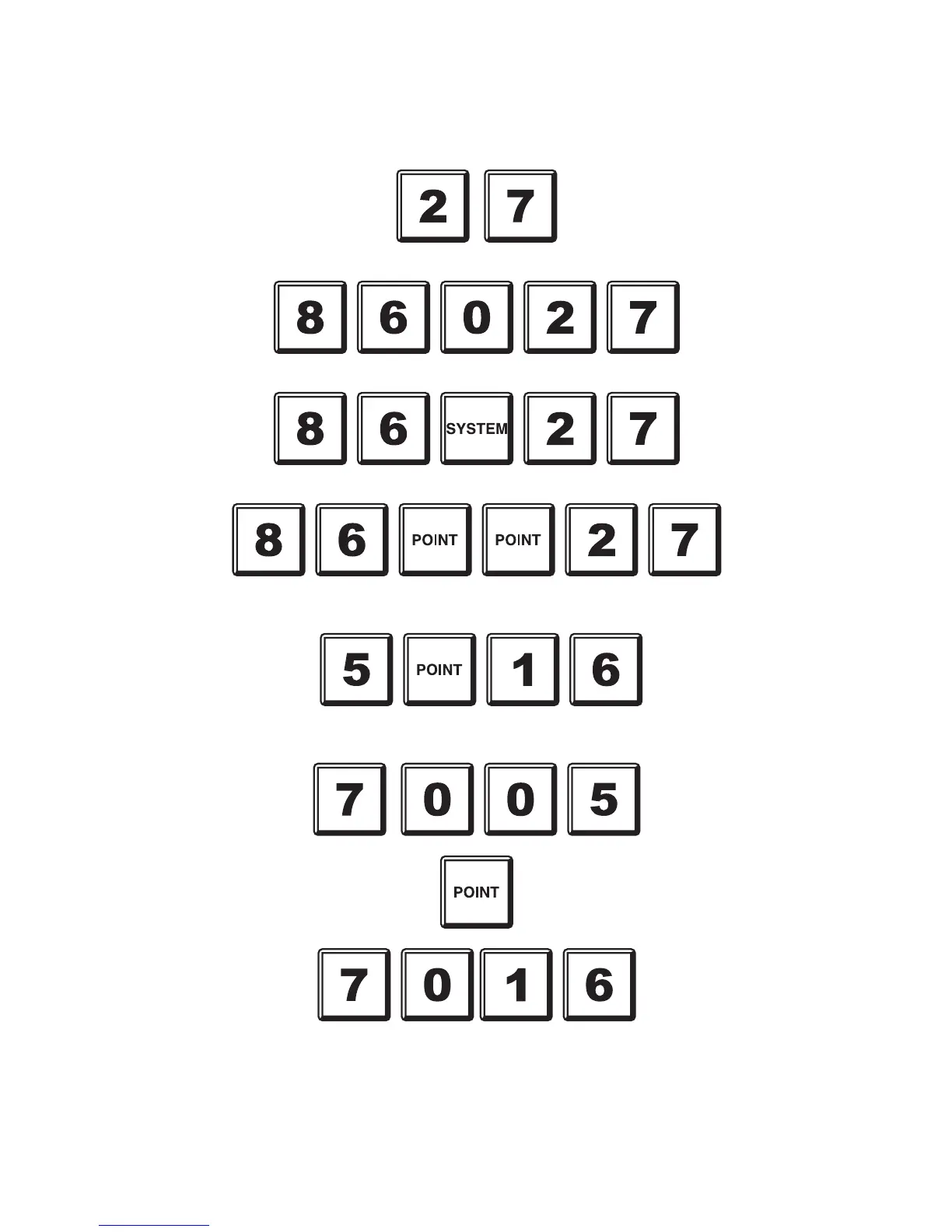

ZONE NUMBER ENTRY EXAMPLES
(i)
Zone 27 on Local Panel.
(ii)
Zone 27 on Panel 86.
OR
OR
(iii)
Zones 5 to 16 on local panel.
(iv)
Zones 5 to 16 on Panel 7.
35
37
