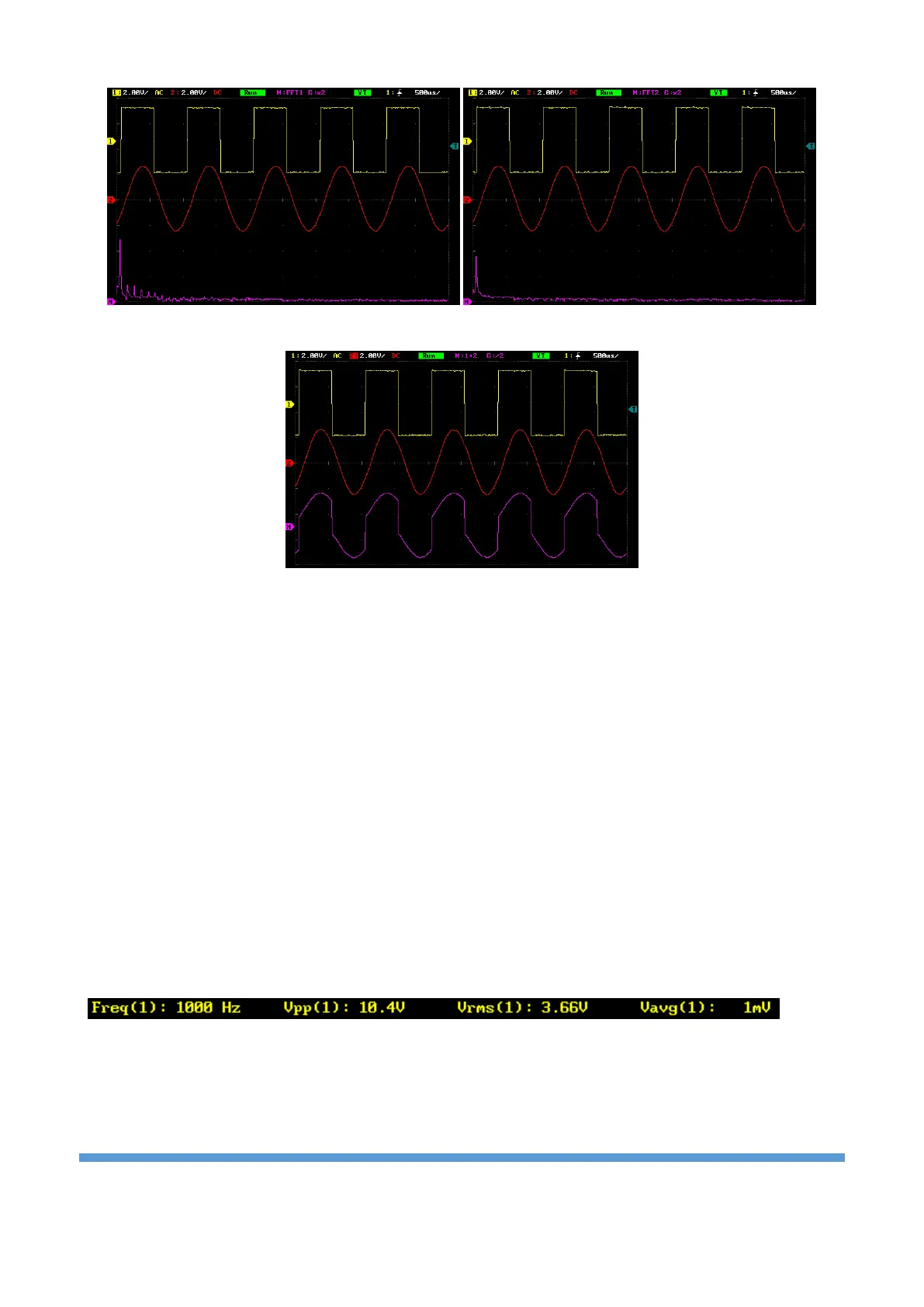

CH-1 FFT CH-2 FFT
CH-1 + CH-2
Automatic measurement:
Some data of the waveform can be automatically calculated. When the “Measure” button is clicked, there
are 4 different measurements in the submenu.
• Frequency: Frequency (channel triggering needs to be set accordingly to be calculated)
• Vpp: Peak-to-peak voltage value
• Vrms: Effective voltage value
• Vavg: Average voltage value
When the relevant buttons in the submenu are clicked, the selected measurement is added to the bottom
of the graph. Whichever channel is active, measurement is made for that channel. Channel activation is
explained in the section “Enable or disable analog channel”.
A maximum of 4 values are displayed simultaneously. If the measurement area is desired to be deleted, the
“Clear All” button is clicked.
