5.9. Half wave rectification

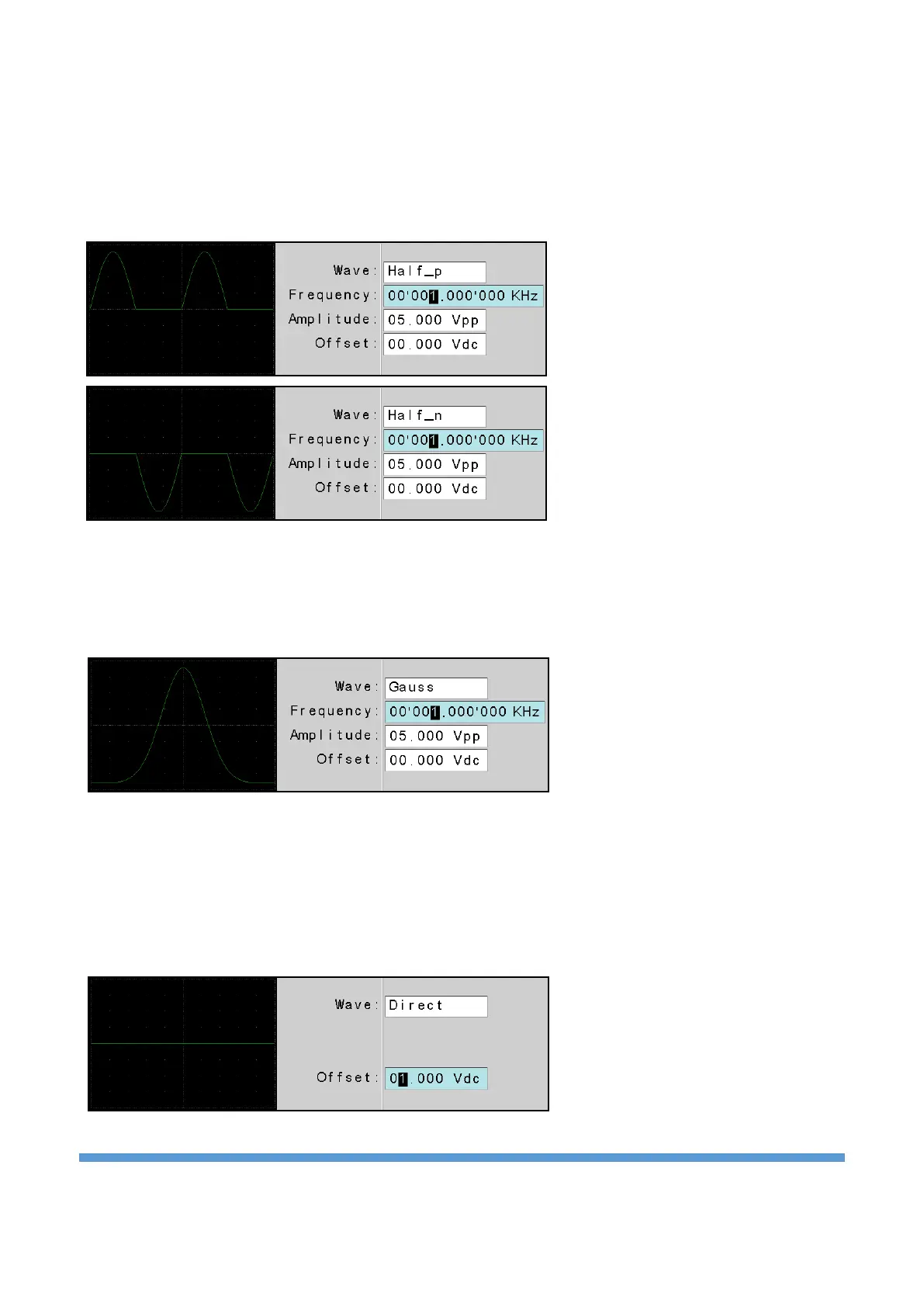

There are two different forms of half-wave rectification, positive and negative. Click “Half_p” button for
positive half wave rectification. Click “Half_n” button for negative half wave rectification. At this time, you
can set the parameters for half-wave rectification. For the adjustment methods, see the explanations in the
“Sine wave” section.
Positive half wave rectification
Negative half wave rectification
5.10. Gaussian wave
For Gaussian wave, “Gauss” button is clicked. At this time, you can set the parameters for the gaussian
wave. For the adjustment methods, see the explanations in the “Sine wave” section.
5.11. Direct voltage signal
Click the “Direct” button for the direct signal. With the direct signal, DC voltage is generated. It is adjusted
with the offset parameter and voltage between -5V and +5V can be generated. For the adjustment
methods, see the explanations in the “Sine wave” section.
