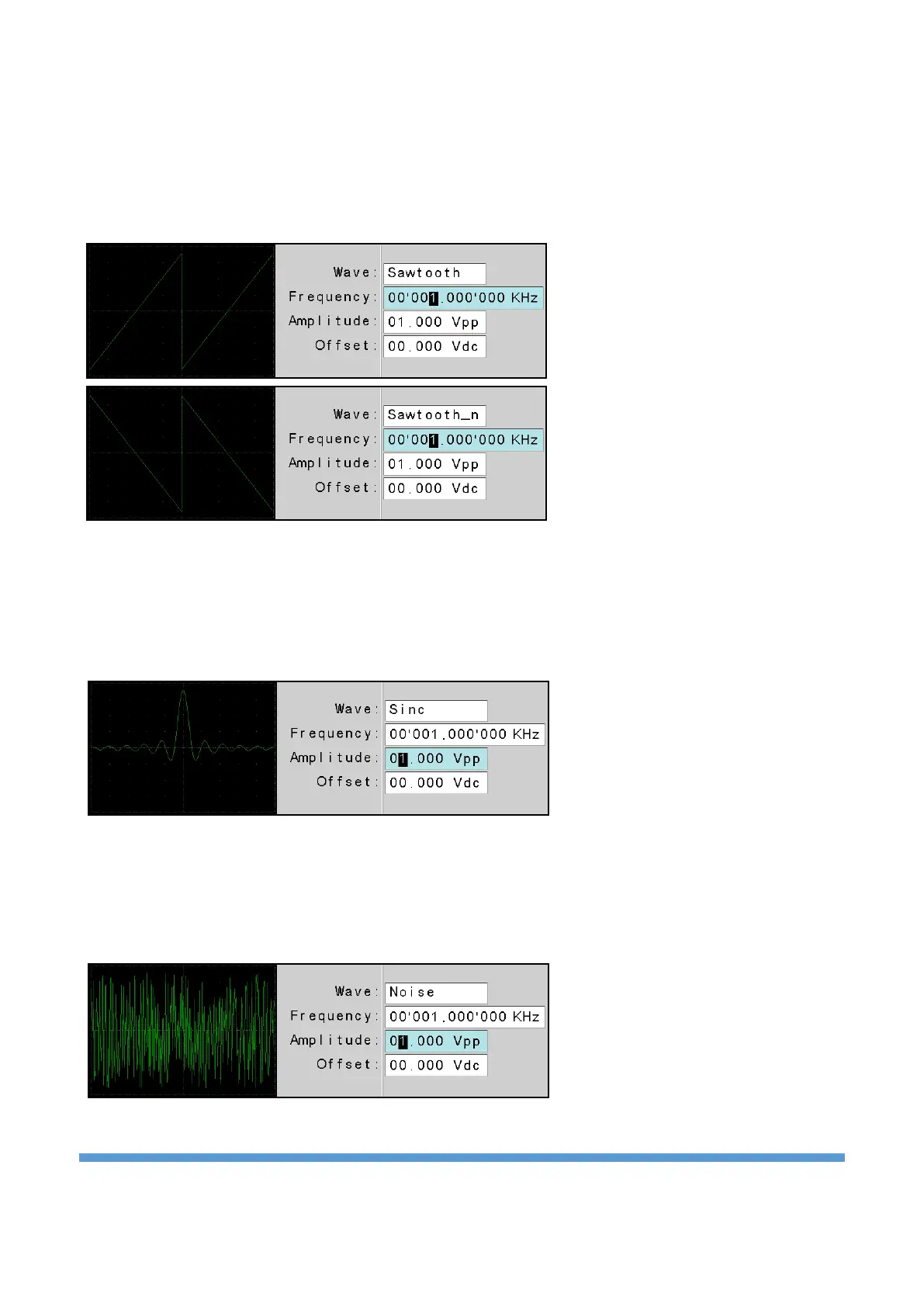

5.4. Sawtooth wave
There are two different forms of sawtooth wave, positive and negative. Click the “Sawtooth” button for a
positive sawtooth wave. Click “Sawtooth_n” button for negative sawtooth wave. At this time, you can set
the parameters for the sawtooth waveform. For the adjustment methods, see the explanations in the "Sine
wave" section.
Positive sawtooth
Negative sawtooth
5.5. SinC wave
For the SinC wave, the “SinC” button is clicked. At this time, you can set the parameters for the sinC
waveform. For the adjustment methods, see the explanations in the “Sine wave” section.
5.6. Noise signal
For the noise signal, the “Noise” button is clicked. At this time, you can set the parameters for the noise
signal. For the adjustment methods, see the explanations in the “Sine wave” section.
