5.7. Exponential wave
There are two different forms of the exponential wave, positive and negative. For positive exponential
wave, “Exp_p” button is clicked. For negative exponential wave, “Exp_n” button is clicked. At this time, you
can set the parameters for the exponential waveform. For the adjustment methods, see the explanations in
the “Sine wave” section.

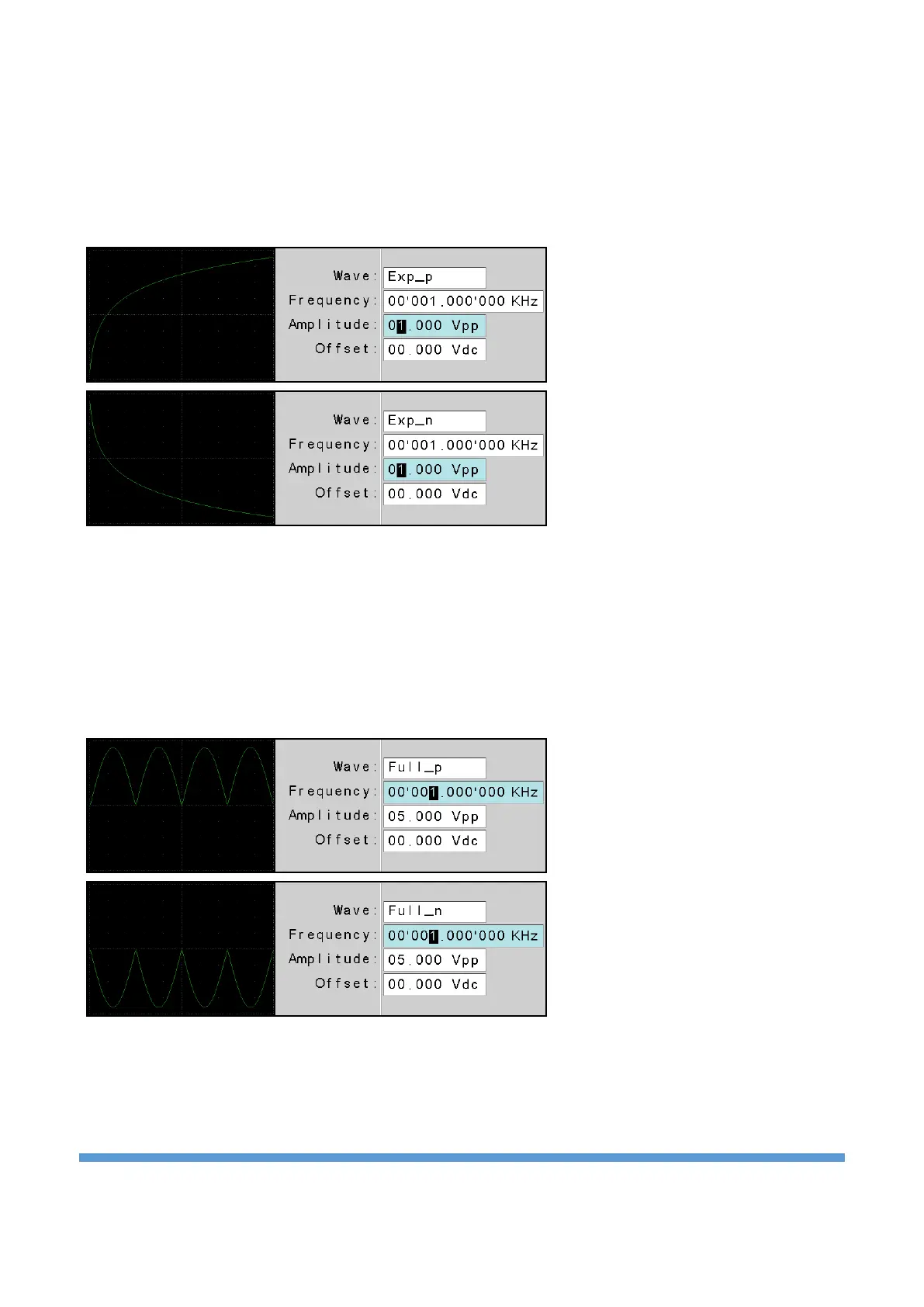

Positive exponential wave
Negative exponential wave
5.8. Full wave rectification
There are two different forms of full wave rectification, positive and negative. Click “Full_p” button for
positive full wave rectification. Click “Full_n” button for negative full wave rectification. At this time, you
can set the parameters for full wave rectification. For the adjustment methods, see the explanations in the
“Sine wave” section.
Positive full wave rectification
Negative full wave rectification
