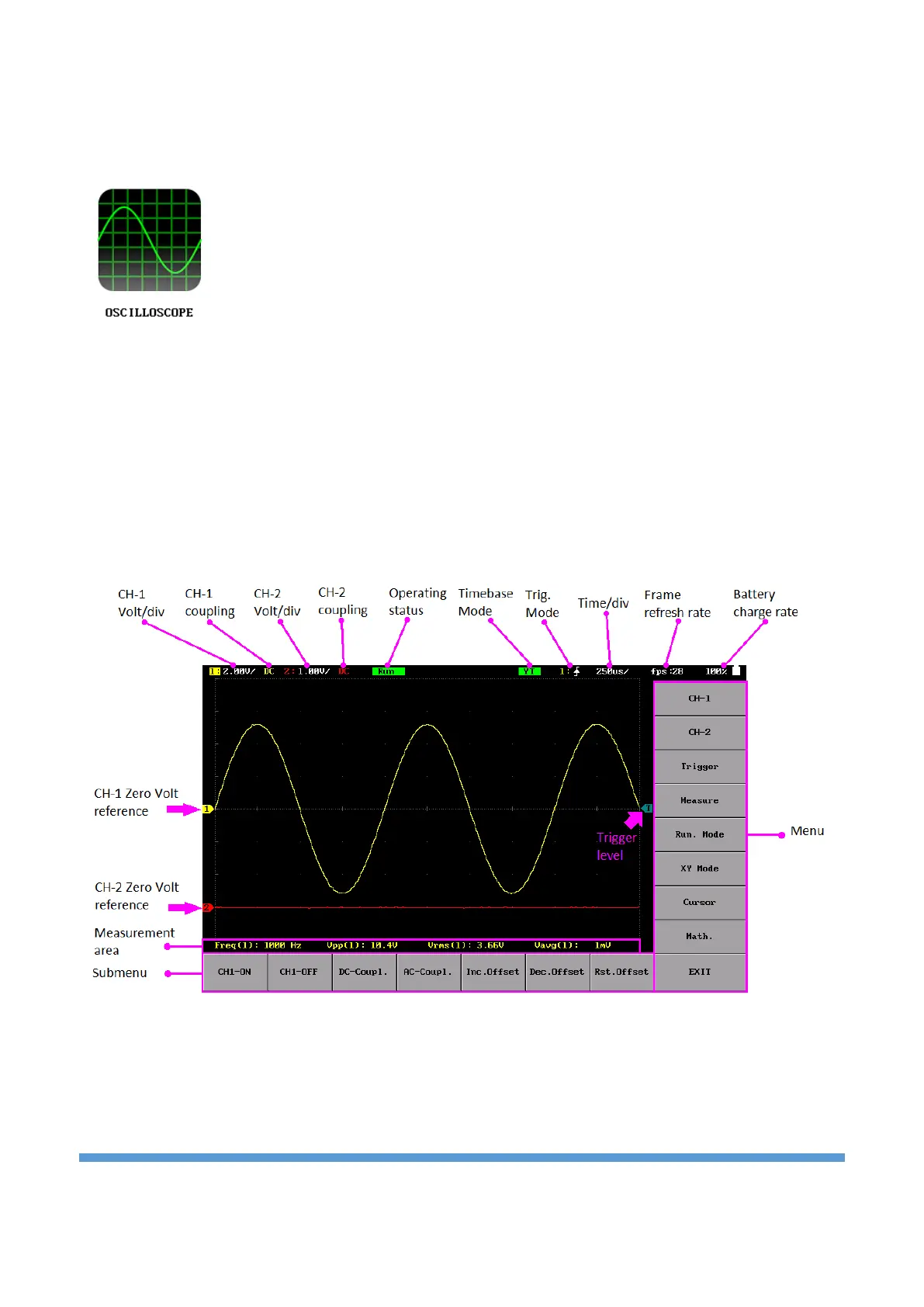

3. Oscilloscope Mode
To enter the oscilloscope mode, the "OSCILLOSCOPE" icon in the "Main Menu" is clicked. The general view
of the scope mode is as in Figure 4.
Oscilloscope icon
At the top of the screen; Status information of measurement channels (Volt/div, coupling), operating
status, time base mode, trigger status information, sampling status information (time/div), frame refresh
rate and battery status information are included. On the right side, there is the menu area where various
settings are made. At the bottom of the screen, there are submenu of these setting menus.
When returning to the main menu with the “EXIT” button in the lower right corner of the screen, the
setting parameters are saved in the memory (dso_settings.cfg).
Figure 4. Oscilloscope menu overview
