9. System Menu
The system menu contains system information about the device and is also where the instrument is
calibrated. Access to the menu is provided by clicking the “SYSTEM INFO” icon in the “Main Menu”. Its
general view is as in Figure 15.

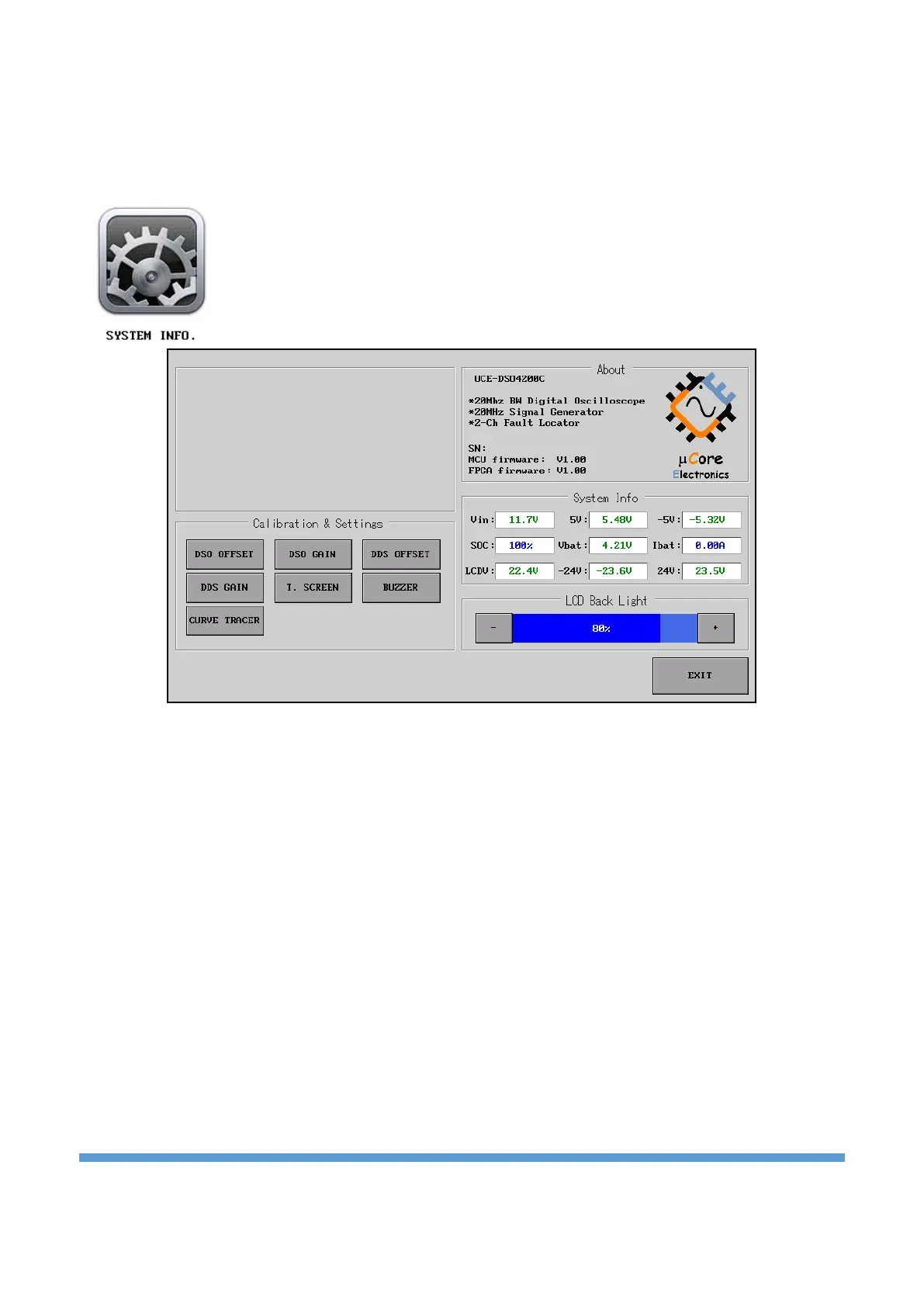

System menu icon
Figure 15. System menu overview
By clicking on the “EXIT” button at the bottom right, the main menu is returned.
The screen is basically divided into 5 zones.
• About
• System info
• LCD Back Light
• Calibration & Settings
• Calibration & Settings submenu (It appears blank at first. Submenu opens when selection is made
from the Calibration & Settings menu.)
9.1. About
This is the section with information about the device. There is the serial number of the device and the
firmware version information. Since the device is dual-processor, there are two firmware versions.
