< Removal procedure >
Power wiring

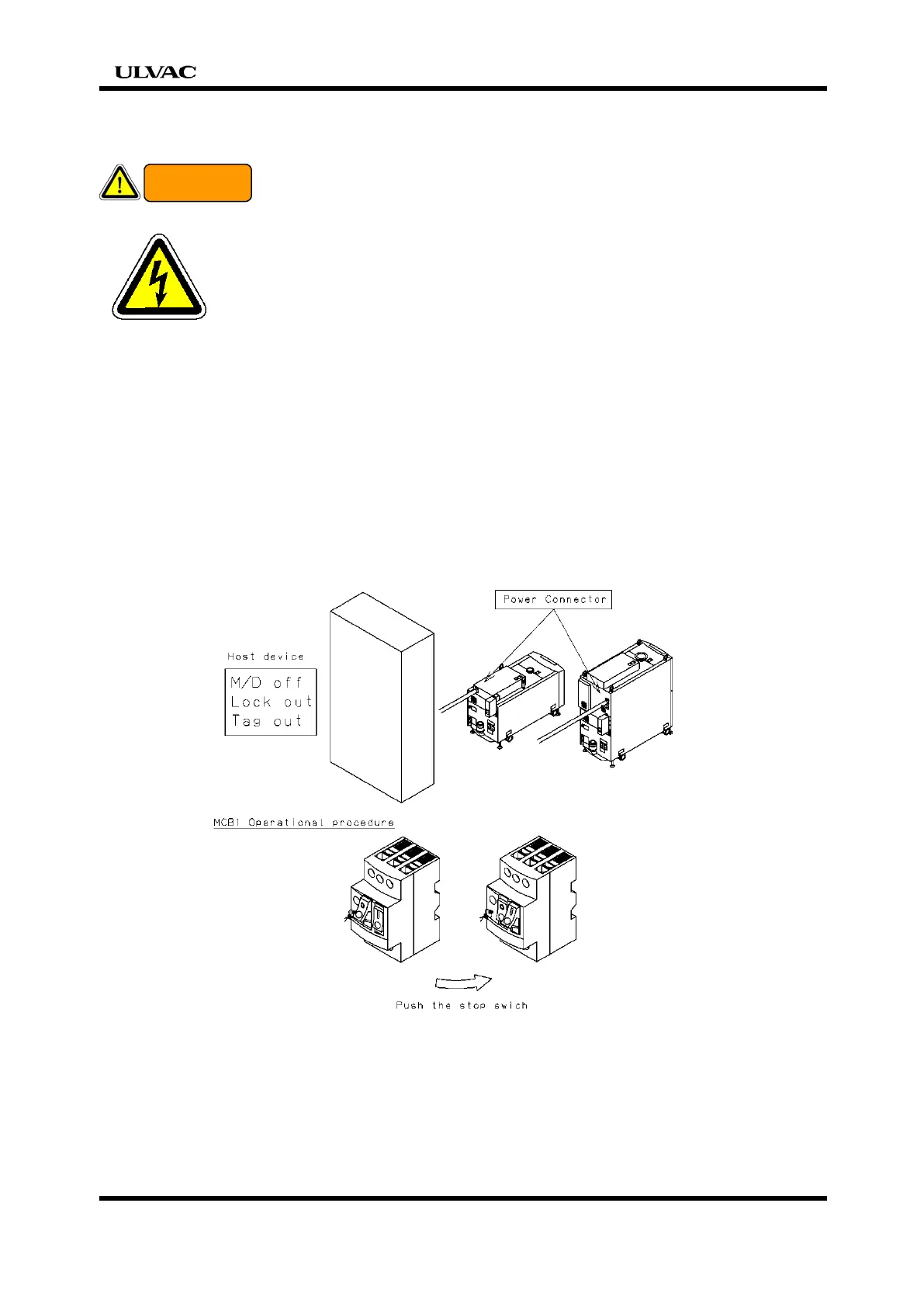

: Shutoff the power securely according to the diagram below
before starting installation or removal work.
<< Electric shock is possible >>
You should not operate this system unless you have electrical
safety training course record.
1. Shut off the breaker (MCB1, MCB2 (LR/HR300, LR/HR600, LR/HR1200,
LR/HR1800)) of the pump.
2. Ensure that LCD of the controller (PCTL) is off.
3. Shutoff the breaker (M/D) of the host equipment.
4. Make lockout and tag-out according to the host equipment instruction manual.
5. Through current indication lamp which may be provided in the host equipment,
ensure that wire is not alive.
6. Remove power connector.
WARNING
