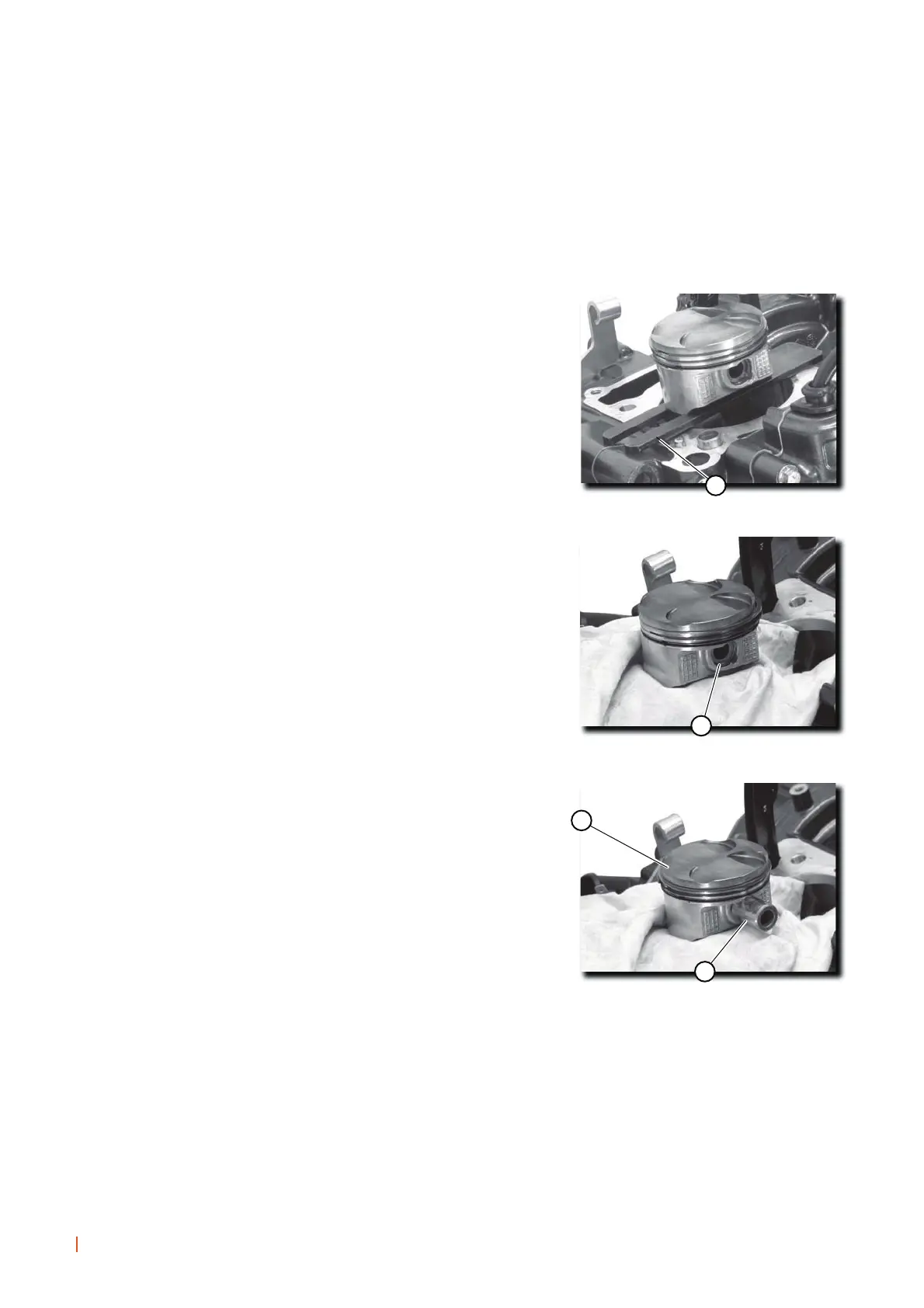

Fit:
- The fork tool for fitting the piston (22).
Piston fitting clamp.
Ref. 865261
N.B.:
BEFORE REMOVING THE CIRCLIP FROM THE GUDGEON
PIN, COVER THE BASE OF THE CYLINDER WITH A CLOTH
TO PREVENT OBJECTS FROM FALLING INTO THE ENGINE.
Extract:
- The 2 circlips (23), one on each side, securing the piston
gudgeon pin.
Extract:
- The piston gudgeon pin (24).
- The piston (25).
26
23
24
22
39
DISMANTLING THE ENGINE
WORKSHOP MANUAL
