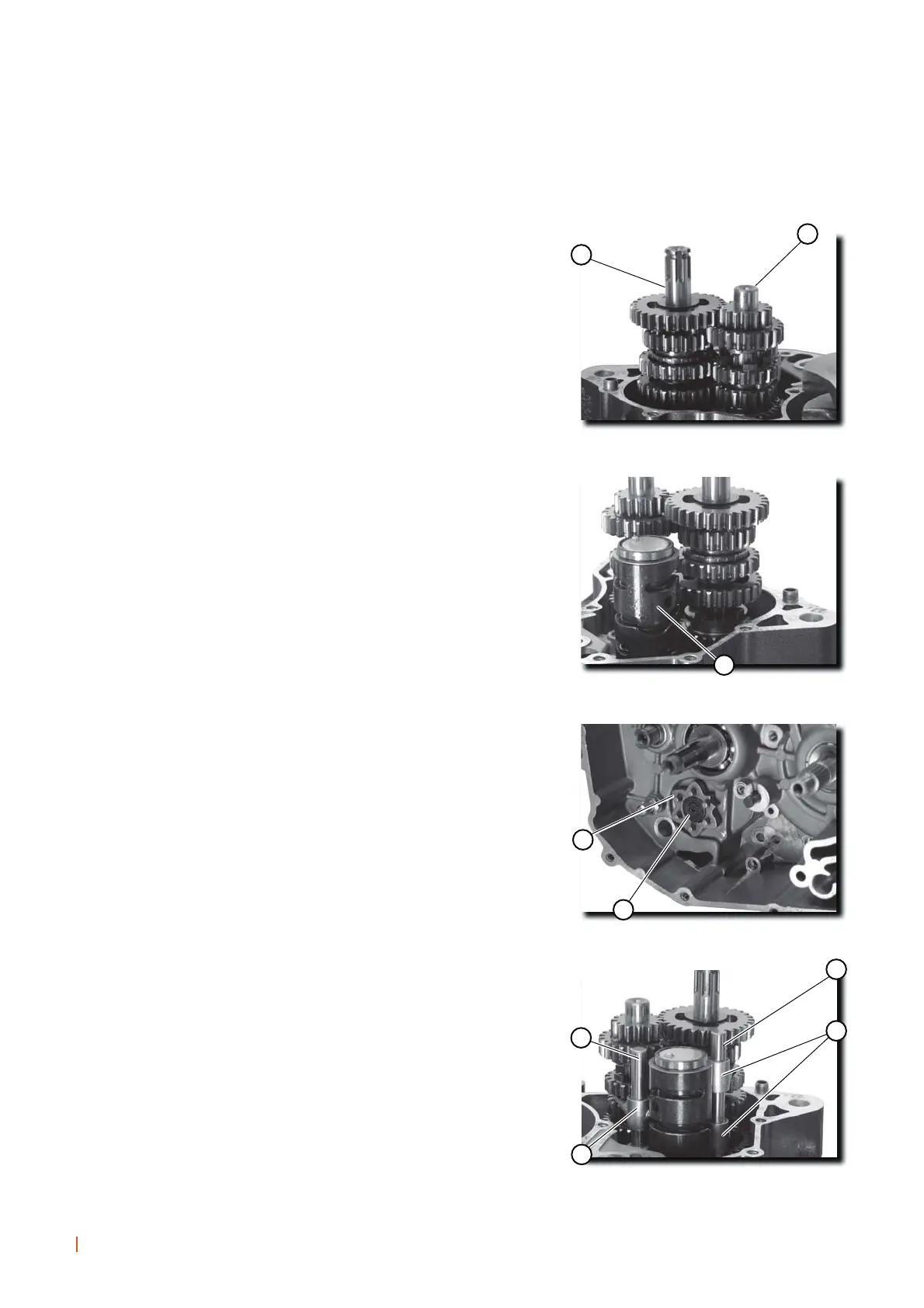

T RANSMISSION, GEAR SELECTOR, GEAR CHANGE
SHAFT AND SELECTOR DISTRIBUTOR
Fit:
- The main shaft (1).
- The intermediate shaft (2).
Fit:
- Gear change shaft assembly (3).
Fit:
- Gear change shaft assembly (4).
- The gear change selector bolt (5) situated on the other
side of the right-hand crankcase.
Fit:
- The 2 gear change forks rods.
Long rod (6).
Short rod (7).
- The 3 gear change forks (8).
2
1
3
5
8
7
8
6
4
59
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
