UNI-T UPO2000CS Series

UPO2000CS series User Manua
21

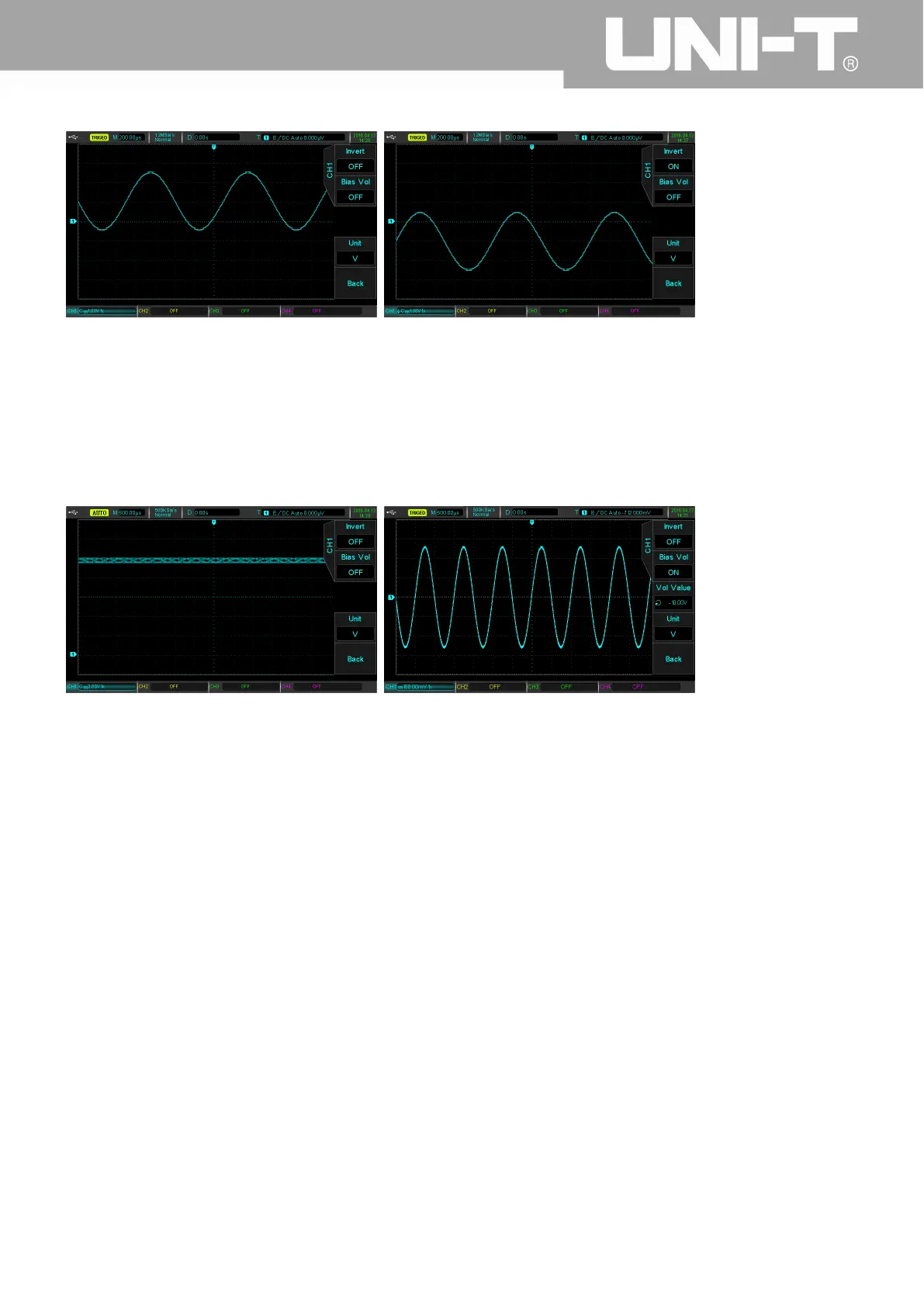

RP Closed RP Open
2.7 Bias
When the amplitude of the DC component in the signal is relatively large, waveform observation could be very
inconvenient. Using the bias function and the superposition of a -10V bias voltage can eliminate the DC
component of the waveform so the AC signal can be clearly observed.
Bias Off Bias On
