UNI-T UPO2000CS Series User Manual

UPO2000CS series User Manual
32
between 8.0ns~10.0s
Next Page Enters Delayed Trigger Menu (3)
Delayed Trigger Menu (3)
Functions Options Descriptions
Trigger
setting
Enters trigger setting menu
Return Return to delayed trigger main menu

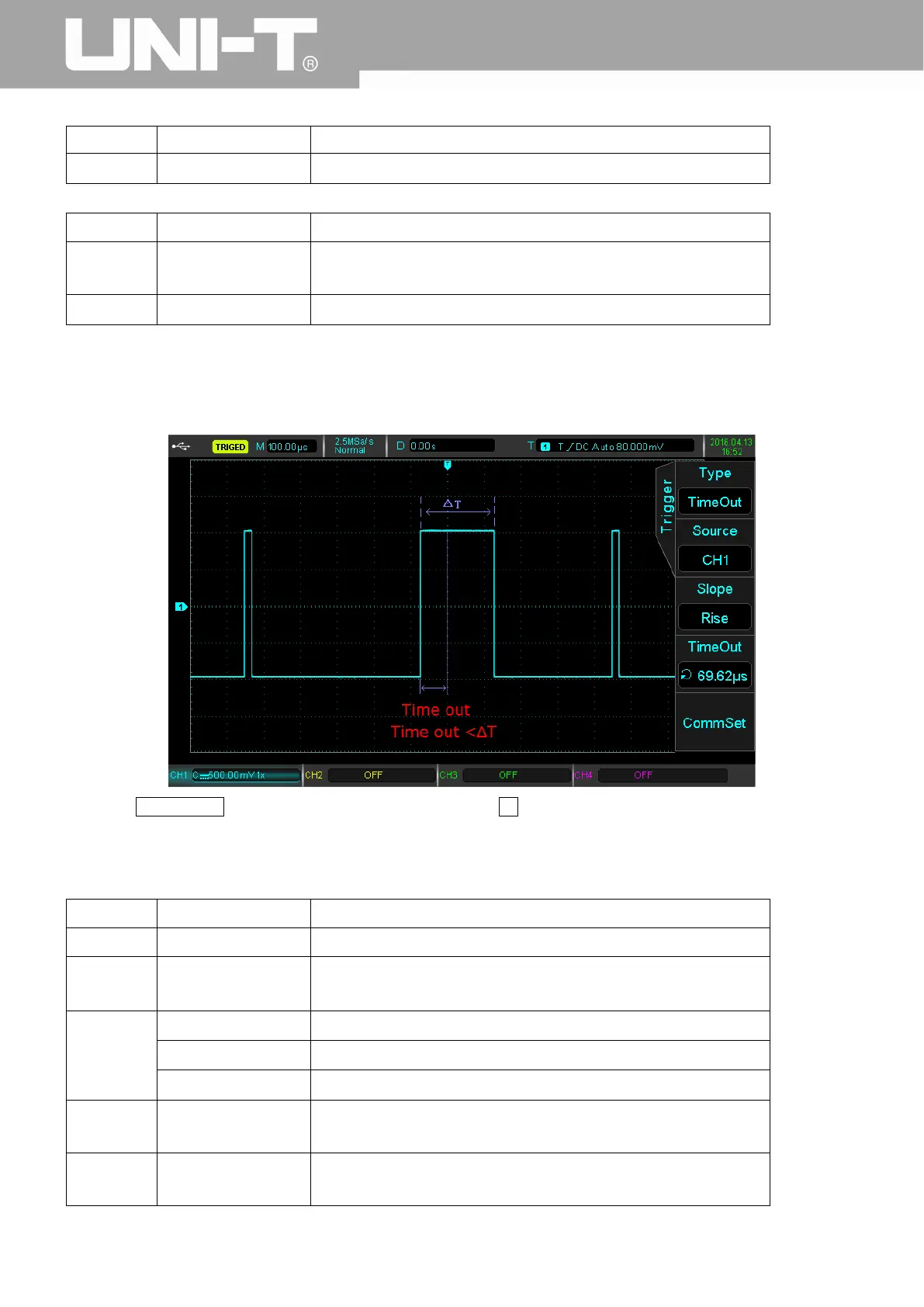

3.9 Overtime Trigger
Overtime trigger occurs when the input signal’s pulse width △t (time between rising and falling edge) is greater than
the overtime set time.
Press the TRIG MENU button to enter the trigger menu. Press F1 to select trigger type, use the multipurpose knob
to select to overtime trigger mode.
Overtime Trigger Menu:
Functions Options Descriptions
Type Overtime
Source 1
CH1, CH2, CH3,
CH4
Set any one of the CH1~CH4 as a trigger signal
Slope
Rising Time starts at the rising edge of signal
Falling Time starts at the falling edge of signal
Any Time starts at any edge of signal
Overtime
Time
8ns~10s
Set overtime trigger time
Trigger
Setting
Enters trigger setting menu
