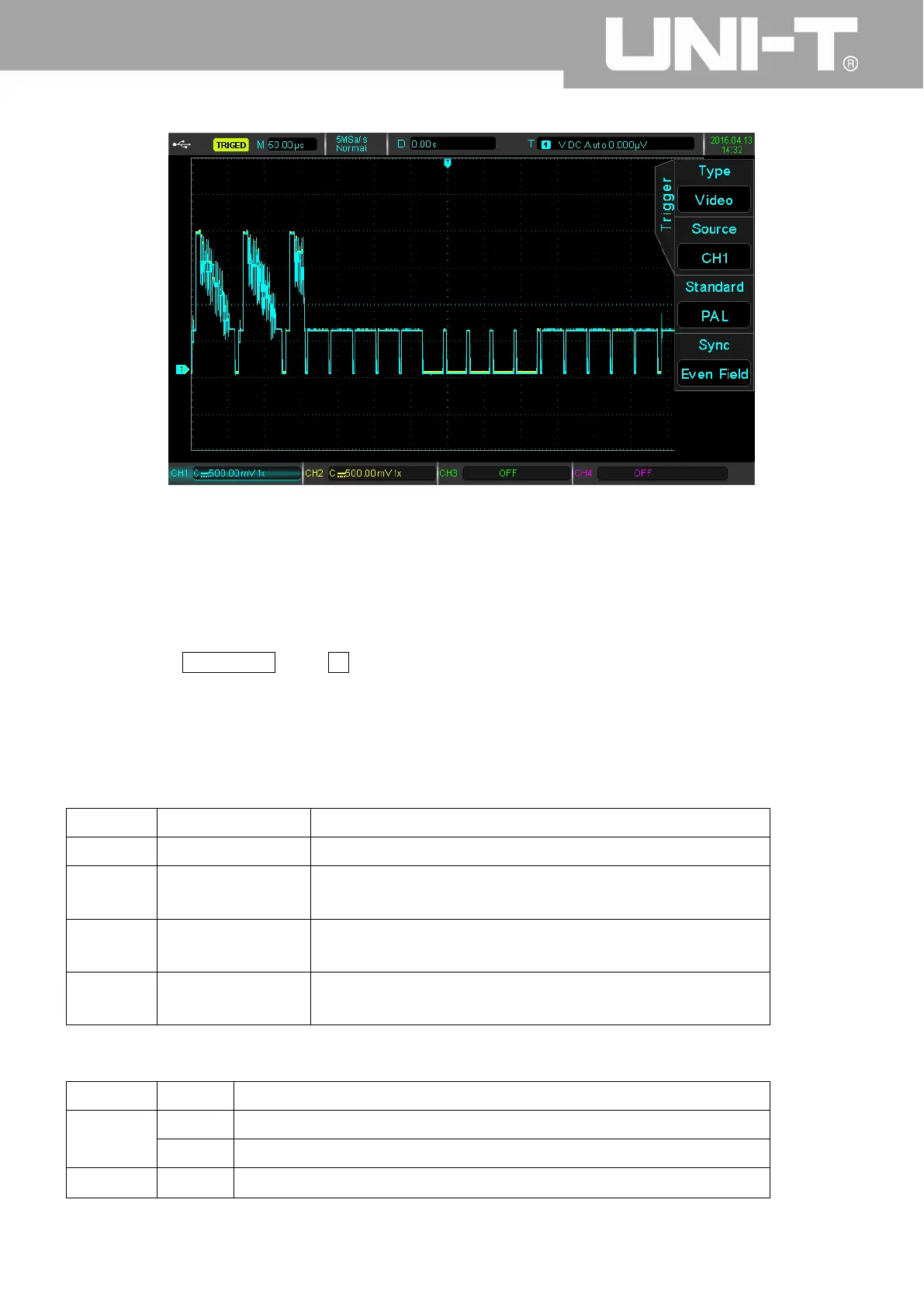

Video Field Sync
3.5 Slope Trigger
When slope trigger is selected, trigger occurs when the rise or fall slope value matches the value in settings.
Step: Press the TRIG MENU, press F1 to select the trigger type, choose slope trigger using the multipurpose
knob.
Slope Trigger Menu
Functions Options Descriptions
Type Slope
Source
CH1, CH2, CH3,
CH4
Set any one of the CH1~CH4 as a trigger signal
Trigger
Setting
Enters trigger setting menu
Slope
Setting
Enters slope setting menu
Slope Setting Menu
Functions Options Descriptions
Slope
Falling Triggers with falling slope
Rising Triggers with rising slope
Condition < When slew rate setting is smaller than signal slew rate, trigger occurs
