Programming Manual UTG900E Series
Instruments.uni-trend.com

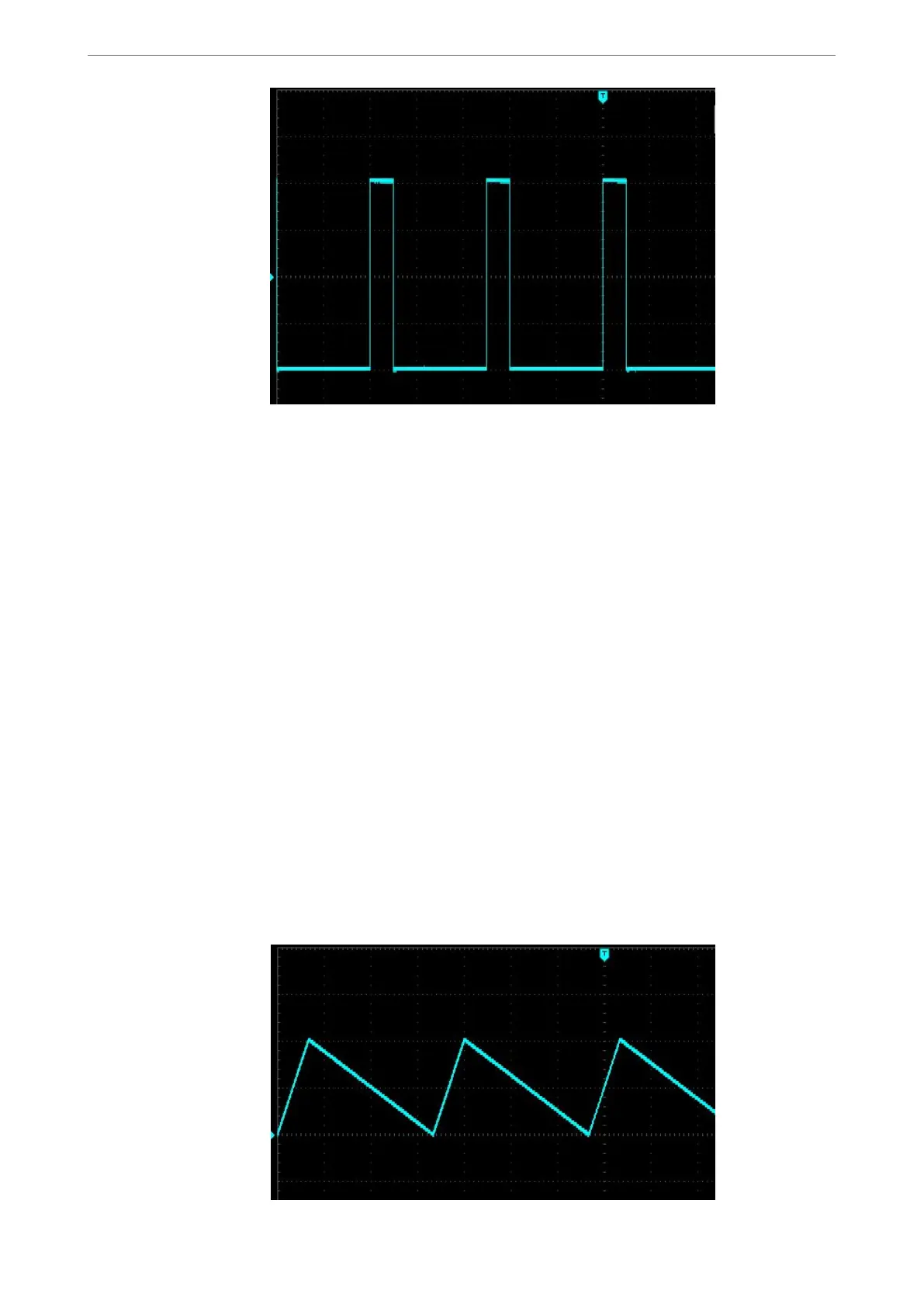

The above square wave can be generated by following commands.
:CHANnel1:MODe CONTinue
:CHANnel1:BASE:WAVe SQUare
:CHANnel1:BASE:FREQuency 40000
:CHANnel1:BASE:AMPLitude 2
:CHANnel1:BASE:OFFSet 0
:CHANnel1:BASE:PHAse 90
:CHANnel1:BASE:DUTY 20
:CHANnel1:OUTPut ON
Sawtooth Wave Configuration
Description
The sawtooth wave has amplitude, offset, and phase relative to the synchronization pulse. Its symmetry
can be used to create ramp wave and other waves. Its amplitude and offset can be set by high and low
voltage.
Example
The following waves can be set by the SCPI command series, and the high level and low level can be used to
replace :CHANnel1:BASE:AMPLitude and :CHANnel1:BASE:OFFSet.
