Planning a OpenScape Cordless IP System
Determining the Installation Site
A31003-C1020-S100-03-7620, 12/2017
OpenScape Cordless IP V2, Service Documentation 41

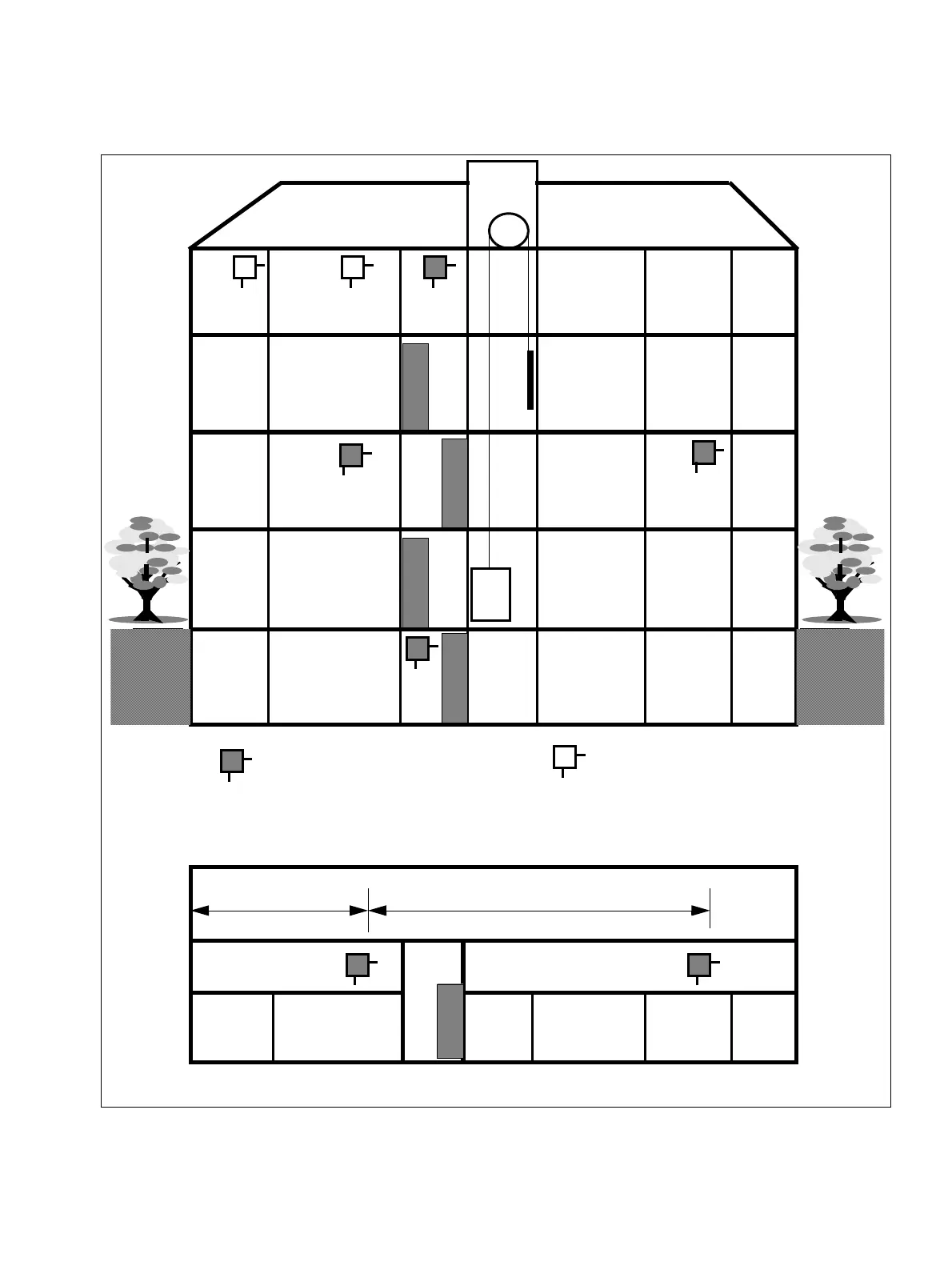

Figure 11 Base station distribution in buildings of brick and light construction materials
BS Z
BS
BS
BS
BS Z
BS
BS
Elevator
< 25 m
BS
Z
< 50 m
BS
BS
3rd floor
Open-plan office
2nd floor
1st floor
Ground floor
Basement
Elev-
ator
Stair-
well
Minimum required
base station
Possible additional base station,
for example, for areas with higher s
concentration
Floor plan 1st floor
Stair-
well
