Planning a OpenScape Cordless IP System
c03.fm
Installing Base Stations
A31003-C1020-S100-03-7620, 12/2017
56 OpenScape Cordless IP V2, Service Documentation

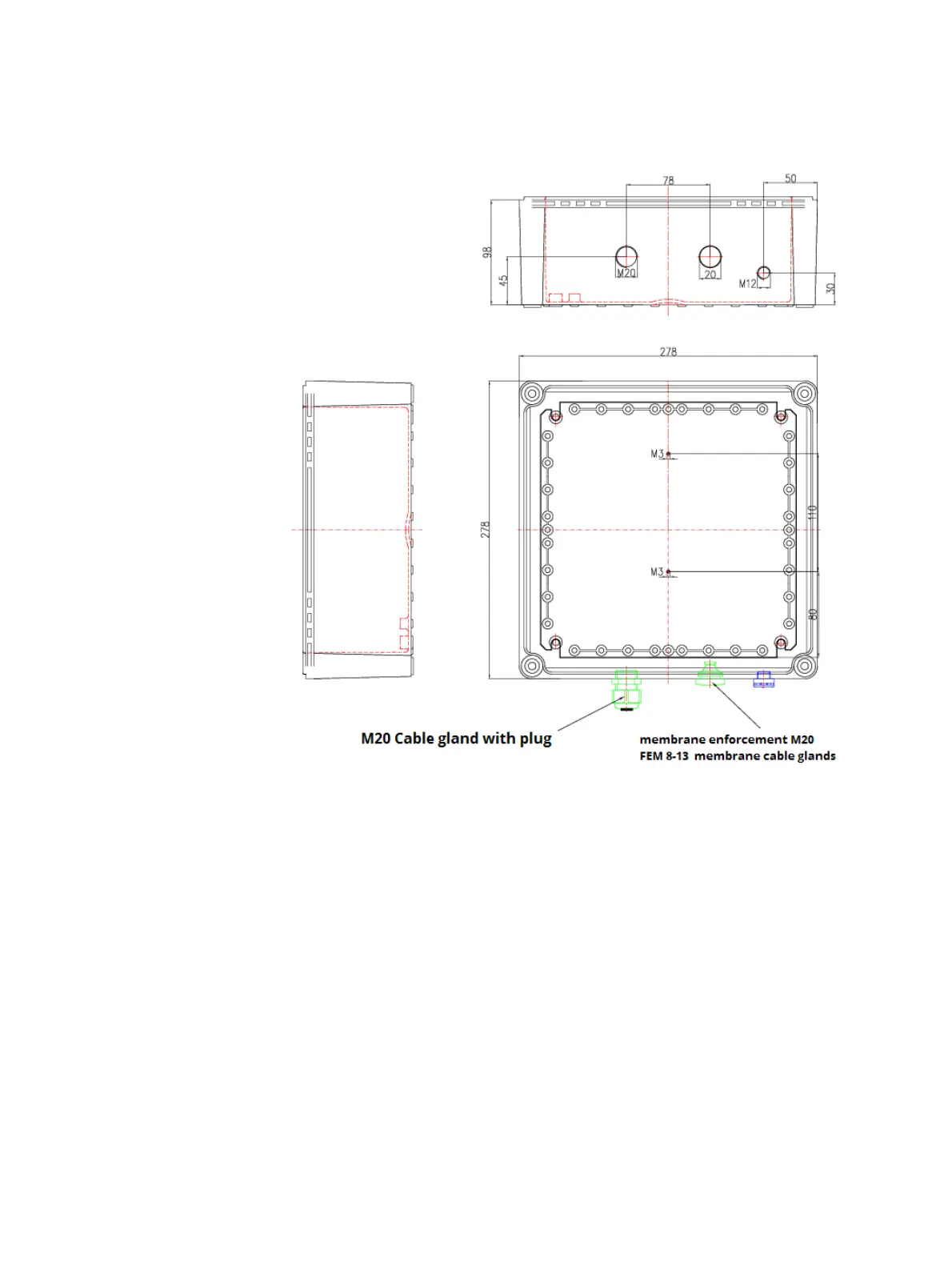

Figure 16 Components for outdoor installation
3.5.6.1 Preparatory Tasks
The following tasks must be performed with appropriate tools before installing the
outdoor housing:
1. Open the outdoor housing (four polyamide cover screws in the cover).
2. Screw in the two M3 screws in such a manner that a clearance of about 4 mm
remains between the head of the screw and the mounting wall.
3. Remove the hinged lid to connection plug X1.
4. Mount the base station on the two M3 screws.
