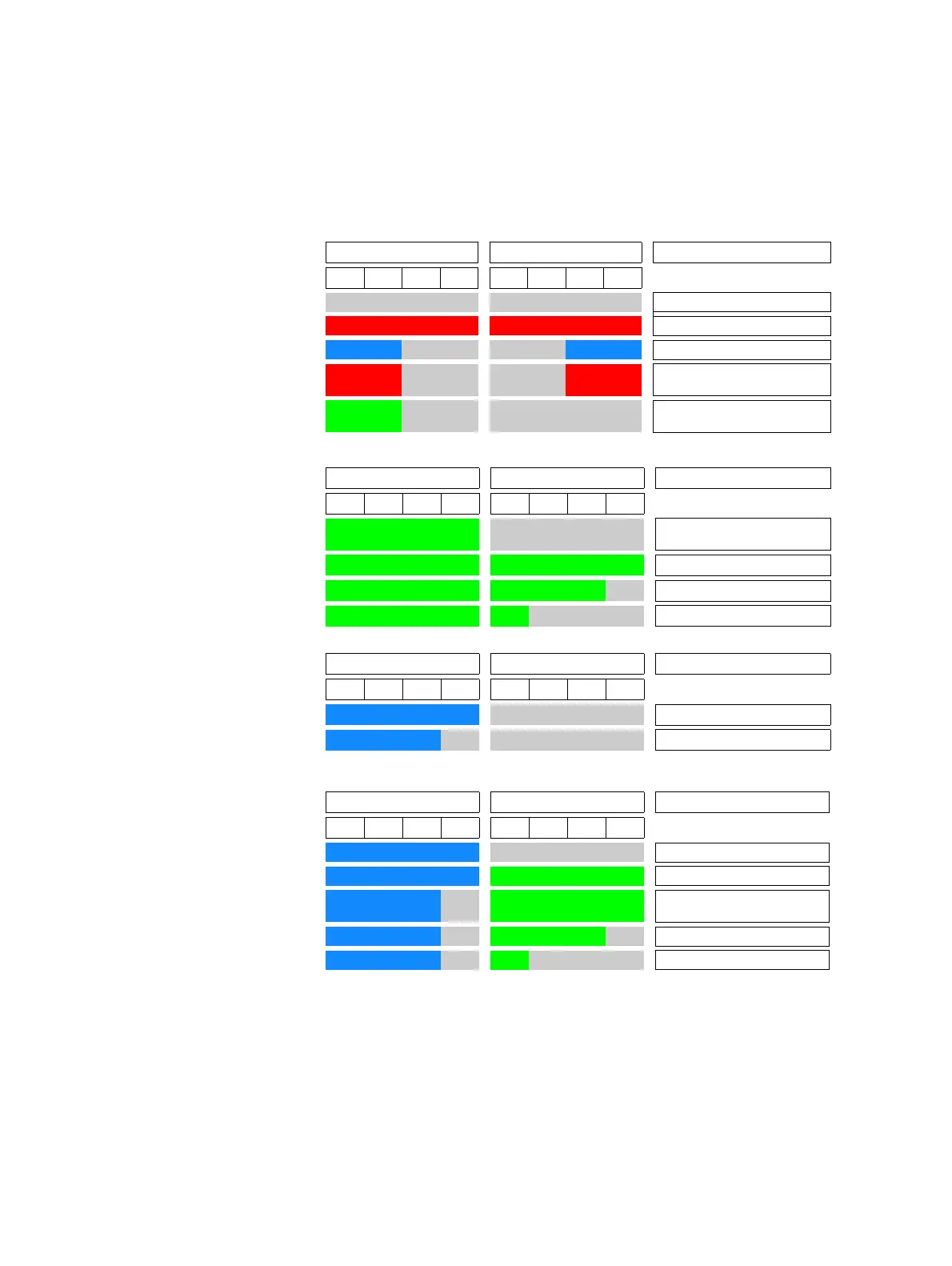

Light Emitting Diode (LED ) status displays on the base station
Depending on the device role the LEDs on the front side show different operational states.
The LEDs can have three different colours (red, blue, green) or can be off.
DECT manager and base stations
Base station operational states
DECT manager (without DECT)
DECT manager (with DECT)
Tab l e 8
LED 1 (left) LED 2 (right) Description
0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s
Power off
Device is booting
Firmware update in progress
No connection to LAN or
no IP address available/assigned
Connecting to DECT manager or
no connection to DECT manager
LED 1 (left) LED 2 (right) Description
0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s
Successful connection to DM,
synchronising
Synchronised, DECT ready
Synchronised, DECT traffic
Synchronised, DECT overload
LED 1 (left) LED 2 (right) Description
0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s
No DECT base inside active
System traffic / ongoing calls
LED 1 (left) LED 2 (right) Description
0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s 0.5 s
Not synchronised, DECT ready
Synchronised, DECT ready
Synchronised, system traffic,
no DECT traffic
Synchronised, DECT traffic
Synchronised, DECT overload
