Planning a OpenScape Cordless IP System
Determining the Installation Site
A31003-C1020-S100-03-7620, 12/2017
OpenScape Cordless IP V2, Service Documentation 43

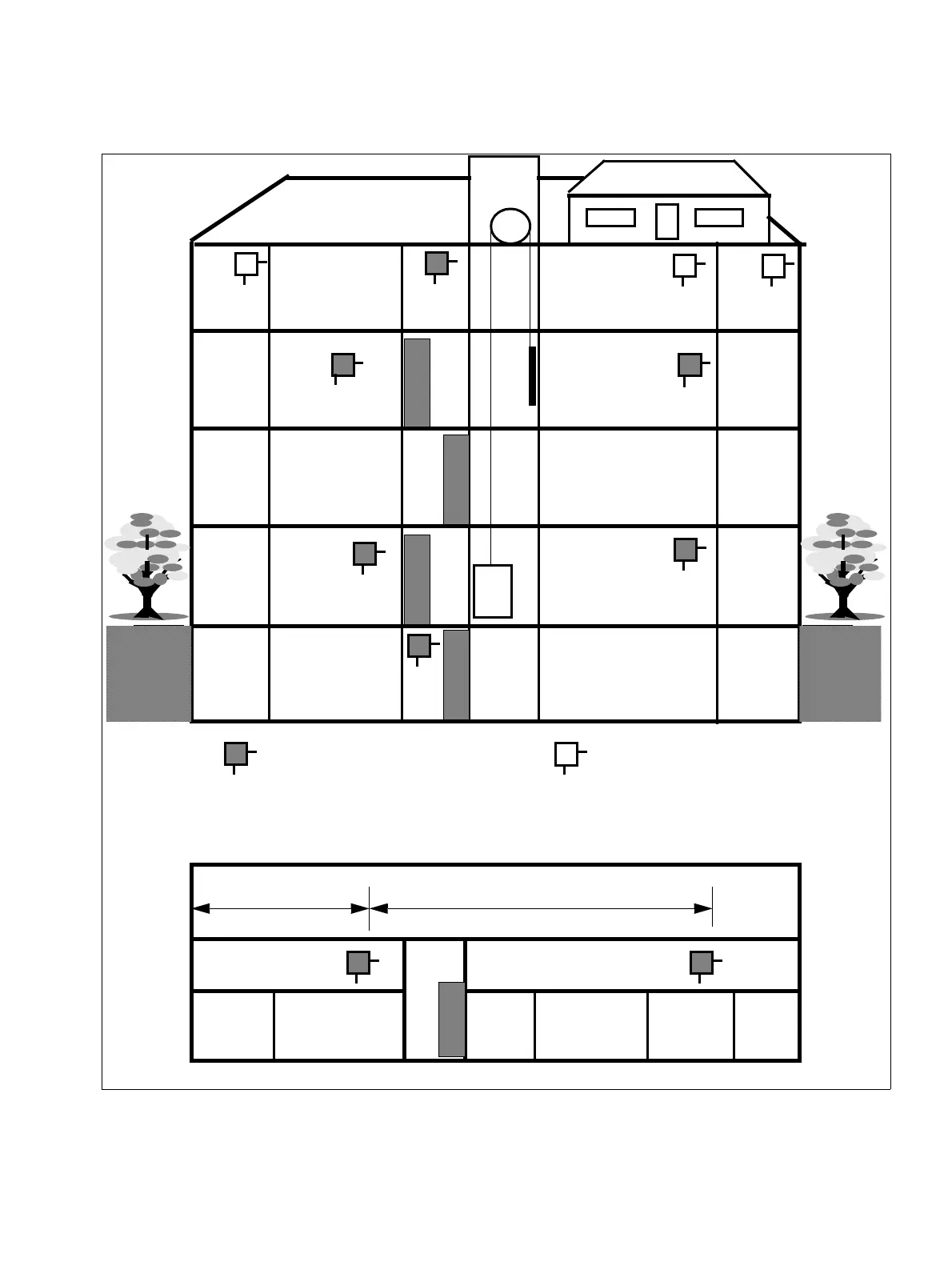

Figure 12 Base station distribution in interiors of brick and light construction materials
BS
Z
BS
BS
BS
BS
Z
BS
BS
BS
Elevator
< 25 m
BS
Z
< 50 m
BS
BS
Z
BS
BS
3rd floor
Open-plan office
Ground floor
1st floor
Basement
Open-plan office
Minimum required
Base station
Possible additional base station,
for example, for areas with higher s
concentration
Stair-
well
Elev-
ator
Stair-
well
Floor plan 2nd floor
2nd floor
