Chapter 3 LED Display Control Setting
18
3.3 Display Configuration

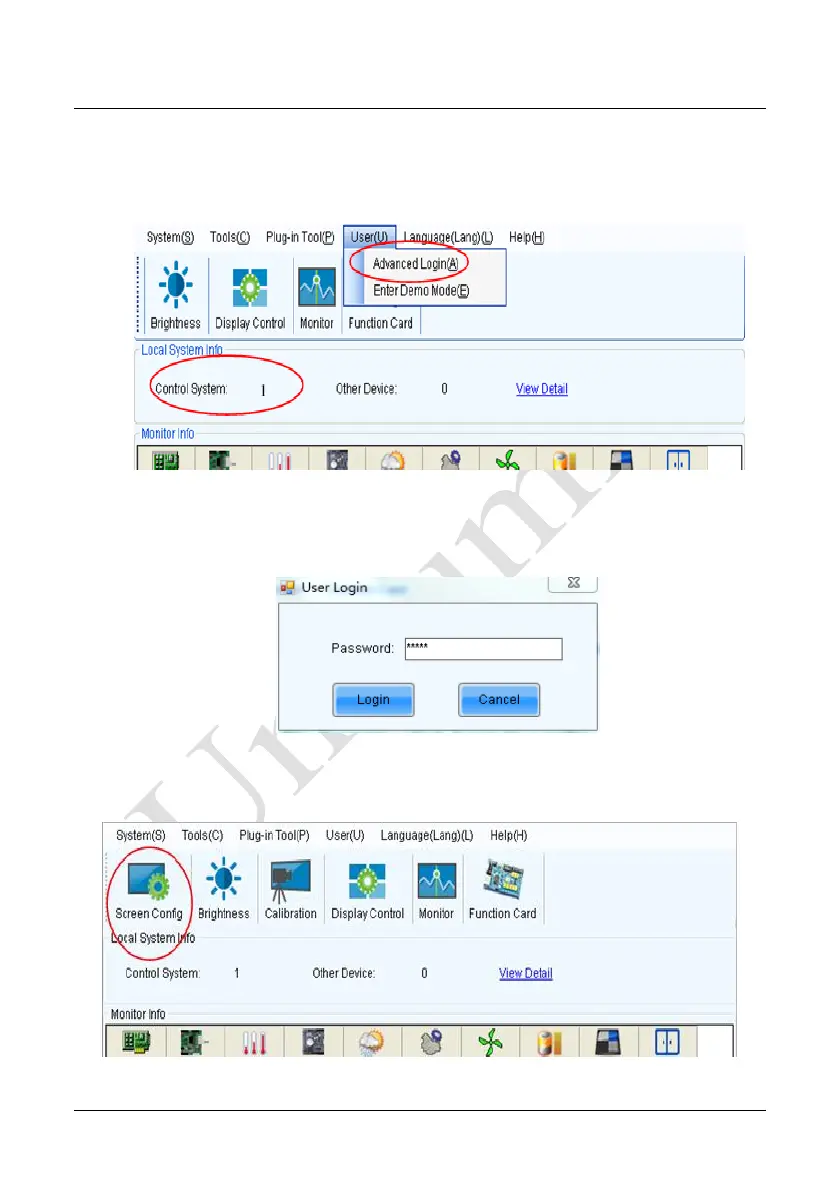

Run UniLCT-Mars. Make sure that Control System on the main window is 1. Click the
User option and select Advanced Login, as shown in Figure 3-3.
Figure 3-3 Main Window of UniLCT-Mars
Enter the initial password “admin”, as shown in Figure 3-4, to go to the advanced user
window.
Figure 3-4 User Login
After login, click Screen Config on the main window, as shown in Figure 3-5:
Figure 3-5 Main Window for Advanced User
