Chapter 3 LED Display Control Setting
29
3.5.2 Setting Coefficients for a New Module
1) Select Position of the New Module: Select Topology or List. Then select the
position of the receiving card where the new module is located. Double click the
selected position:

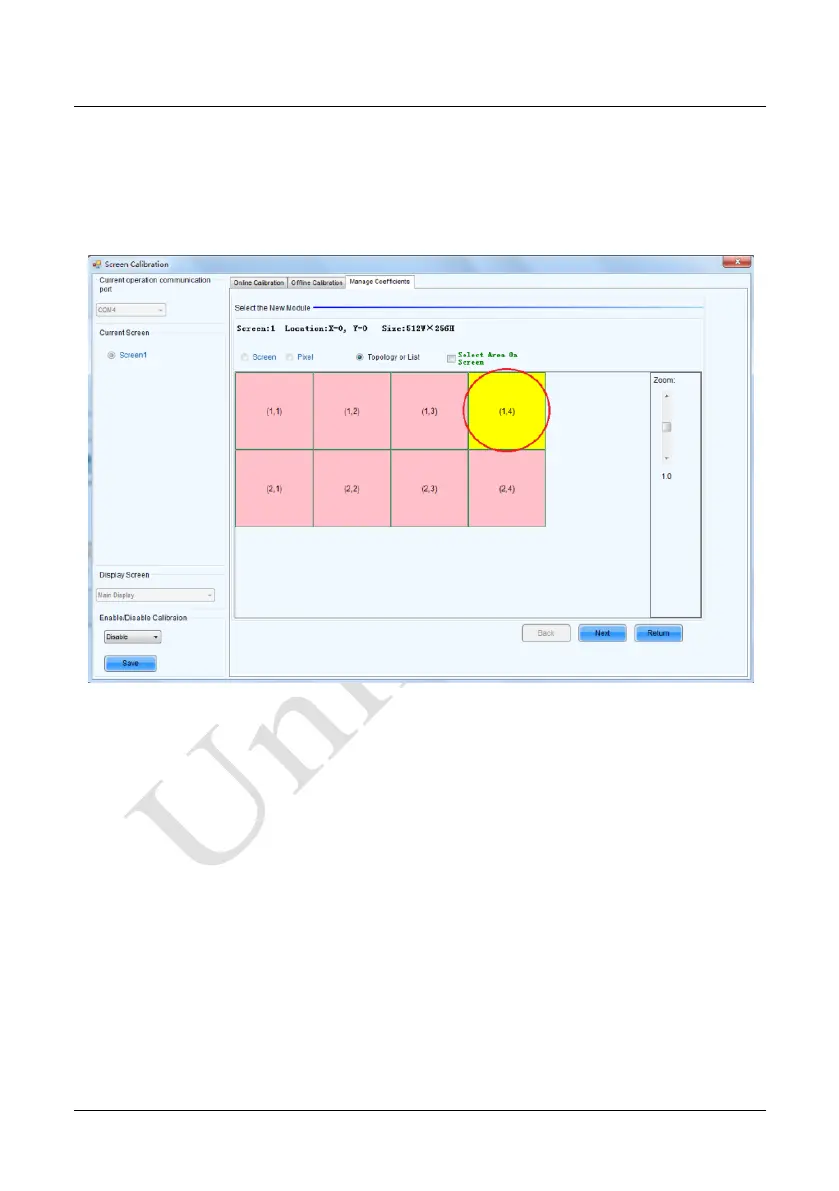

Figure 3-21 Selecting Cabinet for the New Module
