Chapter 3 LED Display Control Setting
30
2) Choose Display Mode to Modules. Select the position of the new module and
click Next.

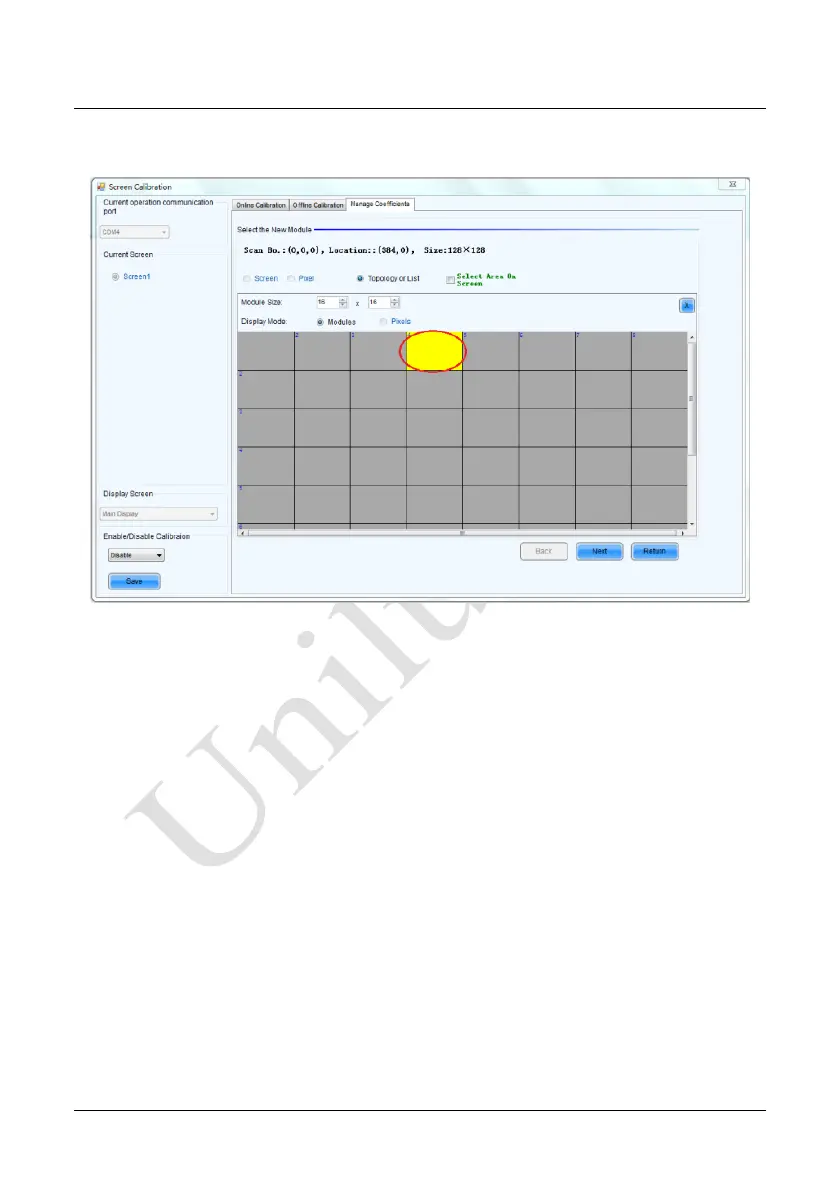

Figure 3-22 Selecting Position of New Module
Module Size：Set the size of the module in a cabinet. The software determines each
module arrangement based on module size and cabinet size.
3) Adjust the coefficients (similar to the steps of coefficient adjustment in setting
coefficients for a new receiving card). For details, refer to Step 2 and Step 3 in
Section 3.5.1).
