There are four brightness adjustment modes, namely Manual, Schedule, Auto, and
Auto Adjustment by Hardware. After adjustment is finished, click Save to HW to
save the adjustment results to the hardware.
1. Manual Adjustment
Select Manual and adjust the brightness by dragging the scroll bar below Brightness
Adjustment or directly modifying the brightness value (the maximum value is 255)
next to the scroll bar.

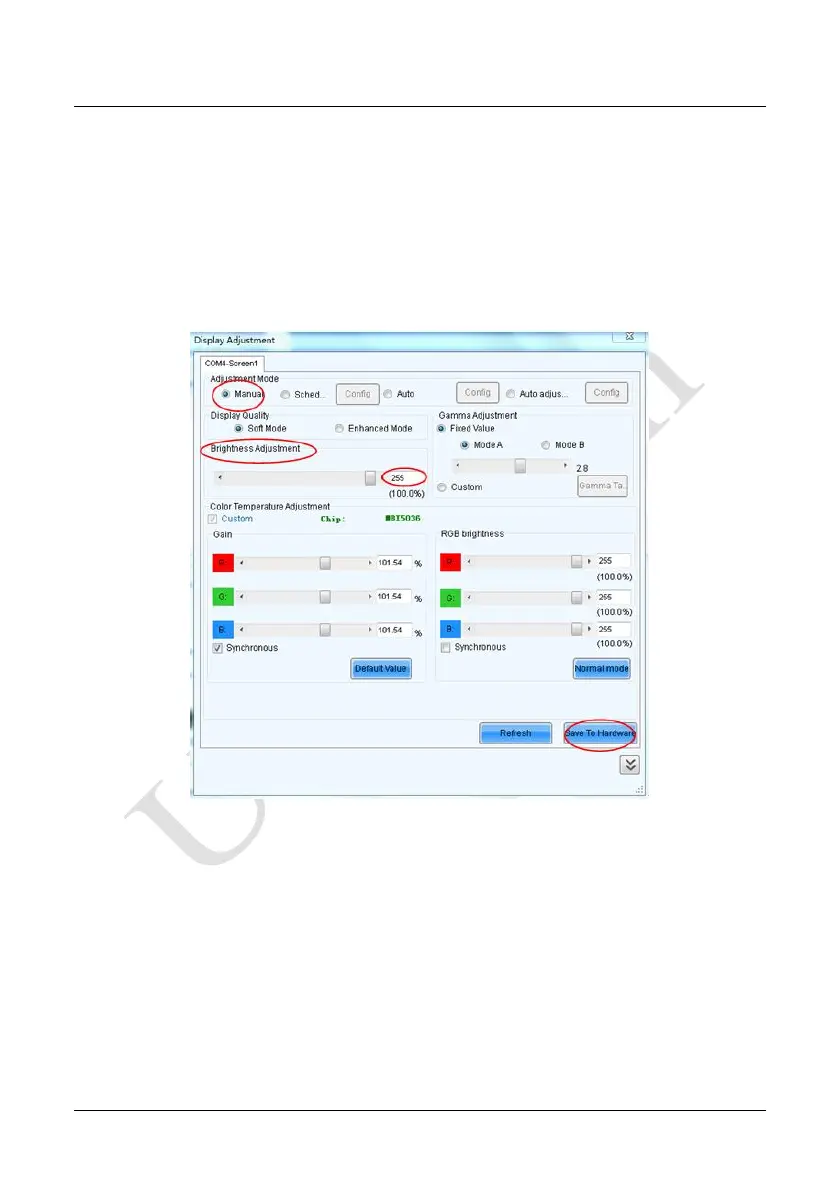

Figure 3-12 Manual Adjustment
Display Quality: Includes Soft mode and Enhanced mode. The Soft mode is
generally used for indoor LED displays while the Enhanced mode is used for outdoor
LED displays.
Gamma Adjustment: Includes Mode A and Mode B. The LED display in Mode A can
light up earlier than that in Mode B.
Gain: For chips with current gain function, adjusting the current gain can improve the
chip’s current output.
RGB brightness: Adjusts the brightness of Red (R), Green (G) or Blue (B) separately.
