6
Do not connect this wire to any existing ground wires supplied by the factory wire loom,
make the connection to the vehicle's frame directly.
BROWN WIRE—(+)2A SIREN OUTPUT
This wire is provides power to the supplied siren. Connect the Brown wire to the Red
wire of the siren. Connect the Black wire of the siren to a stable chassis ground.
RED WIRE—SYSTEM POWER (+12V) CONSTANT
The RED wire supplies power to the system. Connect this wire to a stable constant +12
volt source.
H7. 4-PIN BLACK CONNECTOR TWO-WAY TRANSCEIVER/ANTENNA MODULE

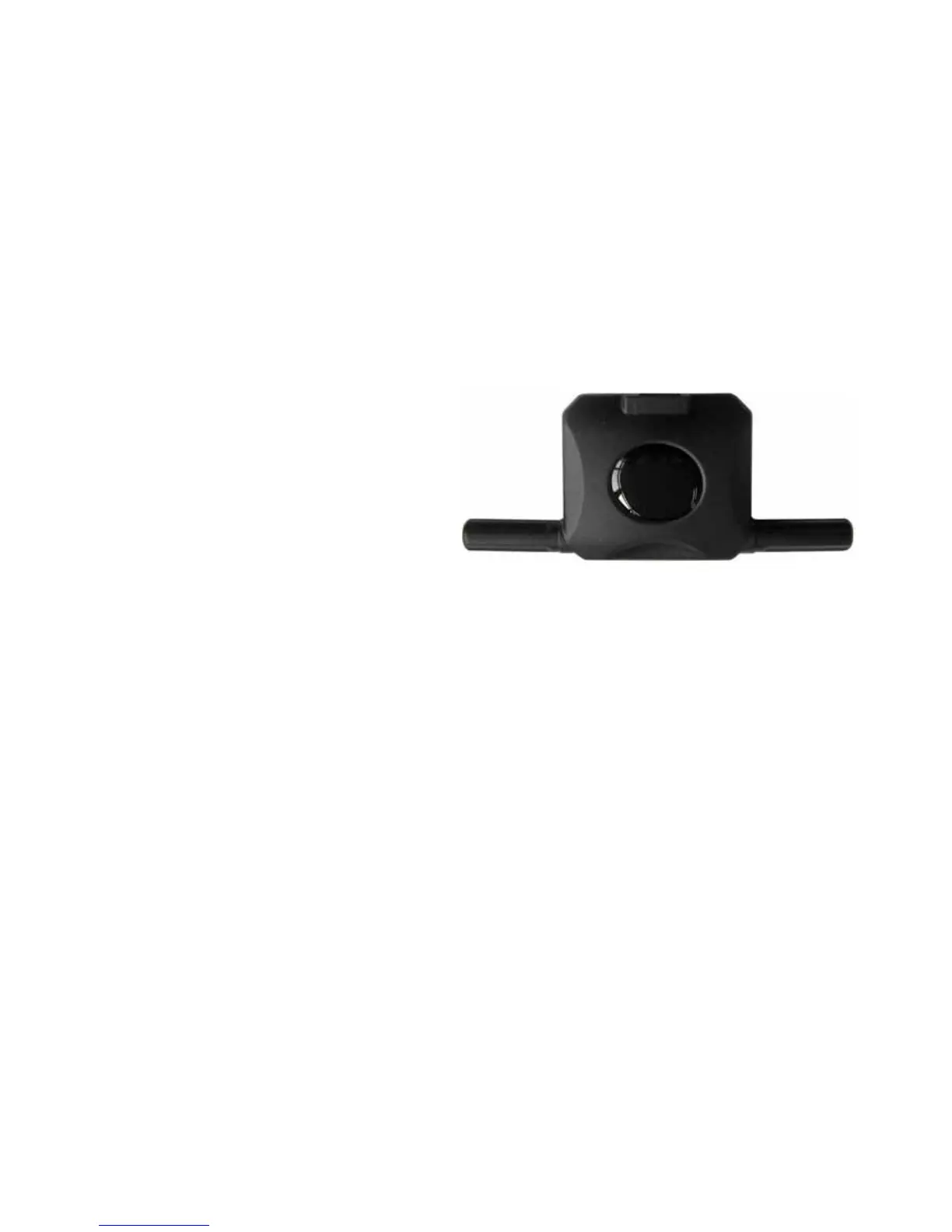

The Two-way transceiver/antenna mounting
location should be the upper left or lower left corner
of driver's windshield. For optimum range we
suggest that the antenna be mounted as shown in
picture to the right. (Antenna tip facing up)
Warning!
Do not mount in such a manner that it obstructs
The drivels view.
-Remove the protective tape backing.
-Carefully align the two-way transceiver/antenna and apply to windshield.
-Route the white connector wire behind the trim and connect to the two-way
transceiver/antenna.
-Connect the other end to the control module.
-Special considerations must be made for windshield glass as some newer vehicles
utilize a metal-shielded window glass that will inhibit or restrict RF reception. In these
vehicles, route the two ways transceiver/antenna module away from metallic shielded
window glass as far as possible.
H8. 2 PIN BLUE CONNECTOR FOR THE VALET SWITCH: (Under door on main unit)
Select a mounting location for the switch that is easily accessible to the driver of the
vehicle. The switch does not have to be concealed, however, concealing the switch is
always recommended, as this provides an even higher level of security to the vehicle.
Mount the valet switch in a hidden but accessible location. Route the valet switch wires
to the control module.
H3. 2 PIN WHITE CONNECTOR (THE LED STATUS INDICATOR):
The led indicator status should be mounted in a highly visible area such as top of the
dashboard, on top of the shifter console or on the dashboard face. Leave at least 6mm
space behind the mounting location for LED housing. Once a suitable location is chosen,
drill a 6mm hole. Run the LEO wires through the hole then press the 2 pin LED housing
