8
H6/3 PINK WIRE—(-)200mA Programmable Output
2 Steps Unlock Output (Factory default setting)
(See Alarm Feature C—1 Programming)
The 2 steps unlock feature will work for the most fully electronic door lock circuit. The
vehicle must have an electronic door lock switch (not the lock knob or key switch),
which locks and unlocks all of vehicle's doors. When wired for this feature, press the
disarm (or unlock) button one time will disarm the alarm and unlock the driver's door
only. If, press disarm (or unlock) button two times within 3 seconds, the alarm will
disarm and all doors will unlock.
Factory Security Disarm Signal Output—
This wire is designed to disarm a factory installed security system. This wire sends a
negative (-)1 seconds pulse upon a remote stag and remote door unlocking. Some
factory systems must be disarmed to allow remote starting. In most cases, this wire may
be connected directly to the factory alarm disarm wire. The correct wire will show
negative ground when the key is used to unlock the doors or trunk. This wire is usually
found in the kick panel area in the wiring harness coming into the car body from the
door.
Start Status (Shock Sensor By-Pass Control) Output-
This wire is designed to by-pass shock sensor module. This wire will supply an output at
all times the remote start is operating plus an additional 3 seconds after the remote start
unit turn off.
Key Sensor By-Pass Output—
This output is for a Key Sense wire by-pass that some Chrysler and Toyota vehicles
need to activate remote start. This wire comes on when remote start is activated and
stays on for 20 seconds.
H6/4 WHI7E / BLUE WIRE—(-)Instant Start 8 Turn Off Input—
This wire activates and turns off the remote starter each time it sees a momentary
ground signal. Normally used far testing during installation or when activating the
module from an after-market system.

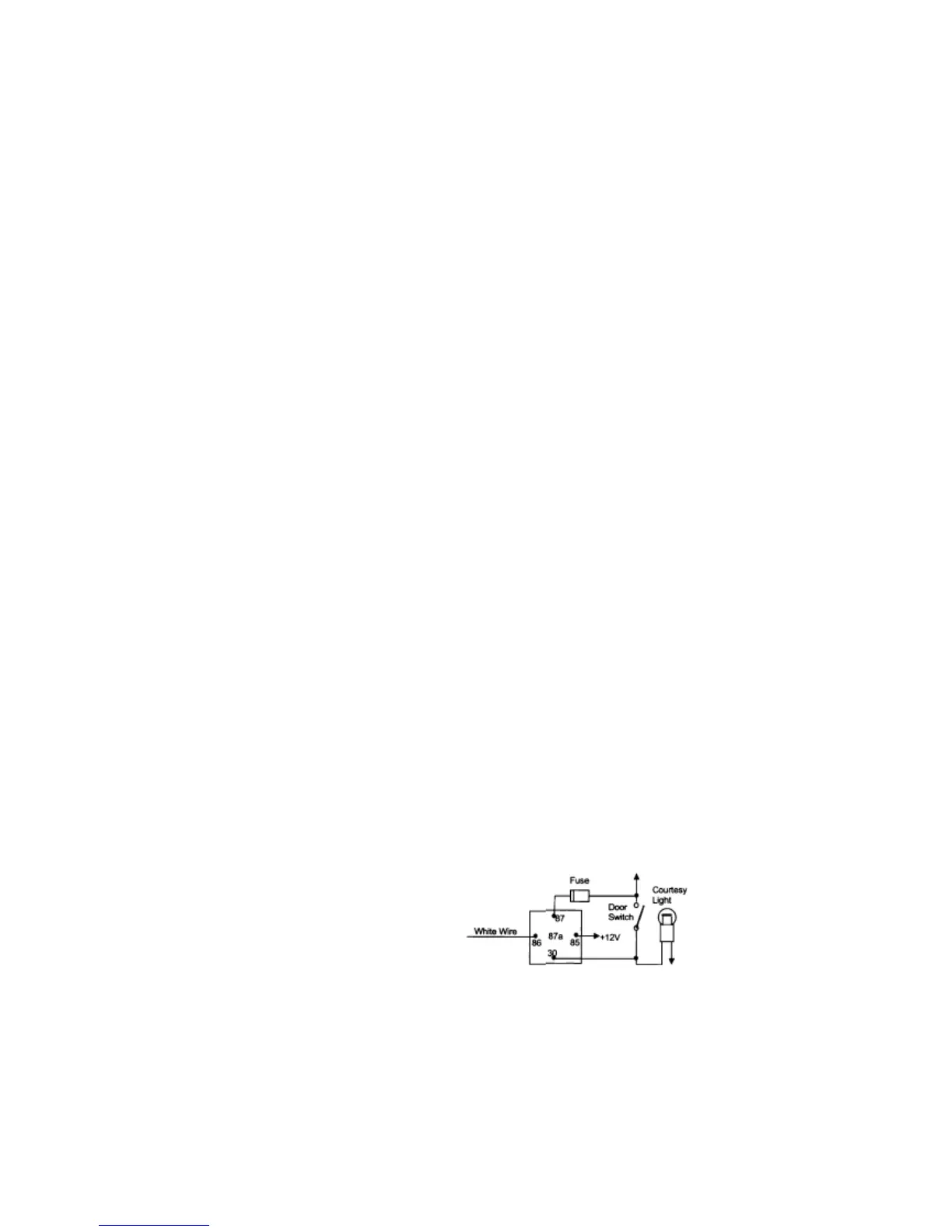

H6/5 WHITE WIRE—(-)200mA Dome Light Control Output—
This wire becomes grounded when the
dome light controls circuit active. The
current capacity of this wire is 200mA
This wire can control the operation of
the interior lights. An optional 10 Amps
relay can be used this system for
interior lights operation
a).Upon disarming, the interior lights will remain on for 30 seconds.
b).If the alarm is triggered, the interior light will flash for the same duration as the siren.
