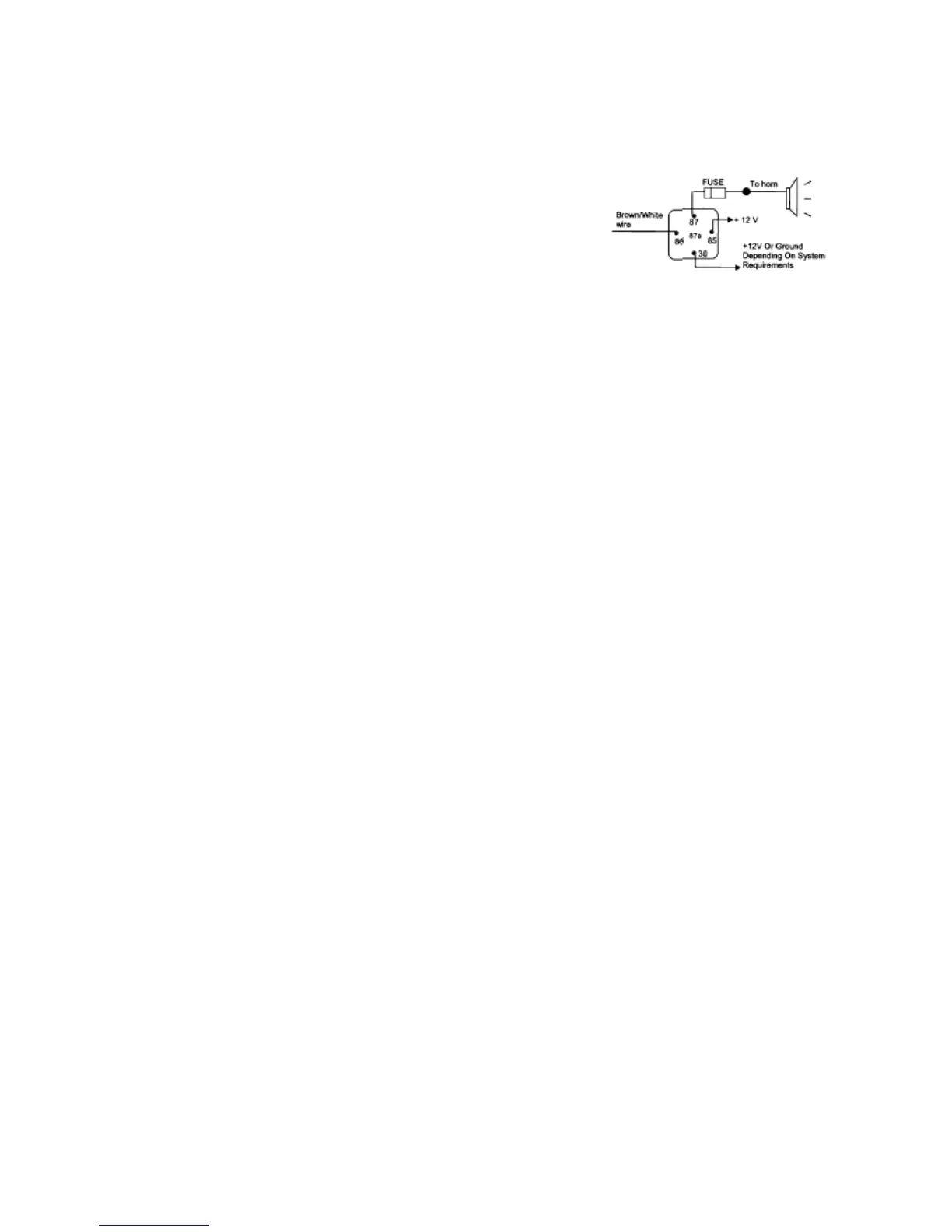

H6/6 BROWN / WHI7E WIRE—(-)200mA Programmable Output Horn Output—
(Factory default setting)
This wire is provided to use the existing vehicle’s horn as
the alarm system’s optional's warning audible device
It's a transistorized low current output, and should only be
connected to the low current ground output from the vehicle's
horn switch.When the system is triggered, the horn will sound.
Factory Security Rearm Signal Output
—
(See Alarm Feature C
—
2 Programming)
—
This output is programmable. If programmed rearm a factory installed security system.
This wire will supply a pulse whenever the remote start times out or is shut down using
the transmitter and remote door locking.
H6/7 BLACK/GREEN WIRE—(-)200mA Channel 4
See Alarm Feature C—6 Programming)
Channel 4 Output (Factory default setting，
Momentary grounded)
This wire is built-in user-programmable timer output provides a ground through this
wire. Press the transmitter and buttons at the same time. You may program the
built-in timer to send a ground signal for any time interval between 1 second and 2
minutes.
For instance, this timer output may be used to turn on the headlight with the remote
control. Also on certain BMW, Mercedes Benz, Jaguar and Volkswagen cars, you can
use this unique timed output to allow remote closure of all power window and sunroof
without the need for an external module!
H6/8 BLACK/WHITE WIRE—(-)Neutral Safety Switch Input or(-)Enable Switch Input-
When the BLACK/WHITE wire is grounded, the remote start unit is operable. When this
wire is open from ground, the remote start is disabled.
1. The optional "remote start toggle switch" can be added on to temporarily disable the
Remote Start Device, it can prevent the vehicle from being remote started accidentally.
This feature is useful if the vehicle is being serviced or stored in an enclosed area. To
disable the remote start, move the optional remote start enable toggle switch to the OFF
position. To enable the remote start, move the optional remote start enable toggle
switch to the ON position
2. If needed, this wire can connect to the PARK/NEUTRAL switch in the vehicle.
( See the TESTING YOUR INSTAI I ATIIN GUIDE)
IMPORTANT NOTE: This wire must have a "GROUND" to operate remote start
To Next Page
