UAD Powered Plug-Ins Manual - 54 - Chapter 3: Cambridge EQ
Note that the Q value increases as gain is boosted but the knob position does
not change The Q value is approached as gain increases, and reaches the
knob position at maximum gain. See Figure 11.
Type III When set to Type III, there is a Q/Gain dependency on boost and attenua-
tion. The bandwidth increases continuously as the gain is boosted and atten-
uated. The Q knob position determines the maximum Q at full gain.
Filter bandwidth is broader at lower gain settings and narrower at higher
gain settings. This can produce a smoother, more natural response when ad-
justing filter gain.
Note that the Q value increases as gain is increased but the knob position
does not change The Q value is approached as gain increases, and reaches
the knob position at maximum gain. See Figure 12.

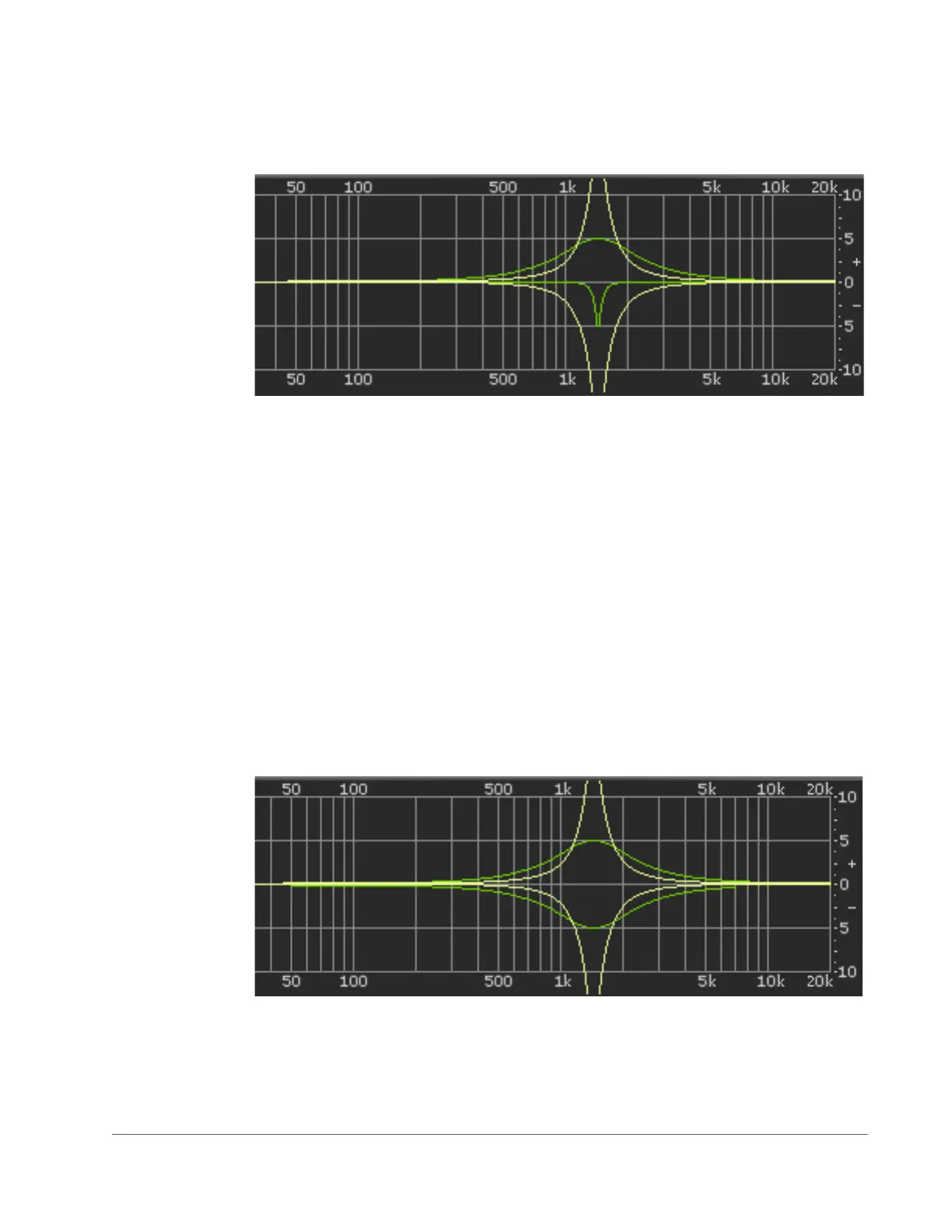

Figure 11. Parametric Type II response
Figure 12. Parametric Type III response
