8.1 Robot Arm

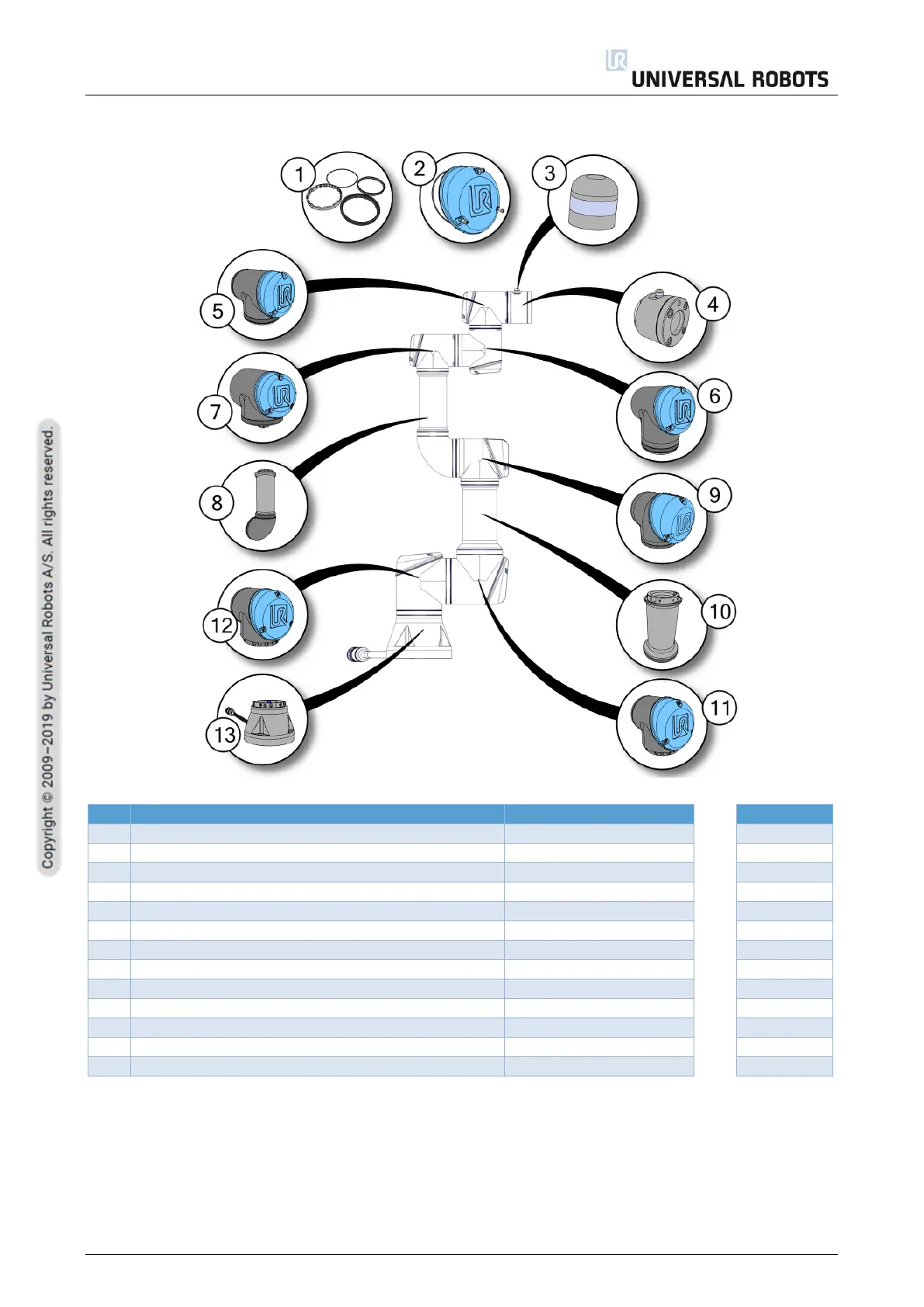

Click on the page no. in the right column to see part in detail or go to the page.
NO.
DESCRIPTION
PART NUMBER(S)
PAGE NO.
1
Sealing ring set
103703/103705/103700
147-149
2
Lid set
103413/103405/103410
150-152
3
Protective cap for tool connector
131095
153
4
Tool mount with Force/Torque sensor
124083/124085/124080
154-156
5
Wrist joint 3
124002/102414/102412
157-159
6
Wrist joint 2
124110/124111/124112
160-162
7
Wrist joint 1
124001/102413/102411
163-165
8
Lower arm assembly
N/A
166
9
Elbow joint
124011/124031/124031
167-169
10
Upper arm
N/A
170
11
Shoulder joint
124021/124031/124041
171-173
12
Base joint
124021/124031/124041
174-176
13
Base with Robot Arm cable
122083/122085/122080
177-179
Refer to Section 4.1 Robot Arm for joint name and size.
