8 | uponorpro.com

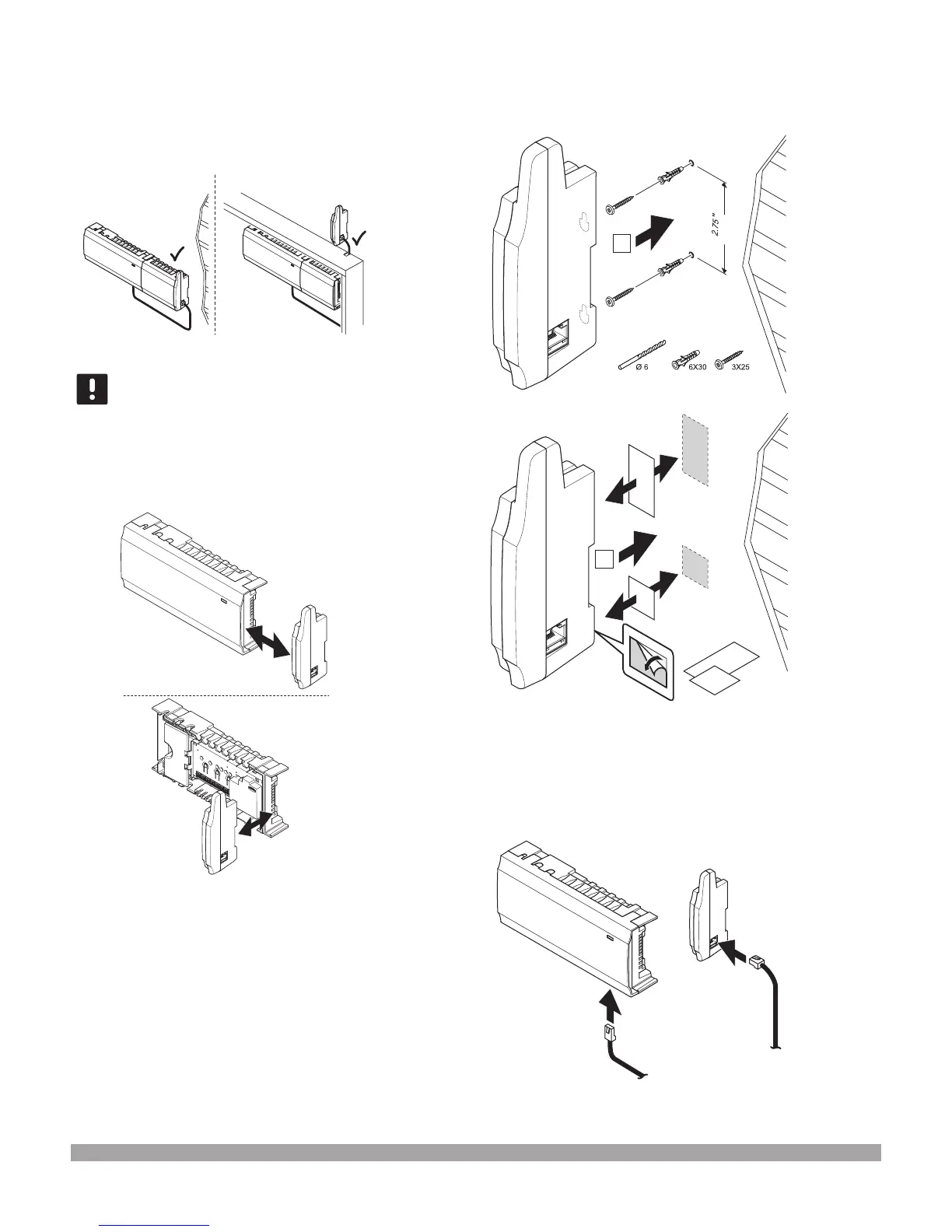

Installing the antenna
The antenna can be attached to the right-hand side of the
base unit or to the wall. If the base unit is installed inside a
metal cabinet, the entire antenna must be placed vertically
outside the cabinet, as illustrated below.
Important! The antenna must be installed
vertically for best coverage.
Attaching the antenna to a base unit
The ilustration below shows the antenna attached to the
right-hand side of the base unit.
Attaching the antenna to a wall
The illustration below shows the antenna attached to a wall
with screws (A) or double-sided adhesive strips (B).
70 mm
A
B
Connecting the antenna cable
Connect the antenna to the base unit using the supplied
antenna cable.
Figure 3-3: Antenna installation options
Figure 3-4: Attaching the antenna to a base unit
Figure 3-6: Connecting the antenna cable
Figure 3-5: Attaching the antenna to a wall
