Base unit
The base unit operates the actuators, which in turn affect the
ow of the supply water, to change the indoor temperature
using information transmitted from registered thermostats
and system parameters.
Up to six channels and eight actuators can be operated by the
base unit, which is typically located near the radiant manifolds.
The radiant illustration below shows the base unit with the
antenna and actuators.
24
VAC
24
VAC
24
VAC
Caution: Only 24 VAC Uponor actuators are
compatible with the controller.
Main characteristics
• Autobalancing energy-management function
• Electronic control of actuators
• Connection of maximum eight actuators
• Two-way communication with up to six room thermostats
• Separate relays for control of pump and boiler
• Valve and pump exercise
• Logging, backup and updates via microSD card
Options
• Expand base unit with optional expansion module (A3801160)
which adds an extra six channels and six actuator outputs
• Modular placement (detachable antenna)
• Cabinet or wall mounted (with mounting bracket or
supplied screws)
• Free placement and orientation when installing the base unit
(except the antenna which must be installed vertically)
Components
C
A
E
F
B
D
Item Description
A Wireless Base Unit (A3801165)
B Antenna
C Antenna connection cable
D MicroSD card
E Mounting bracket
F Mounting hardware

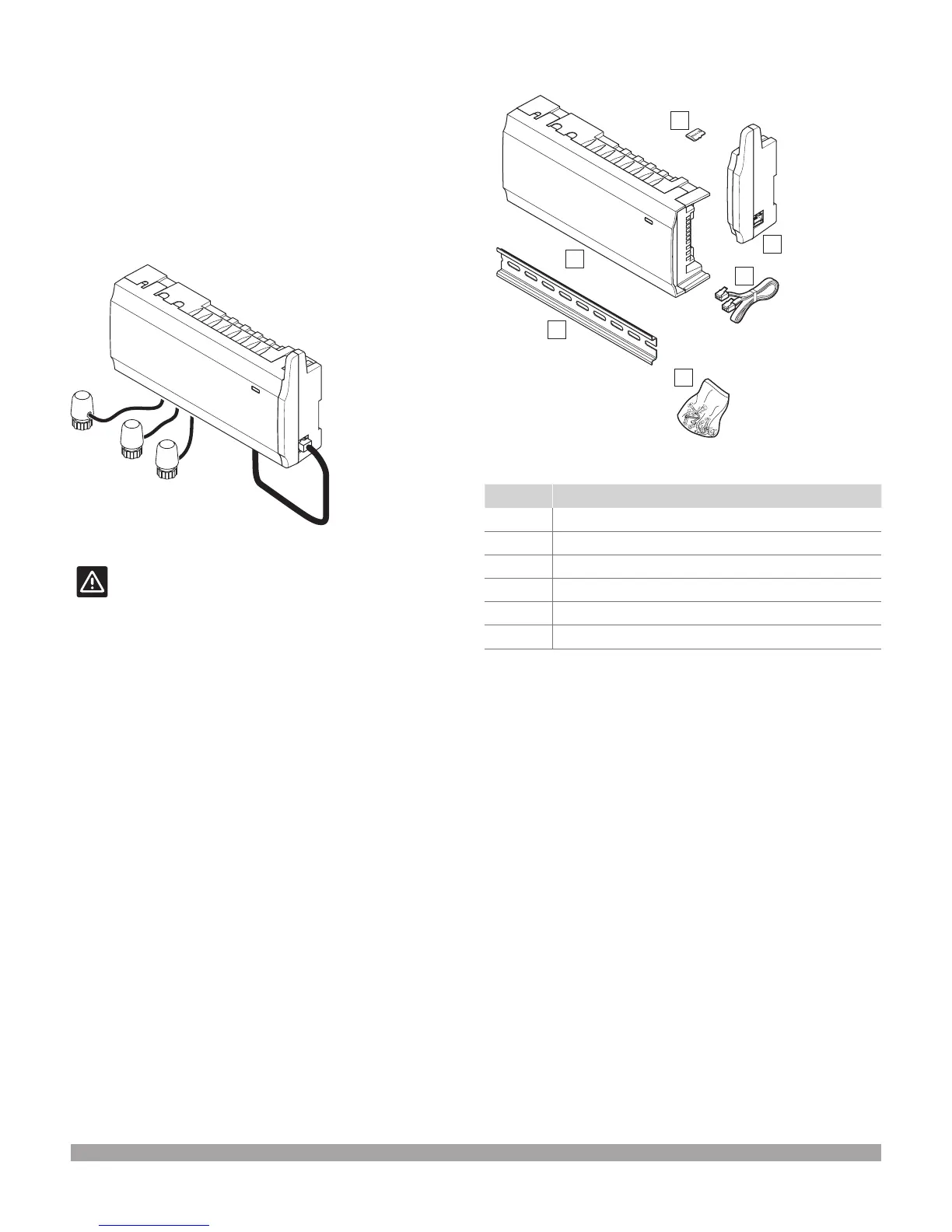

Figure 1-4: Base unit
Figure 1-5: Base unit components
