Digital thermostats
The external temperature sensor input can be used for either
a oor, outdoor or remote temperature sensor. Use the software
on the thermostat to select a control mode which corresponds to
the use of the sensor and thermostat.
1 2 3 4
ON DIP
Function
Switch
1 2 3 4
Used as a standard room
thermostat
Off Off Off Off
Used as a standard room
thermostat together with a
floor temperature sensor
On Off Off Off
Used as a standard room
thermostat, or system
device, together with
an outdoor temperature
sensor
Off On Off Off
Caution: The switches must be set before the
thermostat is registered.
Caution: The switches must be set to one of the
available functions, otherwise the thermostat
cannot be registered.
Attaching a thermostat to a wall
The thermostats come with screws, wall plugs and a wall
bracket, allowing several options for attaching to a wall.
Using a wall bracket (recommended)
The illustration below shows thermostat mounting hole positions
and how to attach it to a wall using a wall bracket.
60 mm
1
3
2
Using a screw and wall plug
The illustration below shows how to attach the thermostat to a
wall using one screw and wall plug.
3
4
5
2
Using an adhesive strip (not included)
The illustration below shows how to attach the thermostat
to a wall using an adhesive strip.
60x10
4
5
1
3

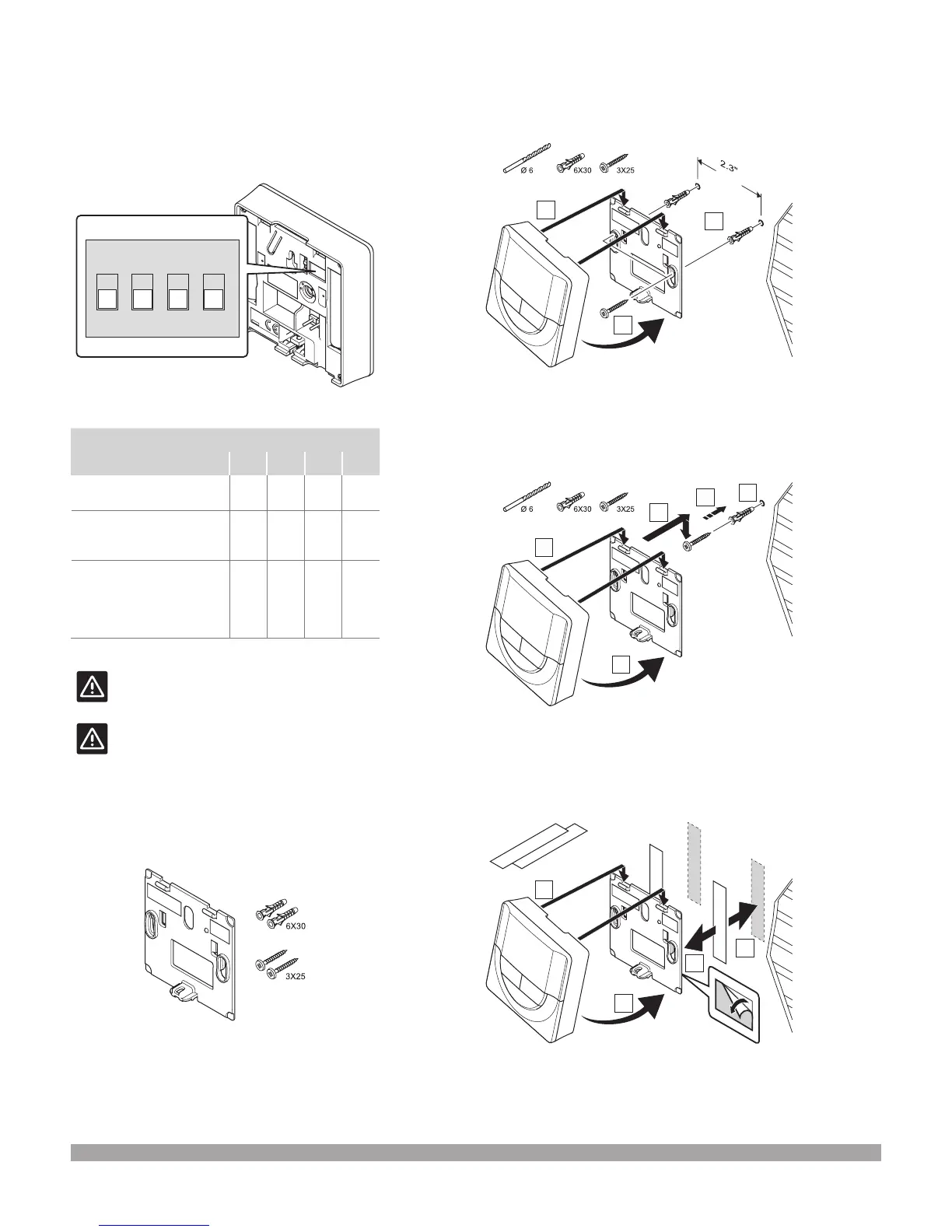

Figure 4-4: Switch location
Figure 4-6: Wall bracket installation
Figure 4-7: Screw and wall plug installation
Figure 4-8: Adhesive strip installation
Figure 4-5: Attaching a thermostat to a wall
