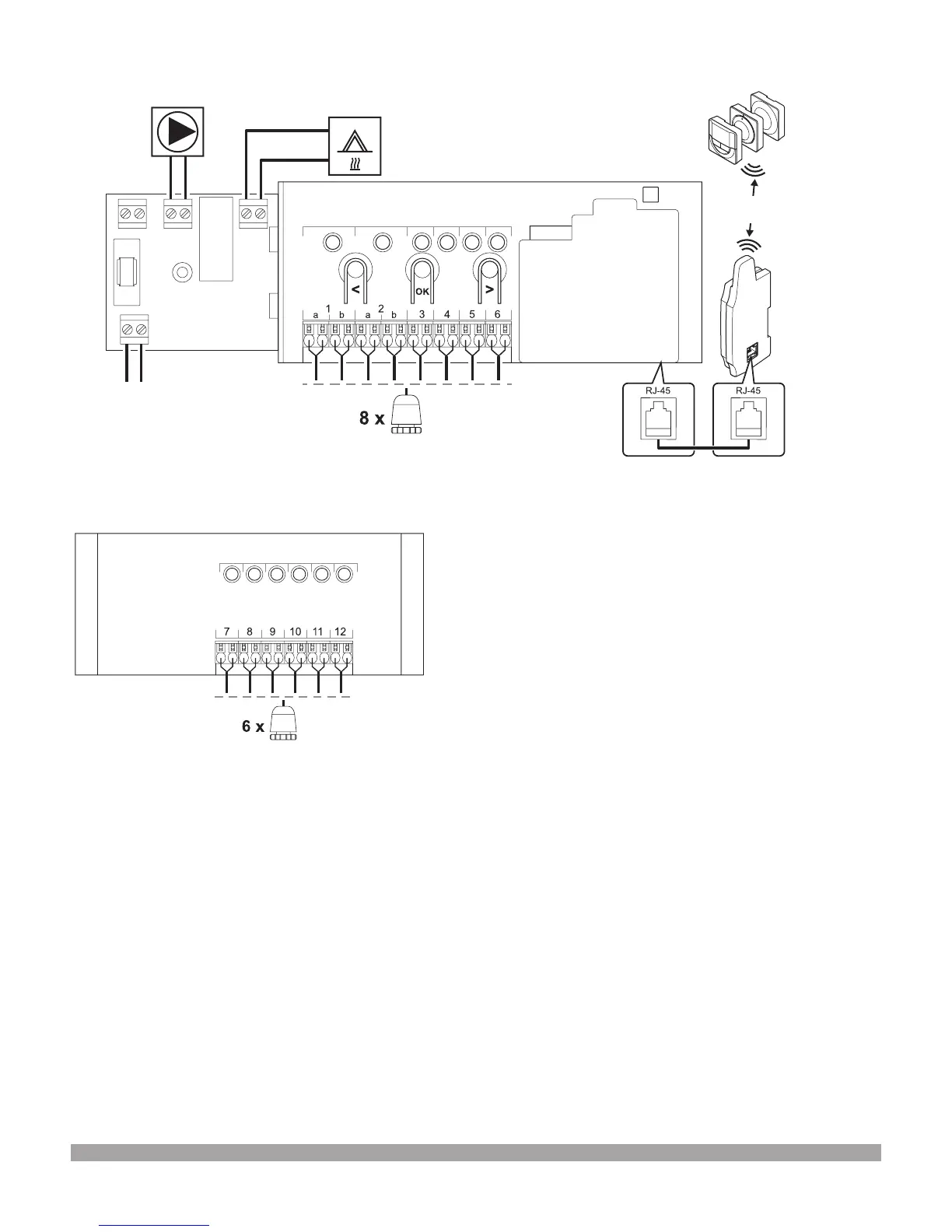

Climate Control Zoning System II installation and operation manual | Appendix A – Technical data l 37
Base unit wiring
Pump relay
Boiler/heat source
24
VAC
24 VAC
>
15.75"
(40 cm)
Expansion module wiring
24
VAC
Figure A-2: Base unit wiring
Figure A-3: Expansion module wiring
